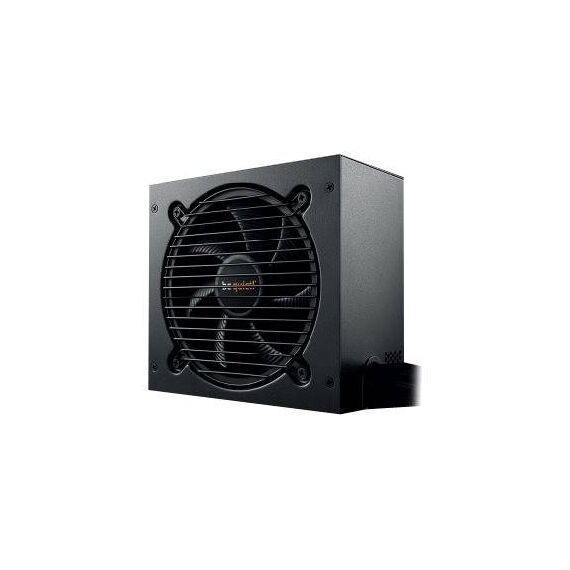

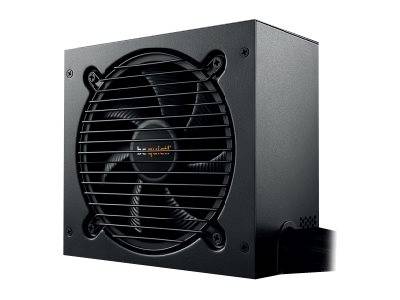

be quiet! Pure Power 11 / Power supply (internal) / ATX12V 2.4 / 80 PLUS Gold / AC 100-240 V / 400 Watt / active PFC / Europe | BN292
Please sign in so that we can notify you about a reply
be quiet! Pure Power 11 / Power supply (internal) / ATX12V 2.4 / 80 PLUS Gold / AC 100-240 V / 400 Watt / active PFC / Europe | BN292
|
Description Whether you're assembling a very quiet system, upgrading an existing PC, or building a multi-GPU gaming system, your build will benefit from this PSU series that has an amazing combination of features. be quiet! Pure Power 11 / Power supply (internal) | BN292Special Features
|
Product Specification
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V 2.4 |
| PSU Form Factor | ATX |
| Localisation | Europe |
| Input Voltage | AC 100-240 V |
| Frequency Required | 50 - 60 Hz |
| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 8 pin +12V with detachable 4 pin section ¦ 2 x 8 pin PCI Express power with detachable 2 pin section ¦ 2 x 4 PIN internal power ¦ 5 x 15 pin Serial ATA power ¦ 1 x 4 PIN mini-power connector |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 400 Watt |
| Output Current | +3.3V - 24 A ¦ +5V - 15 A ¦ +12V1 - 24 A ¦ +12V2 - 20 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A |
| Efficiency | 92% |
| 80 PLUS Certification | 80 PLUS Gold |
| Cooling System | 120 mm fan |
| Features | Overheat protection, over current protection, over voltage protection, overpower protection, undervoltage protection, dual 12V rails, short-circuit protection, DC-DC technology |
| Compliant Standards | TUV, CCC, FCC, RoHS, cTUVus, ERP, EAC |
| ENERGY STAR | Yes |
| Service & Support | Limited warranty - 5 years |
| Width | 15 cm |
| Depth | 15 cm |
| Height | 8.6 cm |
Features - be quiet! - BN292
More Details
Product Code
04:281508
EAN Code
4260052186336
Manufacturer
be quiet!
