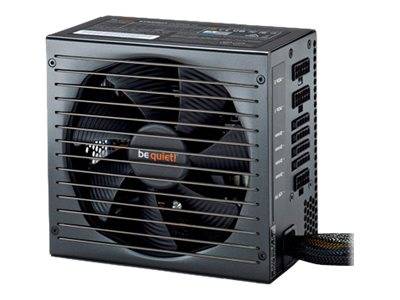

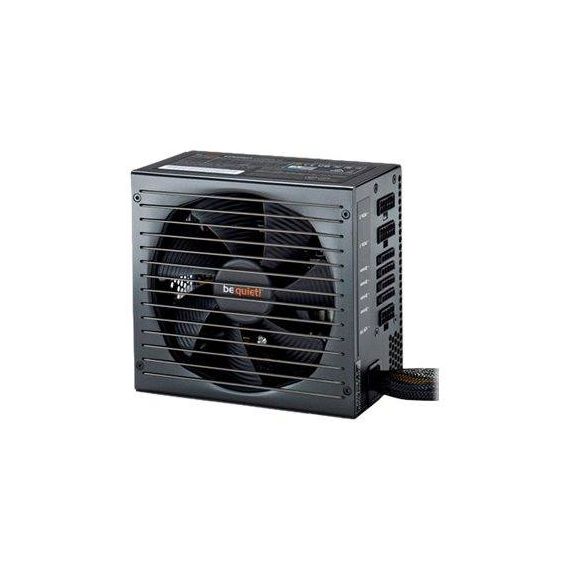

Be quiet! Straight Power 10 500W CM / Power supply (internal) / ATX12V 2.4/ EPS12V 2.92 / 80 PLUS Gold / AC 100-240 V / 500 Watt / active PFC / black | BN234

bequiet-BN234-Power-supplies-for-pc

Hover over an image to enlarge

140.39
(Including VAT)
Available
+
BN234
Product Code:T380561
EAN Code:4260052183670
Manufacturer:be quiet!
Delivery
Payment options
Our advantages

24 months warrantyGuarantee for all purchased goods in our online store is 12 months

Return and exchange - no problemYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.

Different payment methodsPay orders in convenient ways: cash to the courier, by bank transfer on the receipt of the bank or by credit card right at the time of the order.

Best priceWe are proud of our prices, hundreds of customers check them every day, which give a choice to our online store!


Free Store
Pickup

Delivery within 2-4
business days

2 Years Warranty

Be quiet! Straight Power 10 500W CM / Power supply (internal) / ATX12V 2.4/ EPS12V 2.92 / 80 PLUS Gold / AC 100-240 V / 500 Watt / active PFC / black | BN234

Description

Be quiet! Straight Power 10 500W CM provides a new level of silent performance for systems that demand whisper-quiet operation without facing the slightest compromise in power quality. The German team has updated and designed even more premium features into this generation of the Straight Power series, which make the Straight Power 10 500W CM more silent than ever and a clear '€˜Best Choice'€™ for new systems and as a replacement in existing systems.

Special Features

  • Virtually inaudible operation achieved through a broad array of meticulous optimizations, including use of a be quiet! SilentWings 3 135mm fan
  • SilentWings 3 fan features an advanced fan frame, an airflow-optimized fan blade, fluid-dynamic bearing with copper core and a high-quality 6-pole motor for less vibration
  • The funnel-shaped fan opening of the PSU case is significant big and allows high airflow intake
  • 500 Watts of continuous power with stable four 12V-rail design
  • 80PLUS Gold certification and up to 93% power conversion efficiency
  • Cable management with extra long cable reach simplifies component installation and reduces annoying clutter, increasing airflow and improving cooling in even the largest PC cases

Product Specification

Device Type Power supply - active Power Factor Correction (PFC) - internal
Specification Compliance ATX12V 2.4/ EPS12V 2.92
Colour Black
Input Voltage AC 100-240 V
Frequency Required 50 - 60 Hz
Power Output Connectors Details 1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 8 pin +12V with detachable 4 pin section ¦ 2 x 8 pin PCI Express power with detachable 2 pin section ¦ 3 x 4 PIN internal power ¦ 9 x 15 pin Serial ATA power ¦ 1 x 4 PIN mini-power connector
Output Voltage +3.3, +5, ±12 V
Power Capacity 500 Watt
Output Current +3.3V - 24 A ¦ +5V - 24 A ¦ +12V1 - 18 A ¦ +12V2 - 18 A ¦ +12V3 - 18 A ¦ +12V4 - 18 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A
Efficiency 93%
80 PLUS Certification 80 PLUS Gold
Included Accessories Cable ties, thumbscrews
Cables Included Power cable - external - 1.5 m
MTBF 100,000 hours
Cooling System 135mm fan
Features Over current protection, over voltage protection, overpower protection, undervoltage protection, cable management, short-circuit protection, Multi-GPU Technologies Supported, 4 x 12V rail, thermal protection, fluid dynamic bearing cooling fan
Compliant Standards TUV, BSMI, CB, FCC, RoHS, WEEE, cTUVus, ERP
ENERGY STAR Yes
Service & Support Limited warranty - 5 years
Max Operating Temperature 40 °C
Sound Emission 10.3 dBA
Width 15 cm
Depth 16 cm
Height 8.6 cm
Weight 2.18 kg
Shipping Width 24.8 cm
Shipping Depth 32.8 cm
Shipping Height 10.2 cm
Shipping Weight 2.77 kg

More Details

Product Code:
T380561
EAN Code:
4260052183670
Manufacturer:
be quiet!
