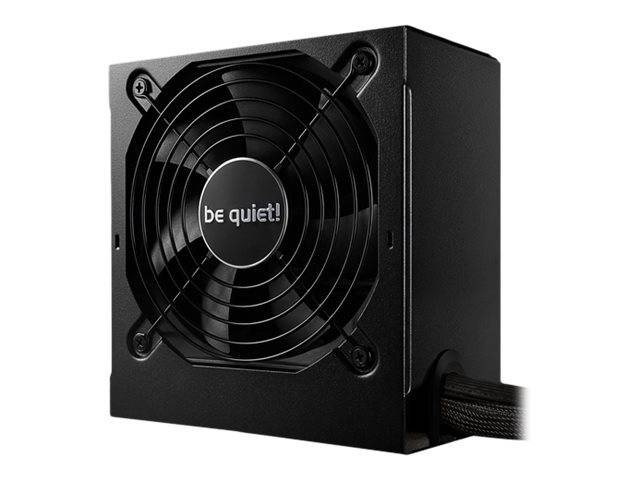

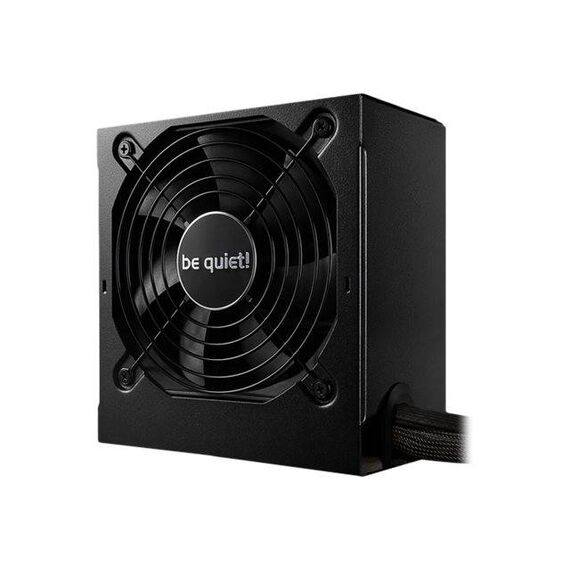

be quiet! System Power 10 650W / Power supply (internal) / ATX12V 2.52/ EPS12V 2.92 / 80 PLUS Bronze / 650 Watt / active PFC / Europe | BN328
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V 2.52/ EPS12V 2.92 |
| PSU Form Factor | ATX |
| Localisation | Europe |
| Power Device | Power Device |
| Input Voltage | AC 200-240 V |
| Frequency Required | 50 Hz |
| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 2 x 8 pin PCI Express power with detachable 2 pin section ¦ 5 x 15 pin Serial ATA power ¦ 2 x 4 PIN internal power |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 650 Watt |
| Output Current | +3.3V - 24 A ¦ +5V - 15 A ¦ +12V1 - 22 A ¦ +12V2 - 18 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A |
| Efficiency | 88.5% |
| Power Factor (PF) | 0.95 |
| 80 PLUS Certification | 80 PLUS Bronze |
| Miscellaneous | Miscellaneous |
| MTBF | 100,000 hours |
| Cooling System | 120 mm fan |
| Features | Single 12V rail, temperature controlled fan, DC-DC technology |
| Compliant Standards | ERP, EAC, TUV Rheinland |
| Environmental Standards | Environmental Standards |
| ENERGY STAR | Yes |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | Environmental Parameters |
| Max Operating Temperature | 40 °C |
| Dimensions & Weight | Dimensions & Weight |
| Width | 15 cm |
| Depth | 14 cm |
| Height | 8.6 cm |
Features - be quiet! - BN328
More Details
Product Code
04:416298
EAN Code
4260052189085
Manufacturer
be quiet!
