be quiet! System Power 9 500W / Power supply (internal) / ATX12V 2.4 / 80 PLUS Bronze / AC 200-240 V / 500 Watt / active PFC / black | BN246

Brand: be quiet!

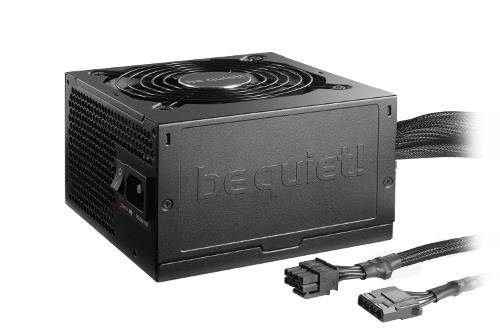

be quiet! System Power 9 500W Power supply BN246

Write a review

CODE (SKU):

BN246

€73.59

€87.57 inc. VAT

Out of stock

Add to wish list Ask a question

Product CodeT380699 EAN Code4260052186053 Manufacturerbe quiet!

Find similar

Delivery

Payment options

Description
Features
Reviews

be quiet! System Power 9 500W / Power supply (internal) / ATX12V 2.4 / 80 PLUS Bronze / AC 200-240 V / 500 Watt / active PFC / black | BN246

Description

be quiet! System Power 9 offers great be quiet! reliability and quietness for price-conscious PC builders.

be quiet! System Power 9 500W / Power supply (internal) | BN246

Special Features

Very quiet operation
Proven reliability for CPU and GPU
Equipped with a wealth of advanced technology
A complete range of safety features

Product features

Very quiet operation
System Power 9 is equipped with a temperature-controlled fan. It provides you with the low noise operation that be quiet! is famous for, built into an entry-level system.
Proven reliability for CPU and GPU
System Power 9 provides stable and dependable power for CPU and GPU. It is equipped with two independent 12V-rails and supports several graphics cards with two PCI express connectors for multi-GPU systems.
Equipped with a wealth of advanced technology
The PSU is equipped with DC-to-DC conversion for tight voltage regulation, even under heavy cross-loading conditions. This ensures reliable operation and makes it ready for the next generation of processors and graphics cards.
A complete range of safety features
Top component protection with a full suite of safety functions provide the ultimate in secure operation.

Product Specification

Device Type	Power supply - active Power Factor Correction (PFC) - internal
Specification Compliance	ATX12V 2.4
PSU Form Factor	ATX
Colour	Black
Input Voltage	AC 200-240 V
Frequency Required	50 Hz
Power Output Connectors Details	1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 8 pin +12V with detachable 4 pin section ¦ 2 x 8 pin PCI Express power with detachable 2 pin section ¦ 6 x 15 pin Serial ATA power ¦ 2 x 4 PIN internal power
Output Voltage	+3.3, +5, ±12 V
Power Capacity	500 Watt
Output Current	+3.3V - 24 A ¦ +5V - 15 A ¦ +12V1 - 24 A ¦ +12V2 - 20 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A
Efficiency	87% at 20% Load, 86% at 100% Load, 89% at 50% Load
Power Factor (PF)	0.95
80 PLUS Certification	80 PLUS Bronze
Cables Included	Power cable 1.5 m
MTBF	100,000 hours
Cooling System	120 mm fan
Features	Sleeved cables, overheat protection, over current protection, over voltage protection, overload protection, undervoltage protection, dual 12V rails, short-circuit protection, temperature controlled fan, DC-DC technology, sleeve bearing cooling fan
Compliant Standards	TUV, CB, RoHS, WEEE, ERP, RCM, CU
ENERGY STAR	Yes
Service & Support	Limited warranty - 3 years
Max Operating Temperature	40 °C
Sound Emission	28.2 dBA
Width	15 cm
Depth	14 cm
Height	8.6 cm
Weight	1.92 kg
Shipping Width	26.8 cm
Shipping Depth	19.5 cm
Shipping Height	9.7 cm
Shipping Weight	2.16 kg
