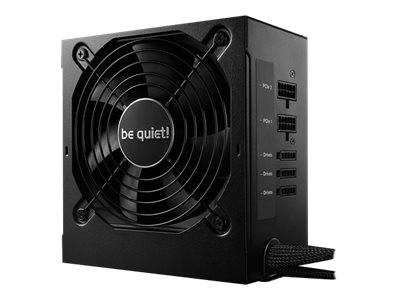

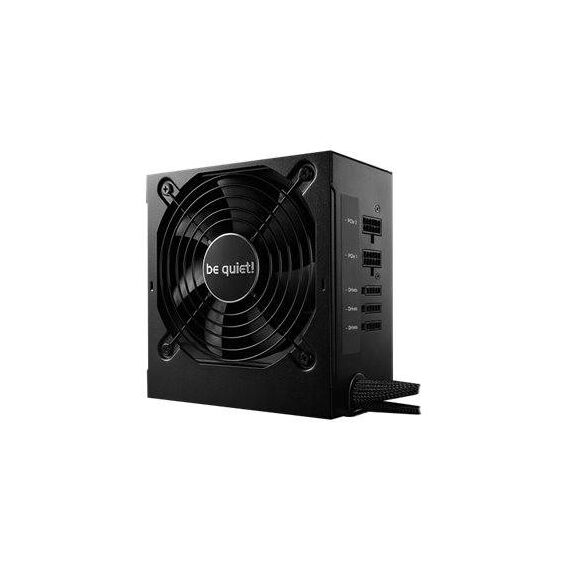

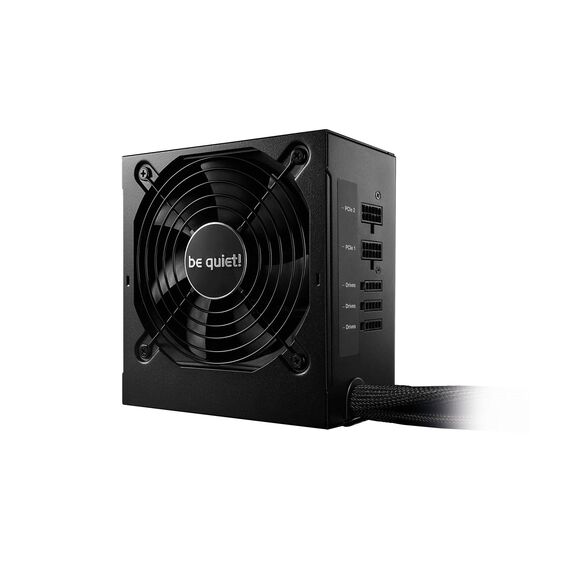

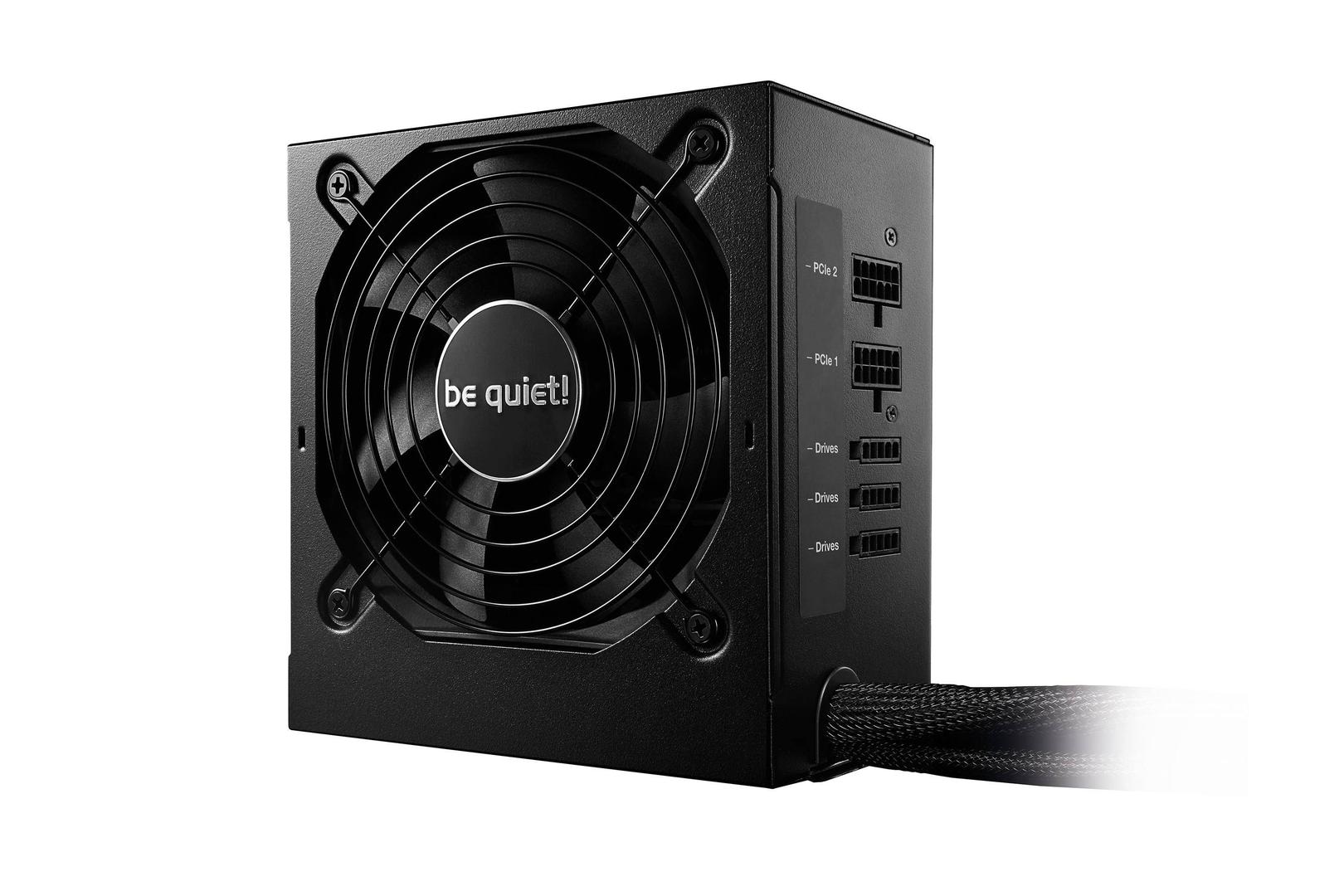

be quiet! System Power 9 600W CM / Power supply (internal) / ATX12V 2.51/ EPS12V 2.92 / 80 PLUS Bronze / AC 200-240 V / 600 Watt / active PFC / Europe | BN302
Please sign in so that we can notify you about a reply
be quiet! System Power 9 600W CM / Power supply (internal) / ATX12V 2.51/ EPS12V 2.92 / 80 PLUS Bronze / AC 200-240 V / 600 Watt / active PFC / Europe | BN302
Description
Specially designed by be quiet! with the cost-conscious PC builder in mind - the System Power 9, featuring true be quiet! reliability with two 12V-rails for rock-solid voltage stability. System Power 9's combination of power and quietness for a PSU of its class and efficiency is far beyond ordinary, making it possible for you to build cost-effective and reliable systems - a key differentiator in an era of nearly identical commodities.
be quiet! System Power 9 600W CM / Power supply (internal) | BN302
Special Features
- Very quiet operation
- DC-to-DC power conversion technology~
- Full suite of safety protections
Product Specification
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V 2.51/ EPS12V 2.92 |
| PSU Form Factor | ATX |
| Localisation | Europe |
| Input Voltage | AC 200-240 V |
| Frequency Required | 50 Hz |
| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 4 x 8 pin PCI Express power with detachable 2 pin section ¦ 10 x 15 pin Serial ATA power ¦ 2 x 4 PIN internal power |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 600 Watt |
| Output Current | +3.3V - 24 A ¦ +5V - 15 A ¦ +12V1 - 28 A ¦ +12V2 - 22 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A |
| Efficiency | 89% |
| Power Factor (PF) | 0.95 |
| Modular Cable Management | Yes |
| 80 PLUS Certification | 80 PLUS Bronze |
| MTBF | 100,000 hours |
| Cooling System | 120 mm fan |
| Features | Overheat protection, over current protection, over voltage protection, overpower protection, undervoltage protection, dual 12V rails, short-circuit protection, Multi-GPU Technologies Supported, temperature controlled fan, DC-DC technology, semi-modular |
| Compliant Standards | ERP, EAC, TUV Rheinland |
| ENERGY STAR | Yes |
| Service & Support | Limited warranty - 3 years |
| Max Operating Temperature | 40 °C |
| Sound Emission | 28.1 dBA |
| Width | 15 cm |
| Depth | 14 cm |
| Height | 8.6 cm |
Features - be quiet! - BN302
More Details
Product Code
T380761
EAN Code
4260052187234
Manufacturer
be quiet!
