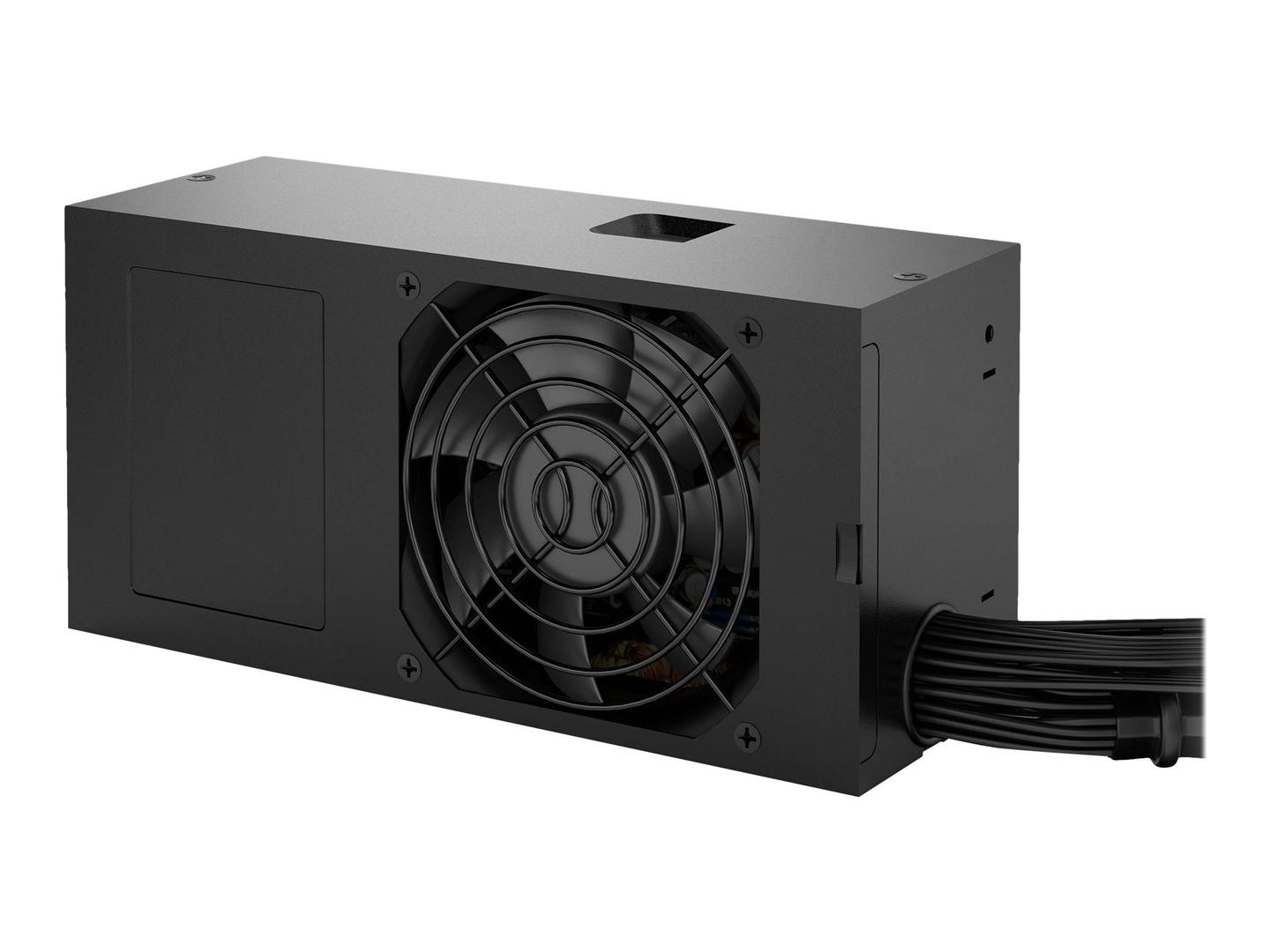

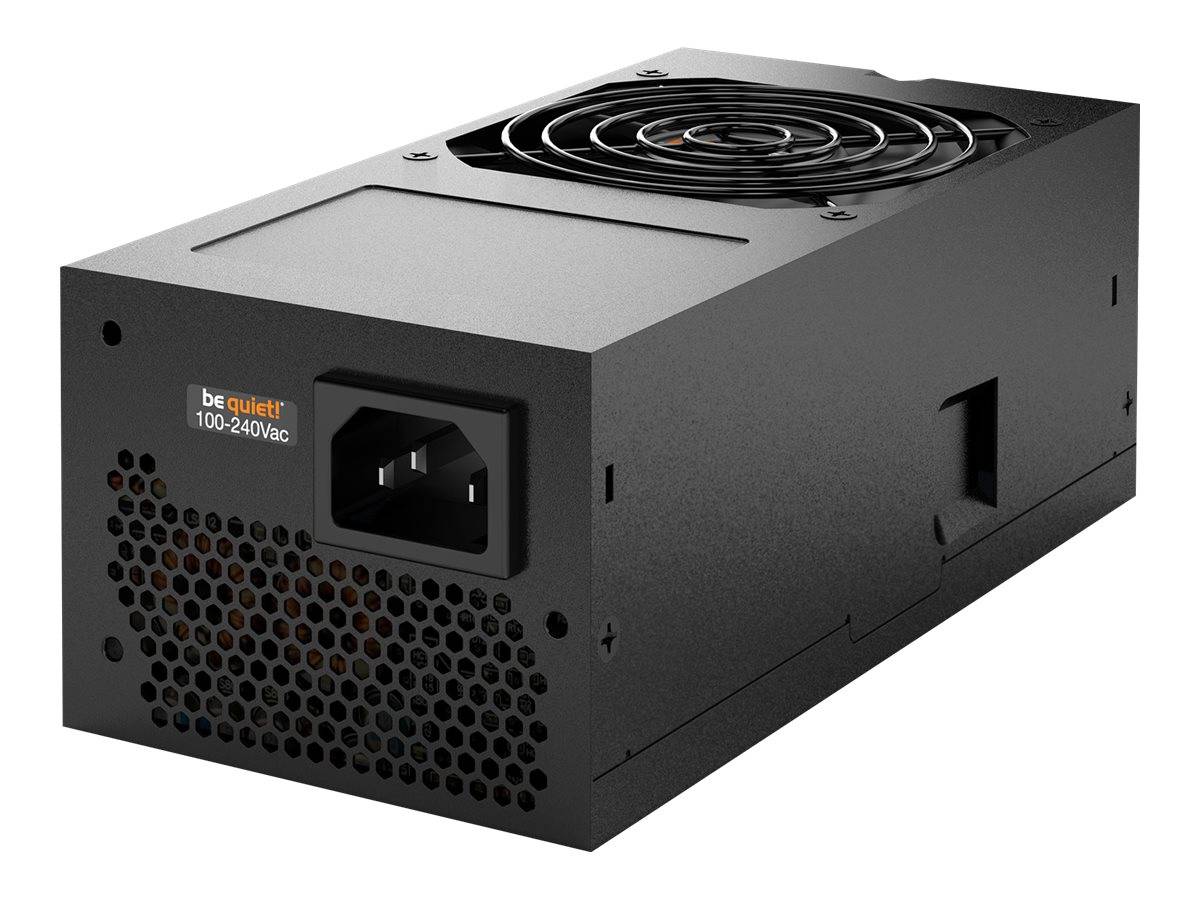

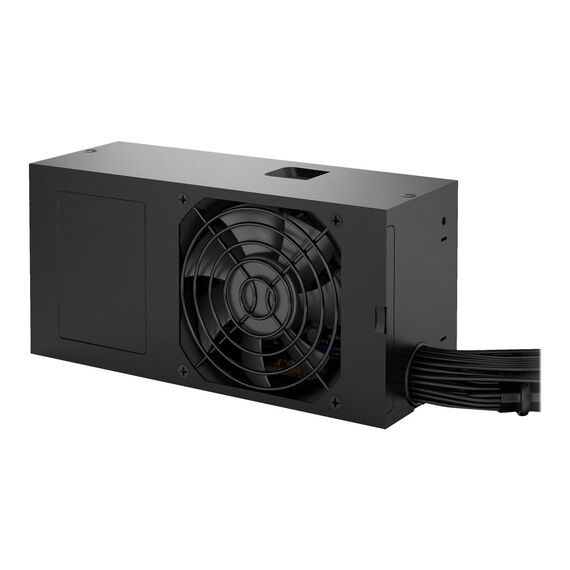

be quiet! TFX Power 3 / Power supply (internal) / TFX12V 2.52/ EPS12V 2.92 / 80 PLUS Bronze / AC 100-240 V / 300 Watt / active PFC / Europe | BN322

BN322
63.91
(76.05 inc. VAT)
Availability: 8 item(s)
Standard DeliveryStandard delivery within 3 to 8 business days.
Delivery
Payment options
Product Code07:120944 EAN Code4260052188286 Manufacturerbe quiet!

Product Features

  • 80 PLUS Bronze certification
    The 80 PLUS Bronze certification of TFX Power 3 300W Bronze with an efficiency rating of up to 88.3% is convincing evidence of this PSU's power saving operation.
  • Strong single 12v rail
    The 12V rail design supports high stability as the CPU receives its power through an independent rail. For demanding peripherals like a graphics card, a PCIe connector is included. This makes the TFX Power 3 300W Bronze the ideal PSU for all who strive for enough power to support small systems at low noise.
  • Quiet and safe
    The temperature-controlled fan ensures a quiet operation and produces little wasted heat. Since TFX Power 3 300W Bronze meets the latest safety requirements, it defends the PC system against overcurrents, over- and undervoltage, short circuit, overloads and comparable failures.

Special Features

  • Certified 80 PLUS Bronze efficiency (up to 88.3%)
  • Strong 12V-rail and PCIe graphics support
  • 300W of continuous power
  • One PCI express connector for GPU card support
  • High-quality temperature-controlled 80mm fan for low-noise operation of max. 29.1dB(A)
  • Sleeved or flat black cables up to 60cm long
  • Meets the latest safety and efficiency requirements
  • Standby draw less than 0.14 watts

Product Specification

Device Type Power supply - active Power Factor Correction (PFC) - internal
Specification Compliance TFX12V 2.52/ EPS12V 2.92
PSU Form Factor TFX
Localisation Europe
Power Device Power Device
Input Voltage AC 100-240 V
Frequency Required 50 - 60 Hz
Power Output Connectors Details 1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x 8 pin PCI Express power with detachable 2 pin section ¦ 2 x 4 PIN internal power ¦ 3 x 15 pin Serial ATA power ¦ 1 x 4 PIN mini-power connector ¦ 1 x power 4 pin ATX12V connector
Output Voltage +3.3, +5, ±12 V
Power Capacity 300 Watt
Output Current +3.3V - 16 A ¦ +5V - 16 A ¦ +12V1 - 25 A ¦ -12V - 0.3 A ¦ +5VSB - 2.5 A
Efficiency 88.3%
80 PLUS Certification 80 PLUS Bronze
Miscellaneous Miscellaneous
Cooling System 80 mm fan
Features Overheat protection, over current protection, over voltage protection, overpower protection, undervoltage protection, short-circuit protection, single 12V rail
Compliant Standards ErP Ready, EAC, TUV Rheinland
Environmental Standards Environmental Standards
ENERGY STAR Yes
Manufacturer Warranty Manufacturer Warranty
Service & Support Limited warranty - 3 years
Environmental Parameters Environmental Parameters
Sound Emission 29.1 dBA
Dimensions & Weight Dimensions & Weight
Width 8.5 cm
Depth 17.5 cm
Height 6.5 cm

Features - be quiet! - BN322

More Details
Product Code
07:120944
EAN Code
4260052188286
Manufacturer
be quiet!
