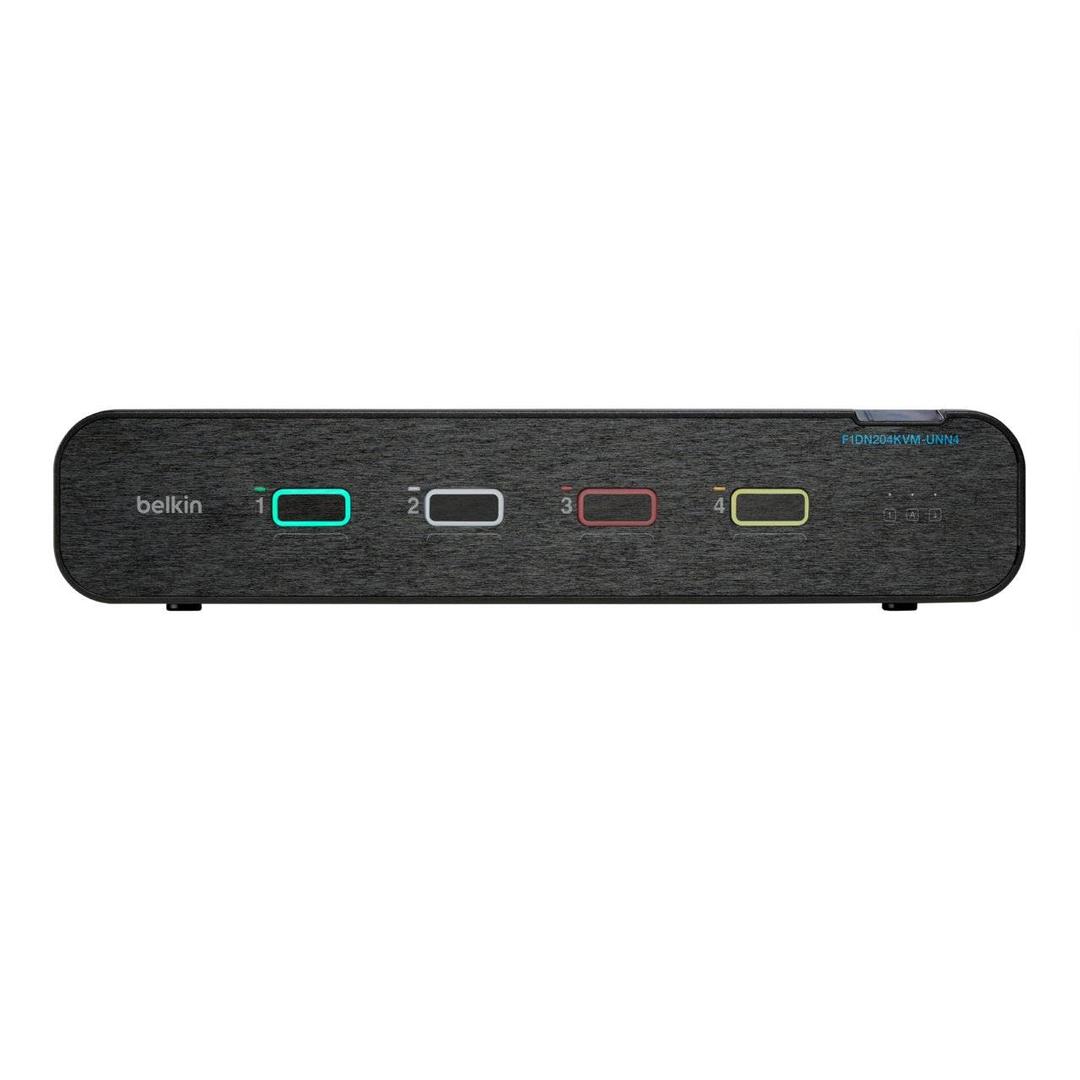

Belkin Universal Secure Dual-Head / 2nd Generation / KVM / audio switch / 4 x KVM / audio / 1 local user / desktop / TAA Compliant | F1DN204KVM-UNN4

Product Features

• Meets the highest standards for cybersecurity
  Ideal for highly sensitive applications that demand isolation between different network security enclaves. The Belkin Universal 2nd Gen Secure KVM Switches utilize optical data diodes and peripheral emulation on each channel to help prevent data leakage between computers while maintaining strict air-gap isolation, even when sharing peripherals. An 8th order elliptical audio filter protects against ultrasonic attacks.
• Universal video compatibility with combo connector and internal conversion
  DisplayPort/HDMI combo connectors on each input and output allow the same KVM to accommodate systems with DisplayPort, HDMI, and DVI video outputs and modern and legacy monitors, eliminating the need, cost, and uncertainties with external converters. This flexibility enables IT managers to deploy the same, secure KVM switch across their network and prolong the useful life of the KVM simply by matching the appropriate Belkin cable with each connected system and monitor. Cutting-edge video performance delivers up to 4K resolution and 60 Hz refresh on each display.

Special Features

• Common Criteria Certified to NIAP Protection Profile PSD 4.0
• Combo connector video support for up to 4K (3840 x 2160) @60 Hz refresh
• Supports TAA combo and video cables for easy deployment
• Supports up to two host computers
• Supports two displays for the user
• CAC and Audio freeze functionality
• Dedicated processors with emulators for every port: Isolated port paths for video, audio, and peripherals prevent data leaks between computers
• Unidirectional data paths: optical data diodes prevent peripherals from being used to breach systems
• Display security: protected display interface prevents data leakage via the monitor
• Analog audio via 3.5 mm jack with ultrasonic audio filtering
• Peripheral management: USB device detection prevents unauthorized peripheral usage
• Active anti-tampering and secure labeling: holographic tamper-evident product label provides visual indication and prevention of tampering
• Fast switching: no keyboard or mouse delays when switching ports, minimal video delay
• Secure packaging: tamper-evident packaging ensures product is not tampered with during transport
