Biostar A320MH / 6.X / motherboard / micro ATX / Socket AM4 / AMD A320 Chipset / USB 3.1 Gen 1 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | A320MH
Product Specification
| Product Type | Motherboard - micro ATX |
| Chipset Type | AMD A320 |
| Processor Socket | Socket AM4 |
| Max Processors Qty | 1 |
| Compatible Processors | Athlon, A series, Ryzen (Maximum TDP 95 Watt) |
| Max Size | 32 GB |
| Technology | DDR4 |
| Bus Clock | 2400 MHz, 1866 MHz, 2133 MHz, 2667 MHz, 2933 MHz |
| Supported RAM Integrity Check | Non-ECC, ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC887 |
| Compliant Standards | DirectX, High Definition Audio |
| Network Controller | Realtek RTL8111H |
| Network Interfaces | Gigabit Ethernet |
| Expansion Slots | 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 (x16/x8 mode) ¦ 2 x PCIe 3.0 x1 |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 |

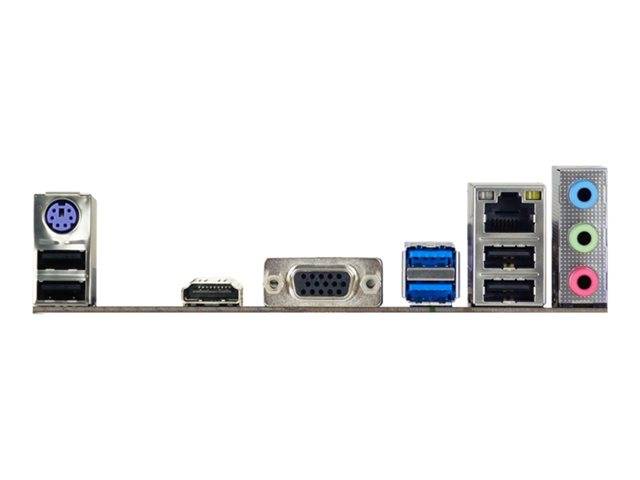

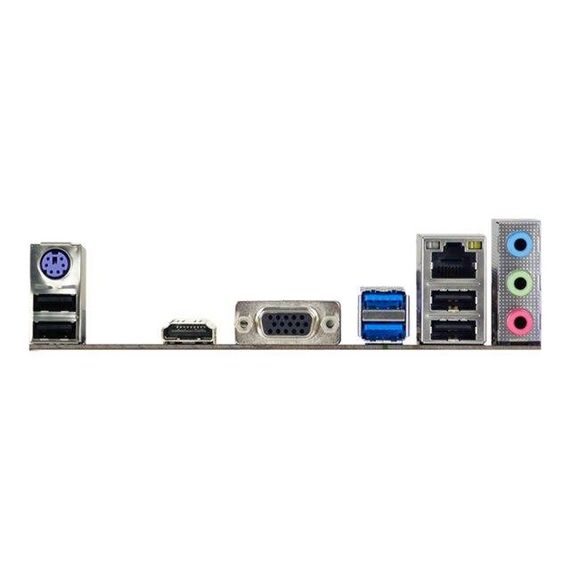

| Interfaces | 1 x LAN (Gigabit Ethernet) ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x VGA ¦ 1 x HDMI ¦ 2 x USB 3.1 Gen 1 ¦ 4 x USB 2.0 ¦ 1 x PS/2 mouse |
| Internal Interfaces | 2 x USB 2.0 - header ¦ 1 x USB 3.1 Gen 1 - header ¦ 1 x serial - header ¦ 1 x audio - header |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage |
| Hardware Features | BIOSTAR [FLASHER], HDCP compliant, ESD Protection, overcurrent protection, overvoltage protection, overheat protection, Super LAN Surge Protection, USB Polyswitch |
| Included Accessories | I/O back plate |
| Cables Included | 2 x Serial ATA cable |
| Software Included | BullGuard, Smart Speed LAN |
| Width | 22.6 cm |
| Depth | 17.4 cm |
Features - Biostar - A320MH
More Details
Product Code
04:269590
EAN Code
4712960681514
Manufacturer
Biostar
