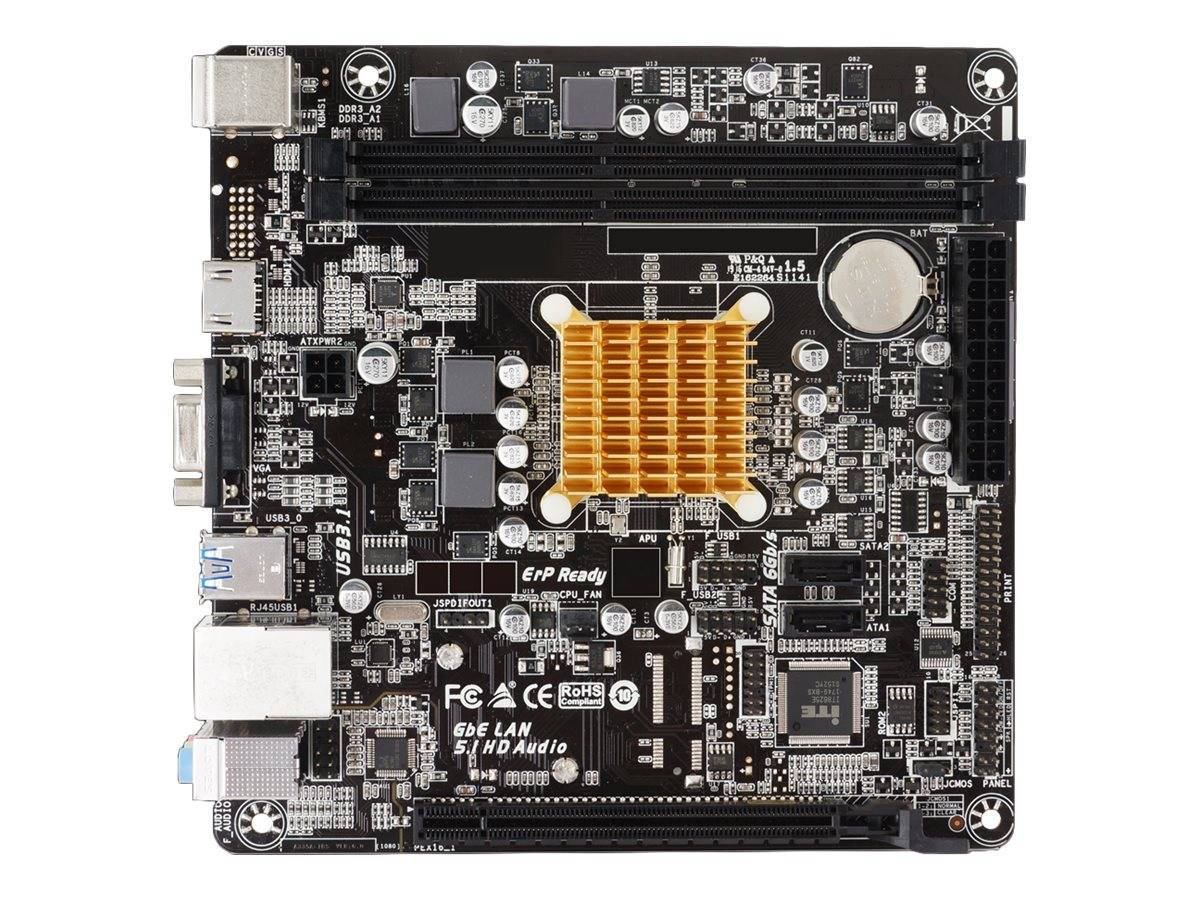

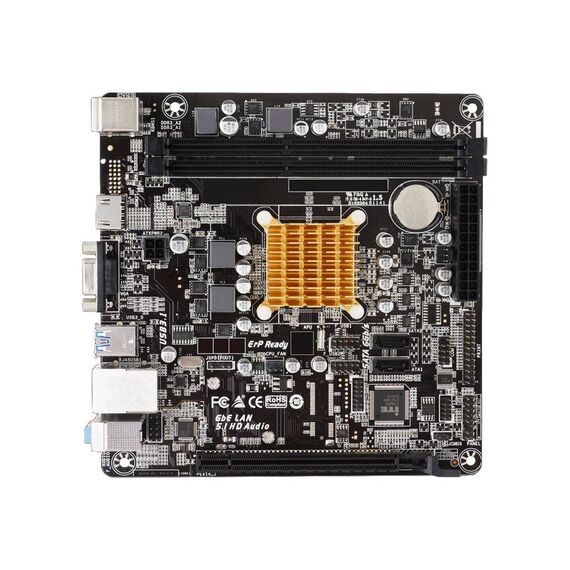

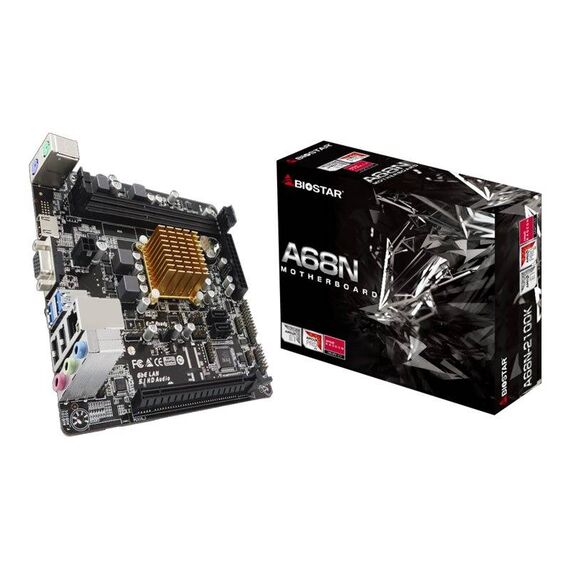

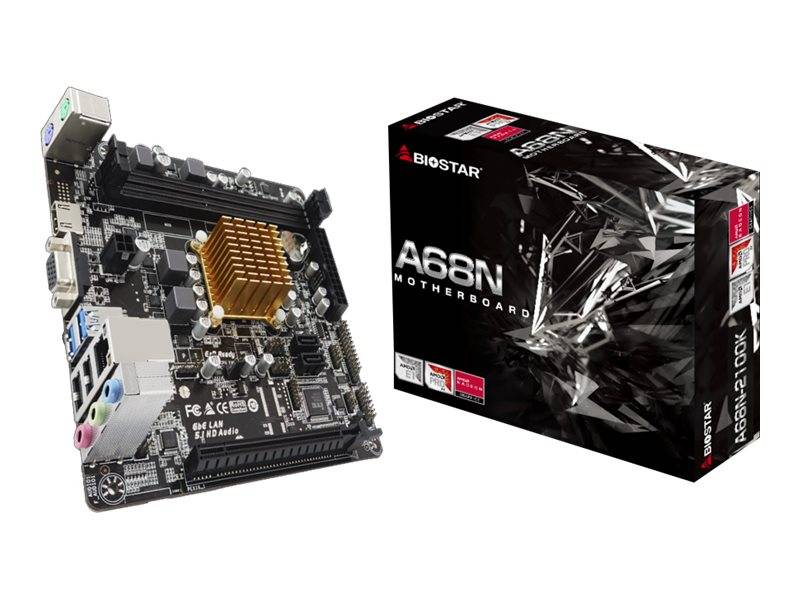

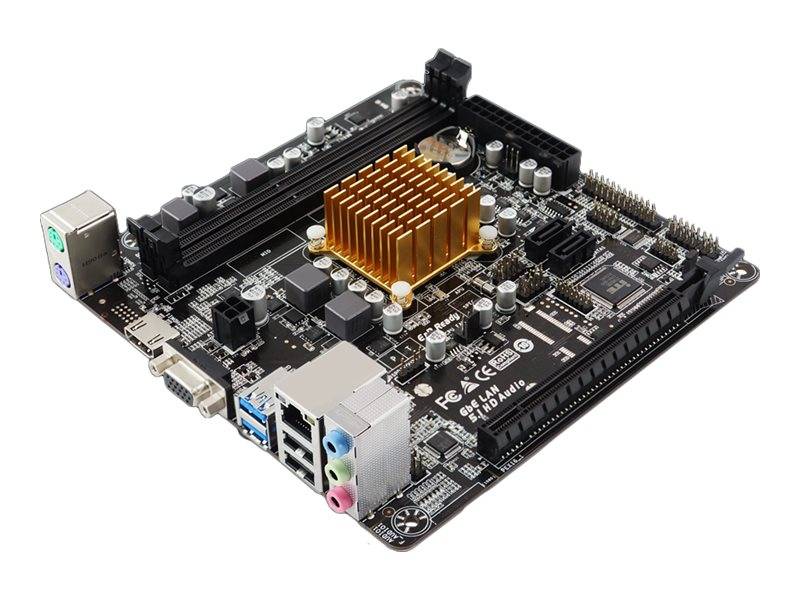

Biostar A68N-2100K / Motherboard / mini ITX / AMD E1 6010 / USB 3.2 Gen 1 / Gigabit LAN / onboard graphics / HD Audio (8-channel) | A68N-2100K

Product Features
- HD audio
Provides high-quality sound with minimal loss of audio fidelity. - S/P DIF output on board
Onboard optical and coaxial connectors support your desktop in transferring the non-distortion digital audio output to the AV amplifier and professional speaker system. - HDMI 4K2K
The 4K2K resolution enables high-definition image display with four times the resolution of Full HD, 4K2K display expresses bright, highly detailed content that fills the entire screen with lifelike images. - USB 3.2 Gen1 Type-A
USB 3.2 Gen1 delivers compelling performance boosts and can be used to connect multiple devices without worrying about compatibility. It is capable of data transfer speeds up to 5Gbps and backwards compatible with all existing USB products. - 100% solid caps
With armor-plated Biostar Technology, all capacitors are placed with 100% solid capacitors that have a lasting life cycle, durability and stability for crucial components. - SATAIII 6Gbps
SATAIII 6Gbps provides a higher bandwidth to retrieve and transfer HD media. With this super speed data transfer, SATAIII allows an incredible data boost which is 2x faster than the SATA 3G.
Special Features
- HD audio
- S/P DIF output on board
- HDMI 4K2K
- USB 3.2 Gen1 Type-A
- 100% solid caps
- SATAIII 6Gbps
Product Specification
Product Type | Motherboard - mini ITX |
Processor | AMD E1 6010 / 1.35 GHz (Dual-Core) |
Max Processors Qty | 1 |
Supported RAM | Supported RAM |
Max Size | 16 GB |
Technology | DDR3, DDR3L |
Bus Clock | 1333 MHz, 1066 MHz, 800 MHz |
Supported RAM Integrity Check | Non-ECC |
Features | Single channel memory architecture |
Graphics | Graphics |
Graphics Controller | AMD Radeon R2 |
Audio | Audio |
Type | HD Audio (8-channel) |
Audio Codec | Realtek ALC887 |
Compliant Standards | High Definition Audio |
LAN | LAN |
Network Controller | Realtek RTL8111H |
Network Interfaces | Gigabit Ethernet |
Expansion / Connectivity | Expansion / Connectivity |
Expansion Slots | 1 x CPU ¦ 1 x PCIe 2.0 x16 (x4 mode) ¦ 2 x DIMM 240-pin |
Storage Interfaces | SATA-600 -connectors: 2 x 7pin Serial ATA - 2 devices |

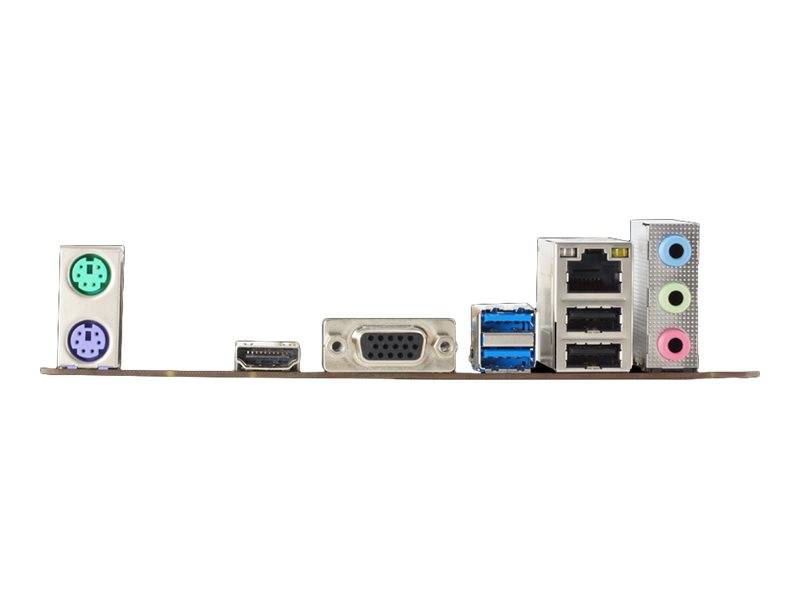

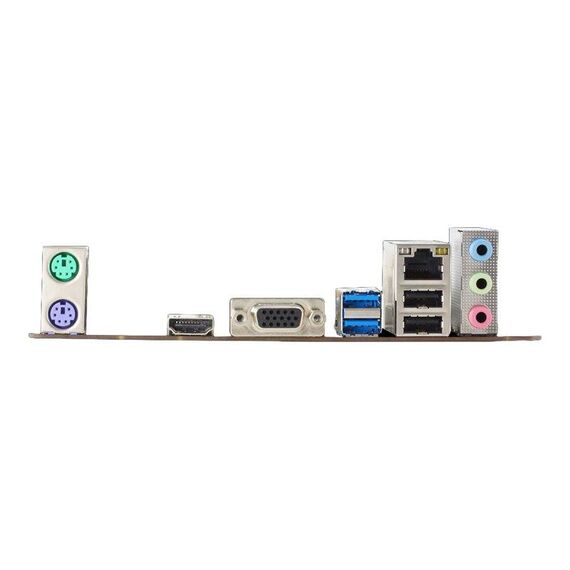

Interfaces | 1 x PS/2 mouse ¦ 1 x PS/2 keyboard ¦ 2 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x HDMI ¦ 1 x VGA ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack |
Internal Interfaces | 1 x parallel - header ¦ 4 x USB 2.0 - header ¦ 1 x audio - header ¦ 1 x SPDIF out - header ¦ 1 x serial - header |
Power Connectors | 4-pin ATX12V connector, 24-pin main power connector |
Features | Features |
BIOS Features | BIOSTAR [FLASHER], UEFI BIOS |
Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer |
Hardware Features | HDCP compliant, 4K resolution support, BIOSTAR Solid Capacitor |
Miscellaneous | Miscellaneous |
Included Accessories | I/O back plate |
Cables Included | 2 x Serial ATA cable |
Software Included | Drivers & Utilities, BullGuard, Smart Speed LAN |
Width | 17 cm |
Depth | 17 cm |
