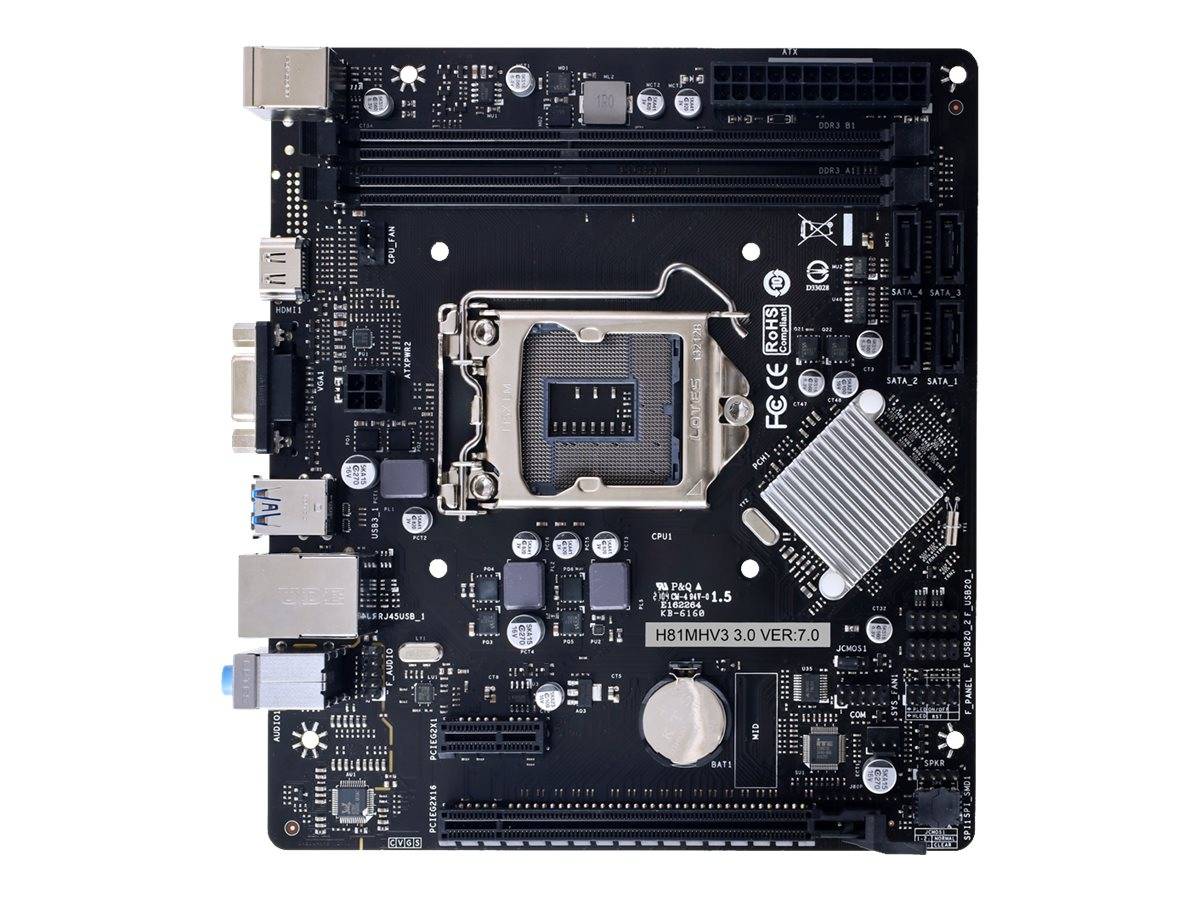

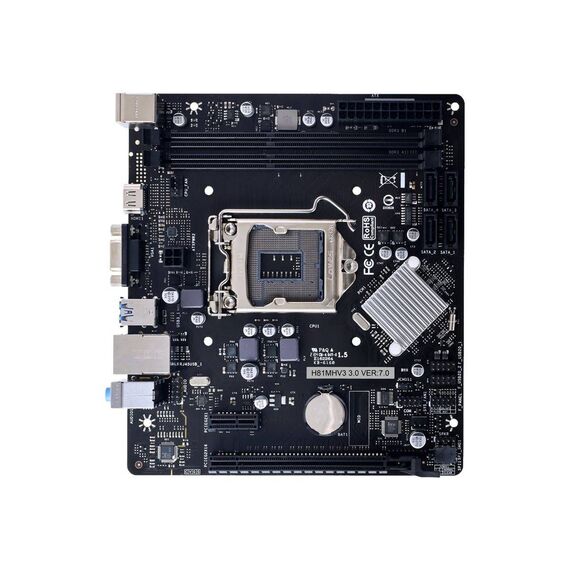

Biostar H81MHV3 3.0 / Motherboard / micro ATX / LGA1150 Socket / H81 Chipset / USB 3.2 Gen 1 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (6-channel) | H81MHV3 V3.0
Please sign in so that we can notify you about a reply
Product Specification
| Product Type | Motherboard - micro ATX |
| Chipset Type | Intel H81 |
| Processor Socket | LGA1150 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | Pentium, Celeron, Core i5, Core i3, Core i7 |
| Supported RAM | Supported RAM |
| Max Size | 16 GB |
| Technology | DDR3, DDR3L |
| Bus Clock | 1600 MHz, 1333 MHz, 1066 MHz |
| Supported RAM Integrity Check | Non-ECC |
| Features | Dual channel memory architecture |
| Audio | Audio |
| Type | HD Audio (6-channel) |
| Audio Codec | Realtek ALC887 |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Interfaces | Gigabit Ethernet |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU ¦ 2 x DIMM 240-pin ¦ 1 x PCIe 2.0 x16 ¦ 1 x PCIe 2.0 x1 |
| Storage Interfaces | SATA-600 -connectors: 2 x 7pin Serial ATA - 2 devices ¦ SATA-300 -connectors: 2 x 7pin Serial ATA - 2 devices |
| Interfaces | 2 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x HDMI ¦ 1 x VGA ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x PS/2 keyboard ¦ 1 x PS/2 mouse |
| Internal Interfaces | 4 x USB 2.0 - header ¦ 1 x serial - header ¦ 1 x audio - header |
| Power Connectors | 4-pin ATX12V connector, 24-pin main power connector |
| Features | Features |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage |
| Hardware Features | HDCP compliant, ESD Protection, overcurrent protection, overvoltage protection, overheat protection, Moistureproof PCB, Super Durable Solid Caps, 4K2K resolution support, BIO-FLASHER |
| Miscellaneous | Miscellaneous |
| Included Accessories | I/O back plate |
| Cables Included | 2 x Serial ATA cable |
| Software Included | Drivers & Utilities, BIO-Remote2, Smart Speed LAN |
| Width | 17 cm |
| Depth | 19 cm |
Features - Biostar - H81MHV3 V3.0
More Details
Product Code
04:407599
EAN Code
4712960685598
Manufacturer
Biostar
