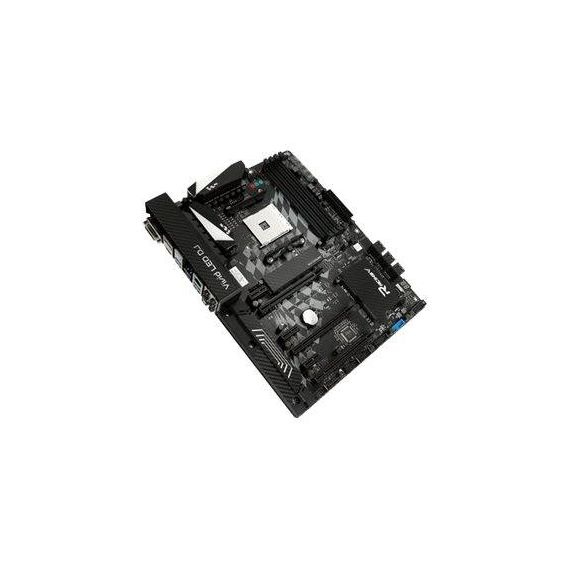

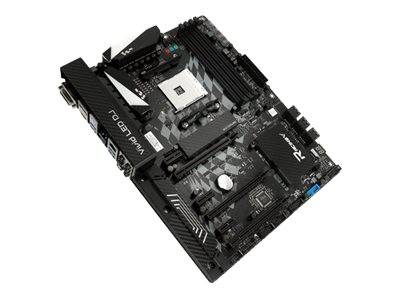

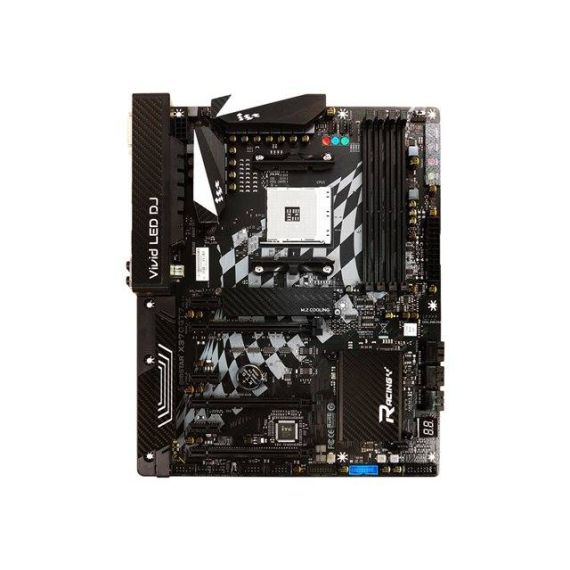

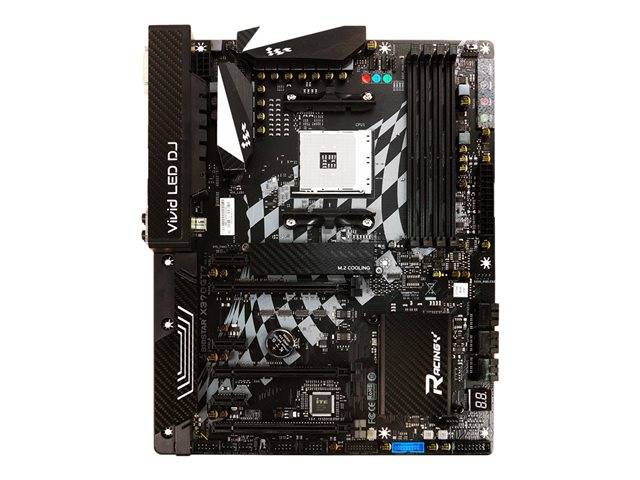

Biostar RACING X370GT7 / Motherboard / ATX / Socket AM4 / AMD X370 / USB 3.0, USB 3.1, USB-C / Gigabit LAN / onboard graphics (CPU required) / 8-channel audio | X370GT7
Biostar RACING X370GT7 / Motherboard / ATX / Socket AM4 / AMD X370 / USB 3.0, USB 3.1, USB-C / Gigabit LAN / onboard graphics (CPU required) / 8-channel audio | X370GT7
Description The users can enjoy the AMD platformof the Biostar RACING series. The RACING series features the superior gaming network optimization with Biostar exclusive utility FLY.NET, which automatically detects the bandwidth of software and DRAGON LAN for an optimal online gaming experience. The other perfect feature enhances the degree of overclocking performance with Digital Power+ for further performance enhancements on unlocked AMD RYZEN CPUs for the extra performance boost, so you can get more out of your system, perfect for overclockers! Biostar RACING X370GT7 / Motherboard / ATX / Socket AM4 / AMD X370 | X370GT7Special Features
Product features
|
Product Specification
Product Type | Motherboard - ATX |
Chipset Type | AMD X370 |
Processor Socket | Socket AM4 |
Max Processors Qty | 1 |
Compatible Processors | A series, Ryzen (Maximum TDP 95 Watt) |
Max Size | 64 GB |
Technology | DDR4 |
Bus Clock | 2400 MHz, 1866 MHz, 2133 MHz, 2667 MHz |
Features | Dual channel memory architecture |
Type | 8-channel audio |
Audio Codec | Realtek ALC1220 |
Network Controller | Realtek RTL8118AS |
Network Interfaces | Gigabit Ethernet |
Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 2 x PCIe 3.0 x16 (x16/x8 mode (with AMD Ryzen CPU); x8 mode (with AMD 7th Generation A-series/Athlon CPU)) ¦ 1 x PCIe 2.0 x16 ¦ 3 x PCIe 2.0 x1 ¦ 1 x M.2 socket |
Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 |

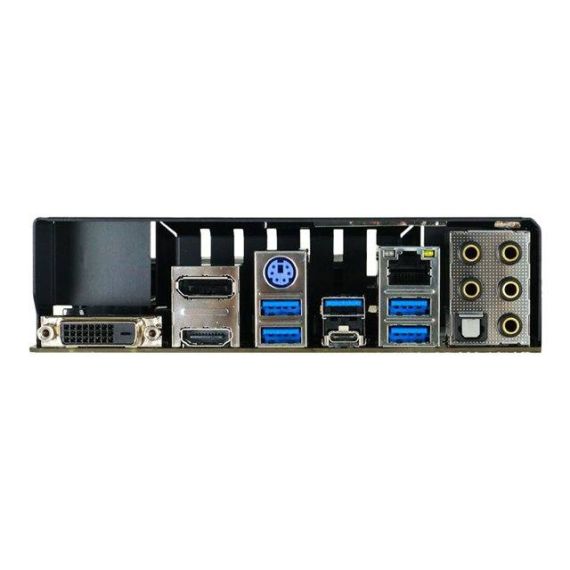

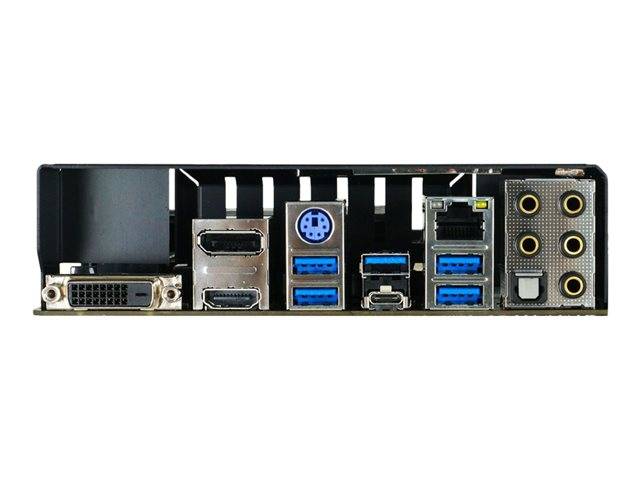

Interfaces | 1 x PS/2 keyboard / mouse ¦ 1 x DVI-D ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x HDMI ¦ 5 x audio line-out/line-in ¦ 1 x USB-C ¦ 1 x USB 3.1 Gen 1 ¦ 4 x USB 3.1 Gen 2 ¦ 1 x SPDIF out ¦ 1 x DisplayPort |
Internal Interfaces | 2 x USB 2.0 - header ¦ 2 x USB 3.1 - header ¦ 1 x audio - header |
BIOS Features | UEFI BIOS |
Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage |
Hardware Features | DualBIOS, Rapid Debug 3, BIOSTAR [FLASHER], ESD Protection, overcurrent protection, overvoltage protection, BIOSTAR Hi-Fi Power technology, BIOSTAR Hi-Fi Ground, BIOSTAR Hi-Fi Sound, BIOSTAR Hi-Fi AMP, BIOSTAR Hi-Fi Resistor, BIOSTAR Hi-Fi Cap, overheat protection, Super LAN Surge Protection, BIOSTAR Super Anti-Surge Protection, USB Polyswitch, Moistureproof PCB, Low RdsOn P-Pak MOS, BIOSTAR 5050 LED Fun, BIOSTAR Vivid LED DJ, Super Durable Solid Caps, Super Durable Ferrite Choke, GT Touch, BIOSTAR Double Hi-Fi |
Included Accessories | I/O back plate |
Cables Included | 4 x Serial ATA cable |
Software Included | BullGuard, Racing GT Utility, Biostar FLY.NET |
Width | 30.5 cm |
Depth | 24.4 cm |
