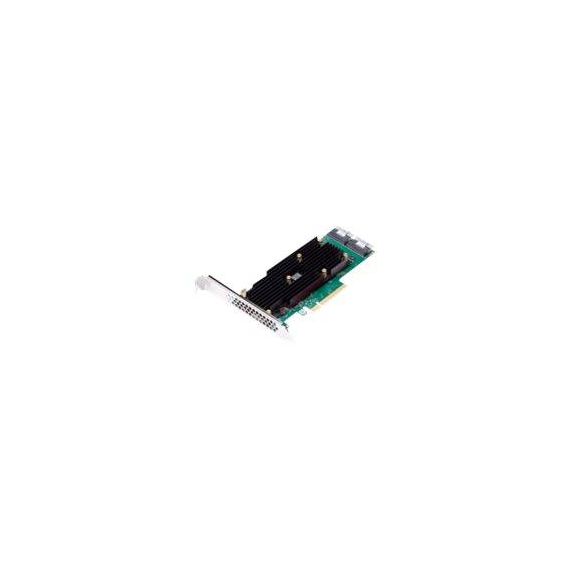

Broadcom MegaRAID 9560-16i / Storage controller (RAID) / 16 Channel / SATA 6Gb/s / SAS 12Gb/s / PCIe 4.0 (NVMe) / RAID 0, 1, 5, 6, 10, 50, JBOD, 60 / PCIe 4.0 x8 | 05-50077-00
Broadcom MegaRAID 9560-16i / Storage controller (RAID) / 16 Channel / SATA 6Gb/s / SAS 12Gb/s / PCIe 4.0 (NVMe) / RAID 0, 1, 5, 6, 10, 50, JBOD, 60 / PCIe 4.0 x8 | 05-50077-00
€1009.5 inc. VAT
05-50077-00
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Robust reliability
With an impressive MTBF of 3,000,000 hours, this storage controller is built to last, ensuring a reliable storage solution for demanding environments. - Flexible connectivity
Featuring Slim SAS (SFF-8654) connectors, this device supports SATA 6 Gb/s, SAS 12 Gb/s, and PCIe 4.0 (NVMe) interfaces, offering versatile connection options for a wide range of storage needs. - High capacity support
Capable of managing up to 240 storage devices and supporting various RAID levels, including JBOD, RAID 0, 1, 10, 5, 50, 6, and 60, this controller meets the needs of extensive storage arrays for high-availability systems.
Special Features
- Connect up to 240 SAS/SATA devices or 24 NVMe devices per controller
- Fits into rack-mounted servers with low-profile form factor and side-mounted SAS connectors
- Form-factor friendly cable exit
- Support critical, high-bandwidth applications with PCIe 4.0 connectivity
- Balance protection and performance for critical applications with RAID 0, 1, 5, 6, 10, 50 and 60
- JBOD mode with RAID 0, 1, 10 and JBOD for SDS environments
- Add more protection and peace of mind with CacheVault flash cache protection
Product Specification
| Device Type | Storage controller (RAID) - plug-in card |
| Host Bus | PCIe 4.0 x8 |
| Storage Controller | Storage Controller |
| Interface | SATA 6Gb/s / SAS 12Gb/s / PCIe 4.0 (NVMe) |
| Buffer Size | 8 GB |
| Supported Devices | Disk array (RAID) |
| Channel Qty | 16 |
| Max Storage Devices Qty | 240 |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 60 |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 2 x SATA 6Gb/s / SAS 12Gb/s / PCIe 4.0 (NVMe) - Slim SAS (SFF-8654) (internal) |
| Miscellaneous | Miscellaneous |
| Features | Tri-Mode SerDes technology |
| MTBF | 3,000,000 hours |
| Compliant Standards | FCC Class B certified, EN 60950, EN55022, IEC 60950, EN55024, UL 60950, ICES-003 Class B, RoHS, WEEE, FCC CFR47 Part 15 B, VCCI V-3, AS/NZS CISPR 22, CNS 13438 |
| Power | Power |
| Power Consumption Operational | 13.21 Watt |
| Software / System Requirements | Software / System Requirements |
| OS Required | FreeBSD, Red Hat Linux, SuSe Linux, Microsoft Windows, Debian Linux, Oracle Enterprise Linux, CentOS, Ubuntu, VMware ESXi, Citrix XenServer, Linux Fedora, VMware vSphere (ESXi) |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years Technical support - 3 years |
| Dimensions & Weight | Dimensions & Weight |
| Depth | 15.565 cm |
| Height | 6.89 cm |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 55 °C |
| Humidity Range Operating | 5 - 90% (non-condensing) |
Features - Broadcom - 05-50077-00
More Details
Product Code
04:347434
EAN Code
0830343007462
Manufacturer
Broadcom
