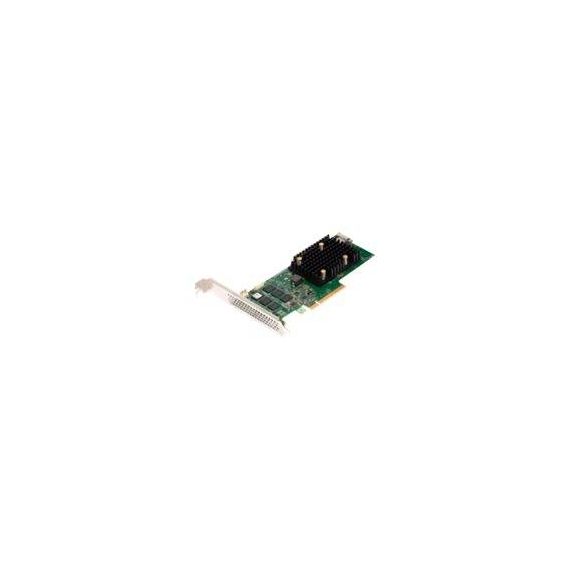

Broadcom MegaRAID 9560-8i / Storage controller (RAID) / 8 Channel / SATA 6Gb/s / SAS 12Gb/s / PCIe 4.0 (NVMe) / RAID 0, 1, 5, 6, 10, 50, JBOD, 60 / PCIe 4.0 x8 | 05-50077-01
Broadcom MegaRAID 9560-8i / Storage controller (RAID) / 8 Channel / SATA 6Gb/s / SAS 12Gb/s / PCIe 4.0 (NVMe) / RAID 0, 1, 5, 6, 10, 50, JBOD, 60 / PCIe 4.0 x8 | 05-50077-01
€908.95 inc. VAT
05-50077-01
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Robust performance
The Broadcom MegaRAID 9560-8i storage controller ensures high performance and reliability with its support for SATA 6 Gb/s, SAS 12 Gb/s, and PCIe 4.0 (NVMe) interfaces, accommodating a diverse range of storage requirements. - Exceptional durability
Designed to withstand the demands of continuous operation, the Broadcom MegaRAID 9560-8i boasts an impressive mean time between failures (MTBF) of 3,000,000 hours, highlighting its exceptional durability and reliability. - Versatile connectivity
With its internal Slim SAS (SFF-8654) connector, the Broadcom MegaRAID 9560-8i offers versatile connectivity options, making it a suitable choice for various storage environments. - Advanced RAID support
The Broadcom MegaRAID 9560-8i provides comprehensive RAID level support, including JBOD, RAID 0, RAID 1, RAID 10, RAID 5, RAID 50, RAID 6, and RAID 60, ensuring data protection and performance optimization for all types of storage arrays.
Special Features
- Connect up to 240 SAS/SATA devices or 24 NVMe devices per controller
- Fits into rack-mounted servers with low-profile form factor and side-mounted SAS connectors
- Form-factor friendly cable exit
- Support critical, high-bandwidth applications with PCIe 4.0 connectivity
- Balance protection and performance for critical applications with RAID 0, 1, 5, 6, 10, 50 and 60
- JBOD mode with RAID 0, 1, 10 and JBOD for SDS environments
- Add more protection and peace of mind with CacheVault flash cache protection
Product Specification
| Device Type | Storage controller (RAID) - plug-in card |
| Host Bus | PCIe 4.0 x8 |
| Storage Controller | Storage Controller |
| Interface | SATA 6Gb/s / SAS 12Gb/s / PCIe 4.0 (NVMe) |
| Buffer Size | 4 GB |
| Supported Devices | Disk array (RAID) |
| Channel Qty | 8 |
| Max Storage Devices Qty | 240 |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 60 |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x SATA 6Gb/s / SAS 12Gb/s / PCIe 4.0 (NVMe) - Slim SAS (SFF-8654) (internal) |
| Miscellaneous | Miscellaneous |
| Features | Tri-Mode SerDes technology |
| MTBF | 3,000,000 hours |
| Compliant Standards | FCC Class B certified, EN 60950, EN55022, IEC 60950, EN55024, UL 60950, ICES-003 Class B, RoHS, WEEE, FCC CFR47 Part 15 B, VCCI V-3, AS/NZS CISPR 22, CNS 13438 |
| Power | Power |
| Power Consumption Operational | 9.64 Watt |
| Software / System Requirements | Software / System Requirements |
| OS Required | FreeBSD, Red Hat Linux, SuSe Linux, Microsoft Windows, Debian Linux, Oracle Enterprise Linux, CentOS, Ubuntu, VMware ESXi, Citrix XenServer, Linux Fedora, VMware vSphere (ESXi) |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years Technical support - 3 years |
| Dimensions & Weight | Dimensions & Weight |
| Depth | 15.565 cm |
| Height | 6.89 cm |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 55 °C |
| Humidity Range Operating | 5 - 90% (non-condensing) |
Features - Broadcom - 05-50077-01
More Details
Product Code
04:347427
EAN Code
0830343007479
Manufacturer
Broadcom
