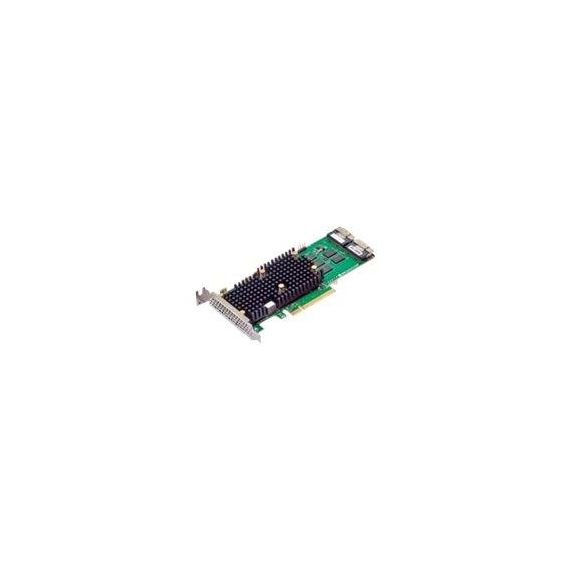

Broadcom MegaRAID 9660-16i / Storage controller (RAID) / 16 Channel / SATA 6Gb/s / SAS 24Gb/s / PCIe 4.0 (NVMe) / RAID 0, 1, 10, 5, 50, 6, 60 / PCIe 4.0 x8 | 05-50107-00
Broadcom MegaRAID 9660-16i / Storage controller (RAID) / 16 Channel / SATA 6Gb/s / SAS 24Gb/s / PCIe 4.0 (NVMe) / RAID 0, 1, 10, 5, 50, 6, 60 / PCIe 4.0 x8 | 05-50107-00
€1196.95 inc. VAT
05-50107-00
Product Code04:495433
ManufacturerBroadcom
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Robust reliability
With an impressive MTBF of 3,000,000 hours, this storage controller is built to last, ensuring continuous operation and reliability for critical systems. - Versatile connectivity
Featuring Slim SAS (SFF-8654) connectors, this device supports SATA 6 Gb/s, SAS 24 Gb/s, and PCIe 4.0 (NVMe) interfaces, providing flexible and high-speed connectivity options for a variety of storage needs. - Efficient power usage
Optimized for efficiency, the Broadcom MegaRAID 9660-16i operates on a mere 18 watts of power, reducing operational costs and contributing to a greener environment.
Special Features
- Supports a wide range of RAID levels including RAID 0, 1, 10, 5, 50, 6, and 60 for enhanced data protection and performance
- 16 channel support allows for extensive storage expansion and flexibility
- Compliant with multiple standards including RoHS, WEEE, and FCC Class B, ensuring broad compatibility and regulatory compliance
- Operates within a wide range of environmental conditions, with operating humidity from 5 - 90% (non-condensing) and temperatures from 0°C to 55°C
Product Specification
| Device Type | Storage controller (RAID) - plug-in card |
| Host Bus | PCIe 4.0 x8 |
| Storage Controller | Storage Controller |
| Interface | SATA 6Gb/s / SAS 24Gb/s / PCIe 4.0 (NVMe) |
| Supported Devices | Disk array (RAID) |
| Channel Qty | 16 |
| RAID Level | RAID 0, RAID 1, RAID 10, RAID 5, RAID 50, RAID 6, RAID 60 |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 2 x SATA 6Gb/s / SAS 24Gb/s / PCIe 4.0 (NVMe) - Slim SAS (SFF-8654) (internal) |
| Miscellaneous | Miscellaneous |
| Included Accessories | Low-profile bracket |
| MTBF | 3,000,000 hours |
| Compliant Standards | FCC Class B certified, CISPR 32, CISPR 32:2015 Class A, EMC, ICES, EN55024, EN 55032, EN 55035, EN 55032:2015+AC:2016 Class A, EN 55035:2017/A11:2020, KN32, KN35, BSMI, CNS 13438, CNS 15663, UL, VCCI-CISPR 32:2016, CMIM, RoHS, WEEE |
| Power | Power |
| Power Consumption Operational | 18 Watt |
| Software / System Requirements | Software / System Requirements |
| OS Required | FreeBSD, Red Hat Linux, SuSe Linux, Microsoft Windows, Debian Linux, Oracle Enterprise Linux, CentOS, Ubuntu, VMware ESXi, Citrix XenServer, Linux Fedora, VMware vSphere (ESXi) |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years Technical support - 3 years |
| Dimensions & Weight | Dimensions & Weight |
| Depth | 15.565 cm |
| Height | 6.89 cm |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 55 °C |
| Humidity Range Operating | 5 - 90% (non-condensing) |
