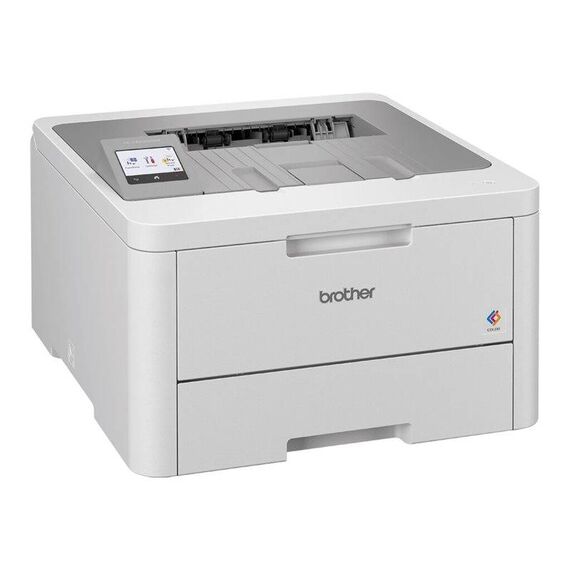

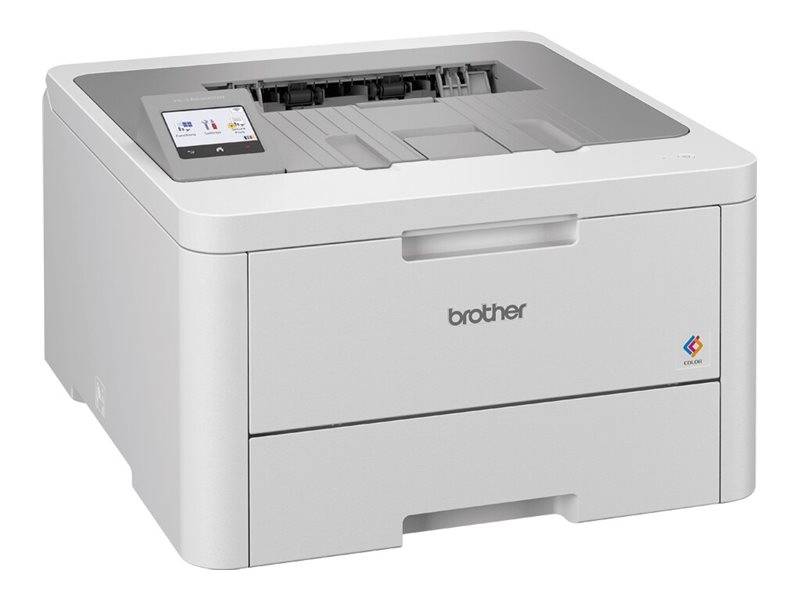

Brother HL-L8230CDW / Printer / colour / Duplex / LED / A4/Legal / 600 x 600 dpi / up to 30 ppm (mono) / up to 30 ppm (colour) / capacity: 250 sheets / USB 2.0, Wi-Fi(n) | HLL8230CDWRE1
Please sign in so that we can notify you about a reply
Product Specification
| Printer Type | Workgroup printer - LED - colour |
| Printer | Printer |
| Print Speed | Up to 18 ppm - B/W - A4 (210 x 297 mm) ¦ Up to 18 ppm - colour - A4 (210 x 297 mm) ¦ Up to 12 ipm - B/W duplex - A4 (210 x 297 mm) ¦ Up to 12 ipm - colour duplex - A4 (210 x 297 mm) |
| Built-in Devices | Touch screen |
| Connectivity Technology | Wireless |
| Interface | USB 2.0, Wi-Fi(n) |
| AirPrint Enabled | Yes |
| Max Resolution (B&W) | 600 x 600 dpi |
| Max Resolution (Colour) | 600 x 600 dpi |
| Max Resolution Class (B&W) | 600 x 600 dpi |
| Max Resolution Class (Colour) | 600 x 600 dpi |
| Automatic Duplexing | Yes |
| First Print Out Time B/W | 12.5 sec |
| First Print Out Time Colour | 12.5 sec |
| Language Simulation | PCL 5E, PCL 5C, PCL 6, BR-Script3, PCL XL 3.0, PDF 1.7 |
| Fonts Included | 73 x scalable PCL ¦ 12 x bitmapped PCL |
| Barcodes | Code 93, Code 39, ISBN, GS1 DataBar, UPC-A, UPC-E, Codabar, Code 128, Interleaved 2 of 5, Postnet, FIM, EAN-128, EAN-8, EAN-13, MSI, US Postnet |
| Media Handling | 250-sheet input tray, 30-sheet multipurpose tray |
| RAM | RAM |
| RAM Installed (Max) | 512 MB |
| Media Handling | Media Handling |
| Media Type | Envelopes, labels, plain paper, bond paper, recycled paper, thick paper, thin paper, glossy paper |
| Media Size Class | A4/Legal |
| Max Media Size | Legal (216 x 356 mm), A4 (210 x 297 mm) |
| Min Media Size (Custom) | 76.2 mm x 116 mm |
| Max Media Size (Custom) | 216 mm x 355.6 mm |
| Media Sizes | ANSI A (Letter) (216 x 279 mm), Legal (216 x 356 mm), Executive (184 x 267 mm), A4 (210 x 297 mm), A5 (148 x 210 mm), A6 (105 x 148 mm), JIS B5 (182 x 257 mm), 216 x 355.6 mm, JIS B6 (128 x 182 mm), 76.2 x 116 mm, Folio (203 x 330 mm), B5 (190 x 250 mm) |
| Envelope Sizes | International DL (110 x 220 mm), Com-10 (105 x 241 mm), International C5 (162 x 229 mm), Monarch (98.4 x 190.5 mm) |
| Media Weight | 60 g/m² - 163 g/m² |
| Total Media Capacity | 250 sheets |
| Media Feeders | Input tray: 1 - 250 sheets - Legal (216 x 356 mm) weight: 60 g/m² - 163 g/m² ¦ Bypass tray: 1 - 30 sheets - 216 x 355.6 mm weight: 60 g/m² - 163 g/m² ¦ Output tray: 1 - 150 sheets |
| Output Trays Capacity | 150 sheets |
| Duty Cycle | Duty Cycle |
| Recommended Monthly Volume | Up to 4000 pages |
| Networking | Networking |
| Networking | Print server |
| Remote Management Protocol | SNMP 3, IPP, HTTP, SMTP |
| Security Protocols & Features | Kerberos, Secure Print, SSL, WEP, WPA-PSK, TLS, IPsec, 802.1x, WPA2-PSK, TKIP, AES, IP filtering, Wi-Fi Direct, EAP-TTLS, EAP-TLS, PEAP, EAP-FAST, SNMP 3, WPA3-SAE, SMTP, automatic intrusion detection, digitally-signed firmware, port-based network access control, secure function lock v3, syslog reporting, setting lock, restrict network protocols, active directory, store print log |
| Expansion / Connectivity | Expansion / Connectivity |
| Connections | 1 x USB 2.0 |
| Miscellaneous | Miscellaneous |
| Consumables Included | 1 x toner cartridge (black) - up to 1000 pages ISO/IEC 19798 ¦ 1 x toner cartridge (cyan) - up to 1000 pages ISO/IEC 19798 ¦ 1 x toner cartridge (magenta) - up to 1000 pages ISO/IEC 19798 ¦ 1 x toner cartridge (yellow) - up to 1000 pages ISO/IEC 19798 ¦ 1 x drum - up to 30000 pages 3 pages per job - Brother DR248CL ¦ 1 x transmission belt - up to 60000 pages 3 pages per job - Brother BU229CL ¦ 1 x waste toner collector - up to 50000 pages 5 pages per job - Brother WT229CL |
| Power | Power |
| Power Device | Power supply - internal |
| Voltage Required | AC 220-240 V |
| Frequency Required | 50/60 Hz |
| Power Consumption Operational | 560 Watt |
| Power Consumption Stand by | 31 Watt |
| Power Consumption Sleep | 5.5 Watt |
| Software / System Requirements | Software / System Requirements |
| OS Required | Apple MacOS, Linux, Google Chrome OS, Windows 11 |
| Environmental Standards | Environmental Standards |
| Blue Angel | Yes |
| ENERGY STAR | Yes |
| Nordic Swan Ecolabel | Yes |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 10 °C |
| Max Operating Temperature | 32.5 °C |
| Humidity Range Operating | 20 - 80% |
| Sound Emission (Operating) | 48 dBA |
| Sound Emission (Quiet Mode) | 43 dBA |
| Dimensions & Weight | Dimensions & Weight |
| Width | 39.9 cm |
| Depth | 44.6 cm |
| Height | 27.4 cm |
| Weight | 16.7 kg |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Width (Shipping) | 48.8 cm |
| Depth (Shipping) | 53.5 cm |
| Height (Shipping) | 37 cm |
| Weight (Shipping) | 19.7 kg |
Features - Brother - HLL8230CDWRE1
More Details
Product Code
CI75049
EAN Code
4977766823814
Manufacturer
Brother
