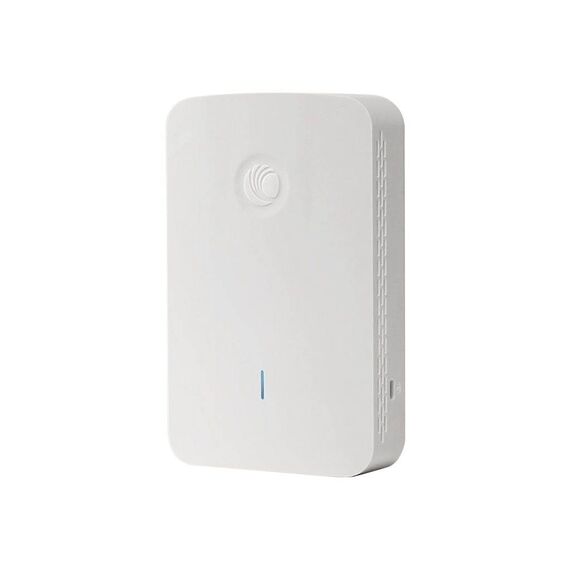

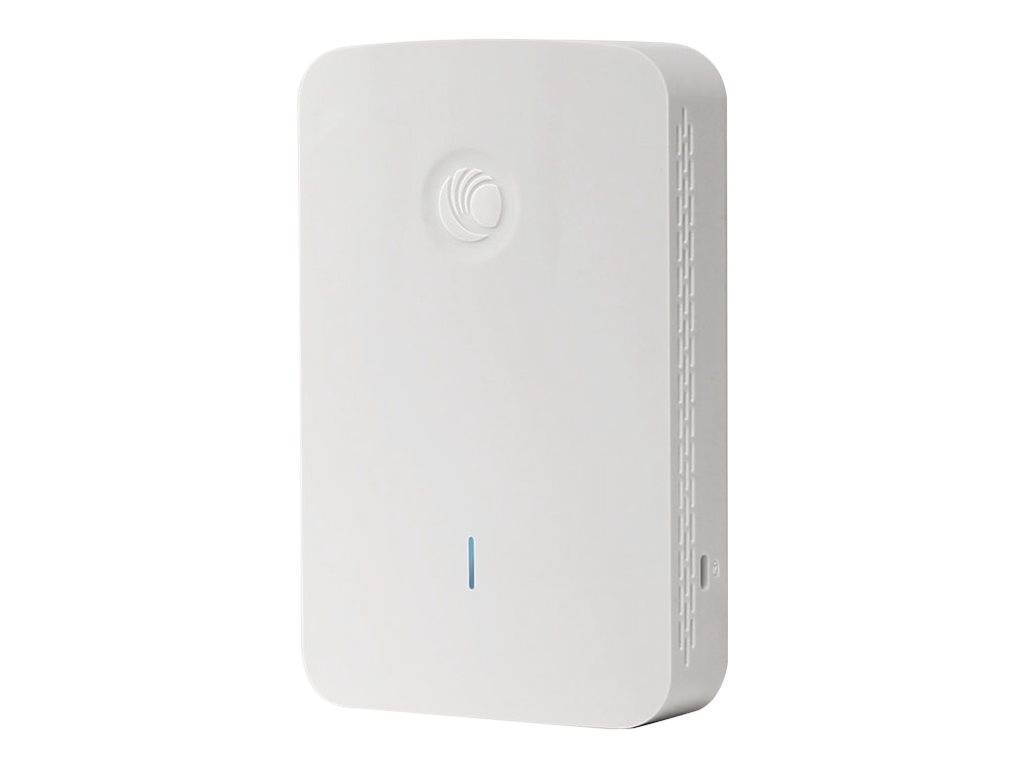

Cambium Networks cnPilot E430H / Radio access point / Wi-Fi 5 / Bluetooth / 2.4 GHz, 5 GHz / cloud-managed | PL-E430H00A-EU
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Radio access point |
| Ruggedized Design | Indoor |
| Width | 9.4 cm |
| Depth | 3.4 cm |
| Height | 14.7 cm |
| Weight | 390 g |
| Localisation | Europe |
| Networking | Networking |
| Form Factor | External |
| Connectivity Technology | Wireless |
| Line Coding Format | CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, Bluetooth 4.0, IEEE 802.11ac Wave 2 |
| Spread Spectrum Method | OFDM, DSSS |
| Network / Transport Protocol | L2TP, PPPoE, DHCP, DNS |
| Routing Protocol | IGMPv2, IGMP, IGMPv3 |
| Remote Management Protocol | SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, CLI |
| Cloud-Managed | Yes |
| Frequency Band | 2.4 GHz, 5 GHz |
| Performance | Maximum data rate (2.4 GHz): 400 Mbps ¦ Maximum data rate (5 GHz): 867 Mbps |
| Capacity | SSIDs total: 16 ¦ Maximum number of clients: 256 |
| Features | NAT support, load balancing, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, MAC address filtering, Wireless Distribution System (WDS) support, wall mountable, Wi-Fi Multimedia (WMM) support, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, reset button, LLDP support, DHCP relay, Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), Cyclic Delay Diversity (CDD), Space Time Blocking Code (STBC), 802.1x authentication, Type of Service (ToS), DiffServ Code Point (DSCP) support, cyclic shift diversity (CSD), beamforming technology, packet aggregation A-MPDU, packet aggregation A-MSDU, band steering, guest access, seamless roaming, Airtime Fairness, spectrum analyser, 2x2:2 MU-MIMO technology, Wireless Mesh support, security slot (Kensington security lock compatible) |
| Encryption Algorithm | AES, PEAP, TKIP, WPA, WPA-PSK, WPA2-PSK, WPA2-Enterprise, EAP-SIM, EAP-AKA, EAP-FAST |
| Authentication Method | RADIUS, LDAP, MS-CHAP v.2 |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11e, IEEE 802.11n, IEEE 802.11k, IEEE 802.3at, Bluetooth 4.0, IEEE 802.11w, IEEE 802.11r, IEEE 802.11u, IEEE 802.11v, IEEE 802.11ac Wave 2 |
| Aerial | Aerial |
| Antenna | Internal |
| Directivity | Omni-directional |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 3 x 1000Base-T - RJ-45 ¦ 1 x 1000Base-T (PoE output) - RJ-45 ¦ 2 x pass-through - RJ-45 |
| Miscellaneous | Miscellaneous |
| Included Accessories | Mounting bracket |
| MTBF | 2,828,686 hours |
| Compliant Standards | UL, IC, FCC, RoHS, WEEE |
| Power | Power |
| Power Over Ethernet (PoE) Supported | PoE+ |
| Power Consumption Operational | 25 Watt |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 45 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
Features - Cambium Networks - PL-E430H00A-EU
More Details
Product Code
04:382821
EAN Code
0810722032483
Manufacturer
Cambium Networks
