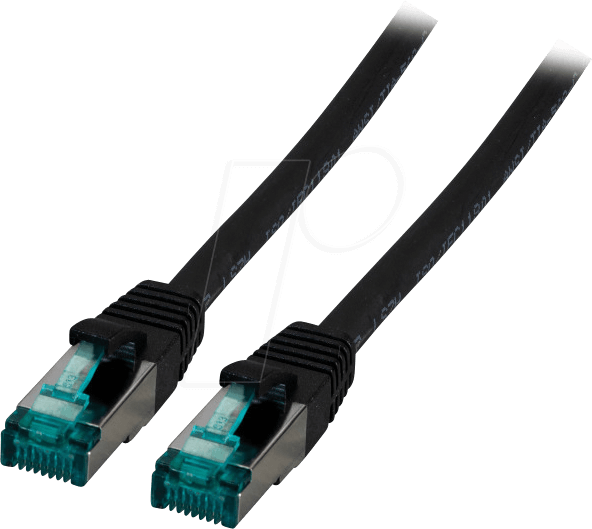

EFB-Elektronik - Patch cable - RJ-45 (M) to RJ-45 (M) - 5 m - 6 mm - S/FTP - CAT 6a - halogen-free, molded, snagless, silicone-free - black | MK6001.5B
Please sign in so that we can notify you about a reply
Product Specification
| Network Cable Type | Patch cable - CAT 6a |
| Technology | S/FTP |
| Jacket Material | Low Smoke Zero Halogen (LSZH) |
| American Wire Gauge (AWG) | 27/7 |
| Wires per Cable | 8 wires |
| Pairs per Cable | 4 pairs |
| Impedance | 100 Ohm |
| Plated Connector | Gold |
| Features | Halogen-free, molded, snagless, silicone-free, flame retardant, Anti-kink sleeve, shielded connectors, copper conductor, silicon-free, length imprint |
| Length | 5 m |
| Diameter | 6 mm |
| Colour | Black |
| Connectivity | |
| Connector | RJ-45 - male |
| Connector (Second End) | RJ-45 - male |
| Miscellaneous | |
| Compliant Standards | ISO/IEC 11801, TIA/EIA-568-B, IEC 60603-7-51, ANSI/TIA-568-C.2 - up to 500 MHz |
| Environmental Parameters | |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 60 °C |
Features - EFB - MK6001.5B
Colour
black
Length
5m
General
CAT6a
More Details
Product Code
04:366756
EAN Code
4049759225445
Manufacturer
EFB
