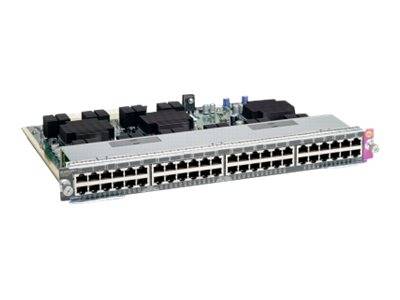

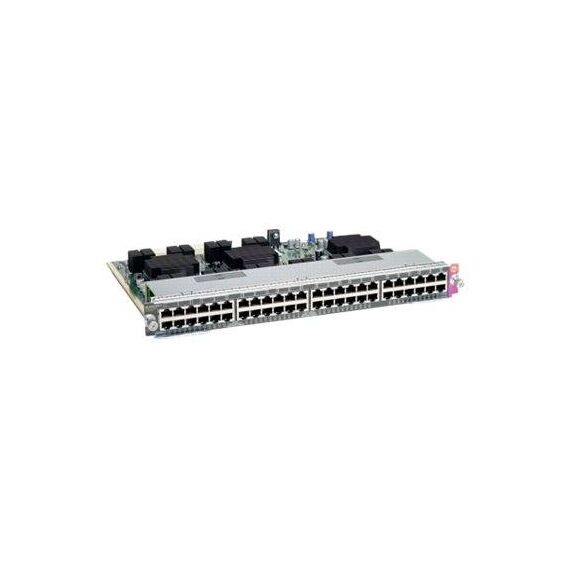

Cisco Catalyst 4500E Series Universal PoE Line Card / Switch / 48 x 10/100/1000 (PoE) / plug-in module / PoE / for Catalyst 4500E, 4503-E, 4506-E, 4507R+E, 4507R-E, 4510R+E, 4510R-E | WS-X4748-UPOE+E=
Please sign in so that we can notify you about a reply
Special Features
- EEE providing energy and cost savings to the customer
- Line-rate throughput at 48 Gbps per slot bandwidth
- Table stakes PoE capabilities such as powering up 802.11n access points and interactive IP phones compliant with IEEE 802.3 PoE/PoE+ standard
- High availability for power and guaranteed uninterrupted services, a requirement for critical applications
- Lowering OpEx by providing network resiliency at lower cost by consolidating backup power into the wiring closet
- Faster deployment of more campus access networking infrastructures by eliminating the need for a power outlet for every endpoint
- Cisco UPoE, in combination with Cisco EnergyWise, to help meet corporate sustainability mandates while lowering energy costs
Product Specification
| Device Type | Switch - 48 ports |
| Enclosure Type | Plug-in module |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 (PoE) |
| Power Over Ethernet (PoE) | PoE |
| Jumbo Frame Support | 9216 bytes |
| Features | Power over Ethernet (PoE), Cisco Gigabit EtherChannel, Port Aggregation Protocol (PAgP) support, Jumbo Frames support, PoE+, Link Aggregation Control Protocol (LACP), universal power over Ethernet (UPOE) |
| Compliant Standards | IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1ae, IEEE 802.3at, IEEE 802.3az |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 48 x 1000Base-T RJ-45 PoE |
| Miscellaneous | Miscellaneous |
| MTBF | 140,696 hours |
| Compliant Standards | NEBS level 3, ETSI, CISPR 22 Class A, EN 60950, IEC950, UL 1950, VCCI Class A ITE, EN55022 Class A, CSA 22.2 No. 60950, AS/NZS 3548, RoHS, FCC Part 15 A, EN55024 Class A |
| Software / System Requirements | Software / System Requirements |
| OS Required | Cisco IOS XE |
| Dimensions & Weight | Dimensions & Weight |
| Width | 36.2 cm |
| Depth | 27.3 cm |
| Height | 3 cm |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - advance parts replacement - lifetime - response time: 10 days |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 75 °C |
| Compatibility Information | Compatibility Information |
| Designed For | Cisco Catalyst 4500E Series Line Card, 4503-E, 4503-E Data Bundle, 4503-E PoE Bundle, 4506-E, 4506-E PoE GE Bundle, 4507R+E, 4507R-E, 4507R-E Data Bundle, 4507R-E PoE Bundle, 4510R+E, 4510R-E |
Features - Cisco - WS-X4748-UPOE+E=
More Details
Product Code
677N218
EAN Code
0882658445569
Manufacturer
Cisco
