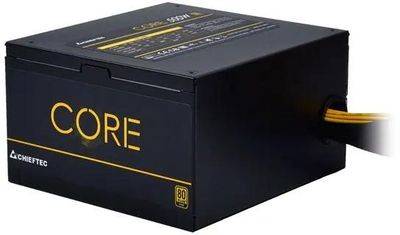

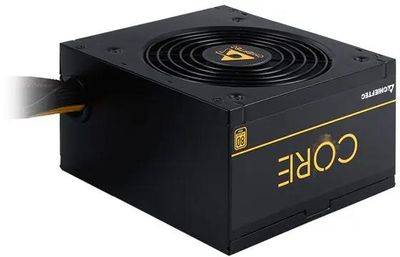

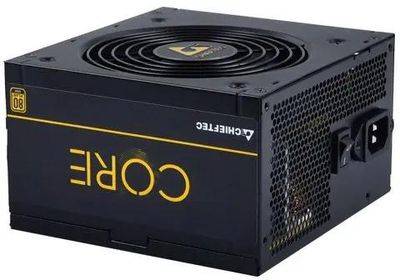

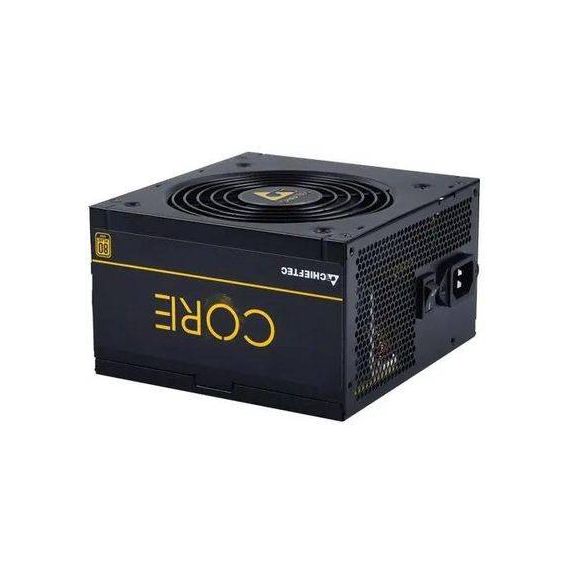

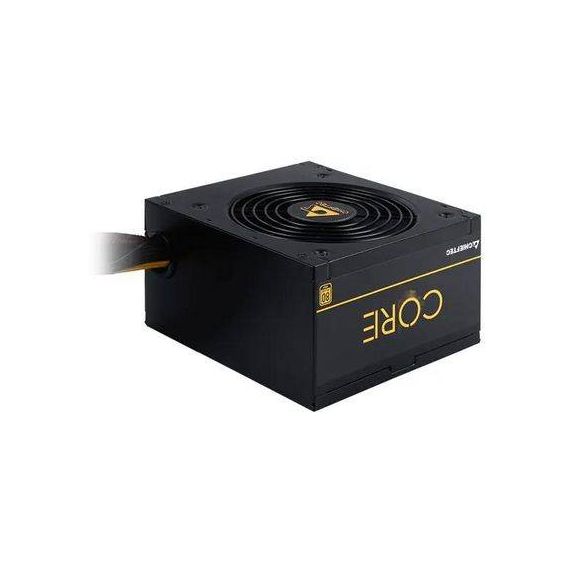

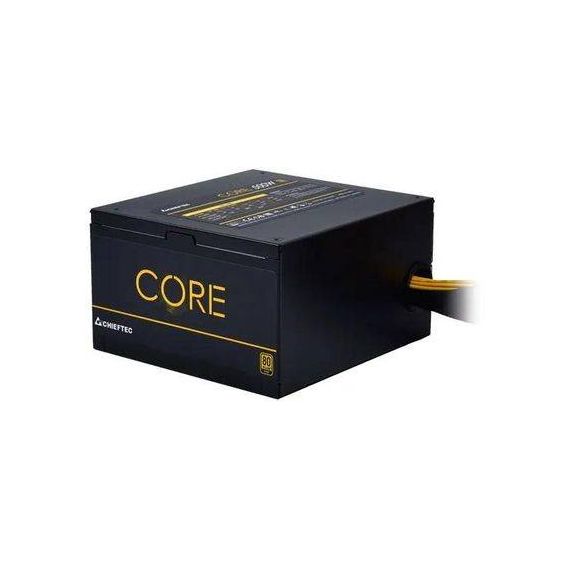

Chieftec Core Series BBS-500S / Power supply (internal) / ATX12V 2.3/ EPS12V/ PS/2 / 80 PLUS Gold / AC 100-240 V / 500 Watt / active PFC | BBS-500S
Chieftec Core Series BBS-500S / Power supply (internal) / ATX12V 2.3/ EPS12V/ PS/2 / 80 PLUS Gold / AC 100-240 V / 500 Watt / active PFC | BBS-500S
€115.17 inc. VAT
BBS-500S
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Special Features
- 80 PLUS Gold efficiency
- Compact size with only 140mm depth
- 500W power output
- Motherboard, CPU and PCI-E cable lengths of 650mm
Product Specification
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V 2.3/ EPS12V/ PS/2 |
| PSU Form Factor | ATX |
| Power Device | Power Device |
| Input Voltage | AC 100-240 V |
| Frequency Required | 47 - 63 Hz |
| Power Output Connectors Details | 1 x power 24 pin ATX ¦ 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 1 x 8 pin PCI Express power with detachable 2 pin section ¦ 3 x 4 PIN internal power ¦ 4 x 15 pin Serial ATA power ¦ 1 x 4 PIN mini-power connector |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 500 Watt |
| Output Current | +5V - 18 A ¦ +3.3V - 18 A ¦ +12V - 41 A ¦ +5VSB - 2.5 A ¦ -12V - 0.3 A |
| Power Factor (PF) | 0.9 |
| 80 PLUS Certification | 80 PLUS Gold |
| Miscellaneous | Miscellaneous |
| Cooling System | 120 mm fan |
| Features | Over voltage protection, overpower protection, short-circuit protection, non-modular |
| Compliant Standards | CB, RoHS, ErP Ready, EAC, TUV Rheinland |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 2 years |
| Dimensions & Weight | Dimensions & Weight |
| Width | 15 cm |
| Depth | 14 cm |
| Height | 8.6 cm |
| Weight | 1.65 kg |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Weight | 2.06 kg |
Features - Chieftec - BBS-500S
More Details
Product Code
07:233793
EAN Code
0753263076120
Manufacturer
Chieftec
