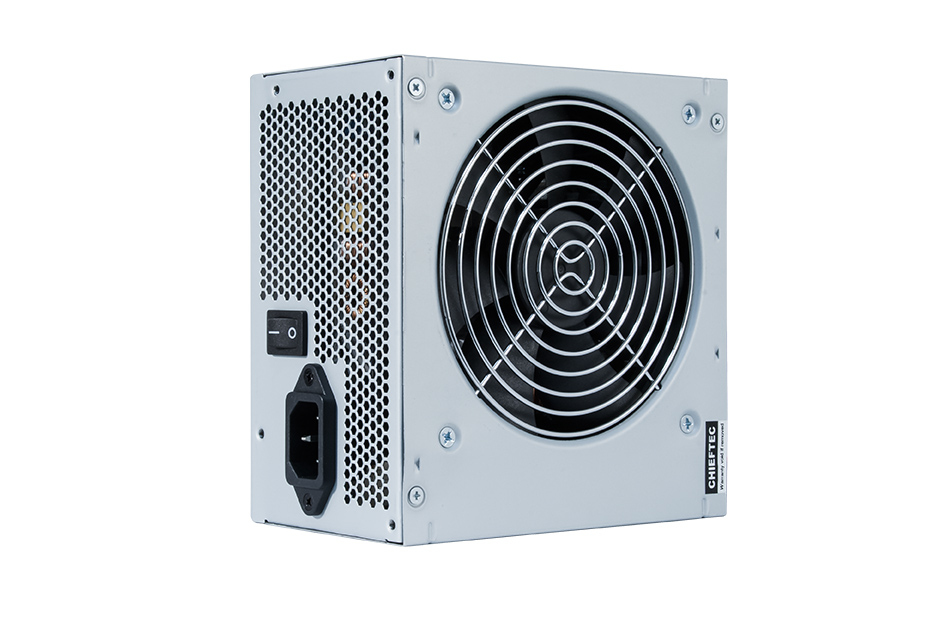

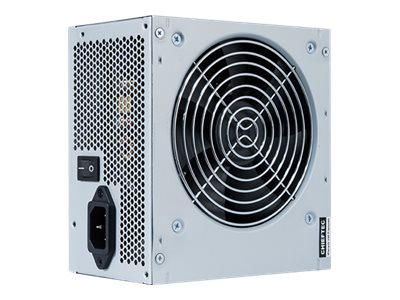

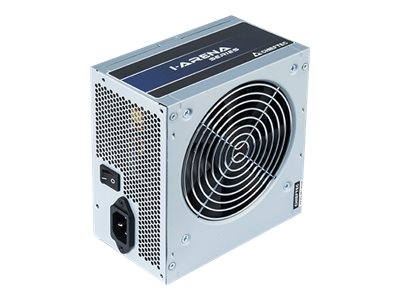

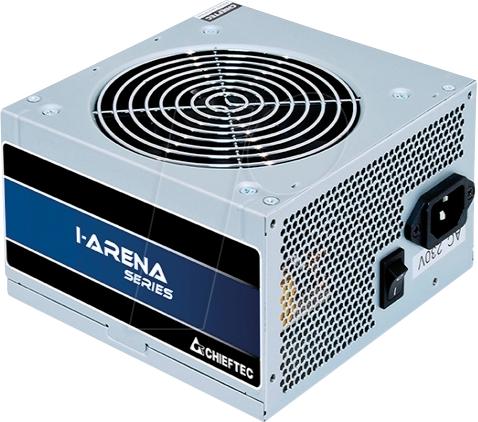

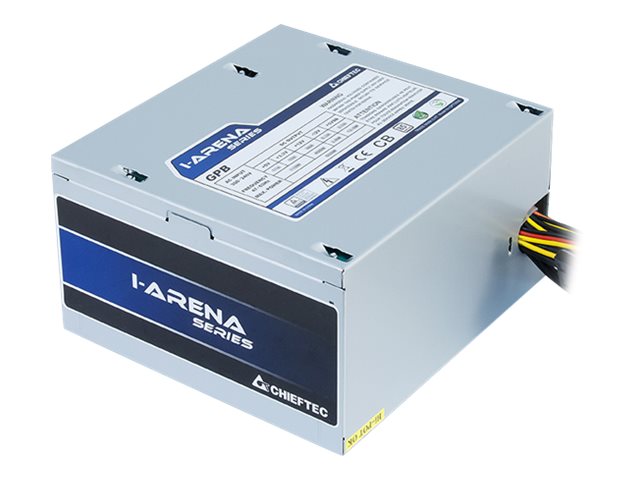

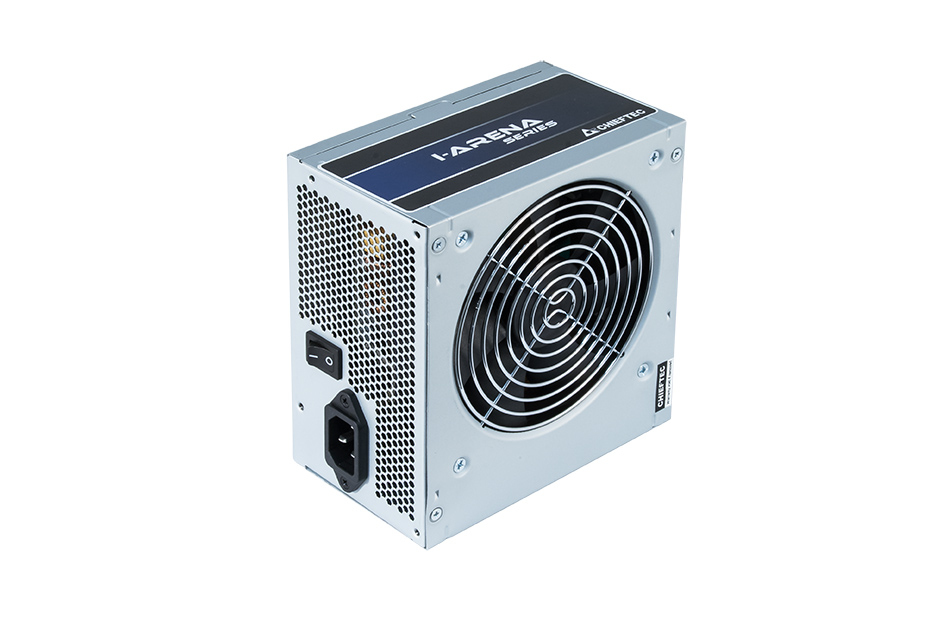

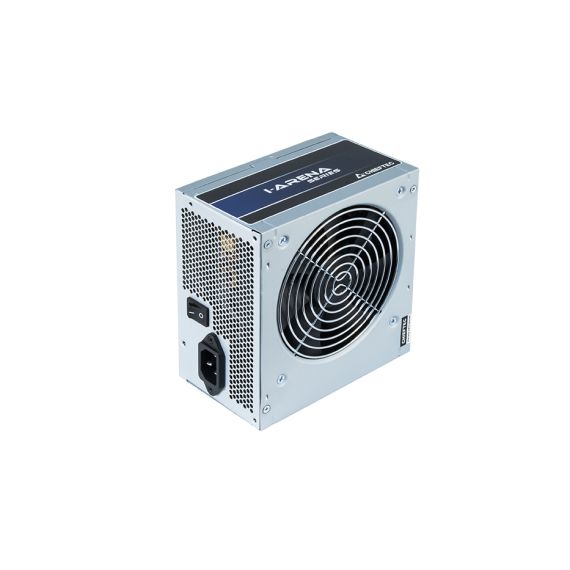

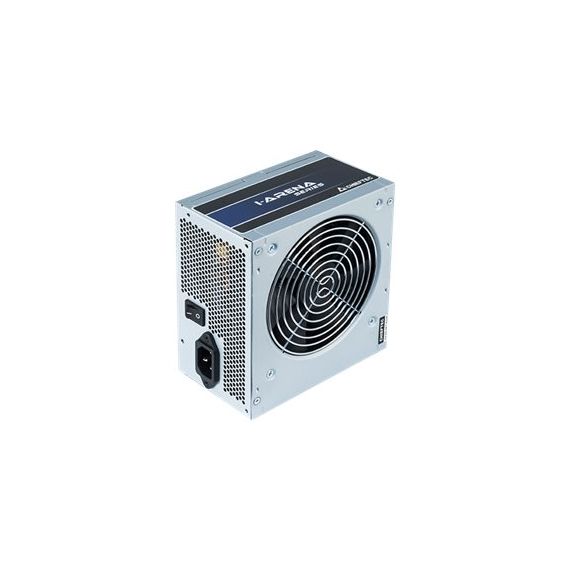

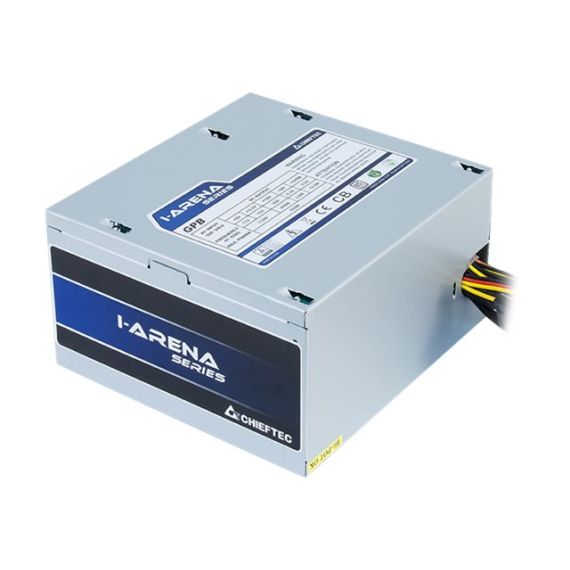

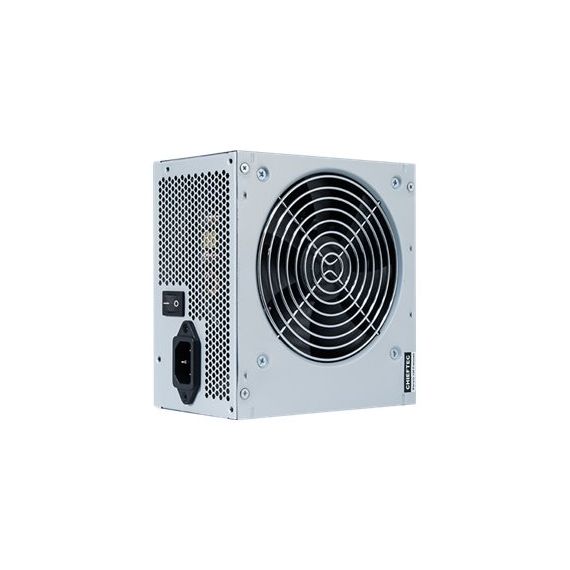

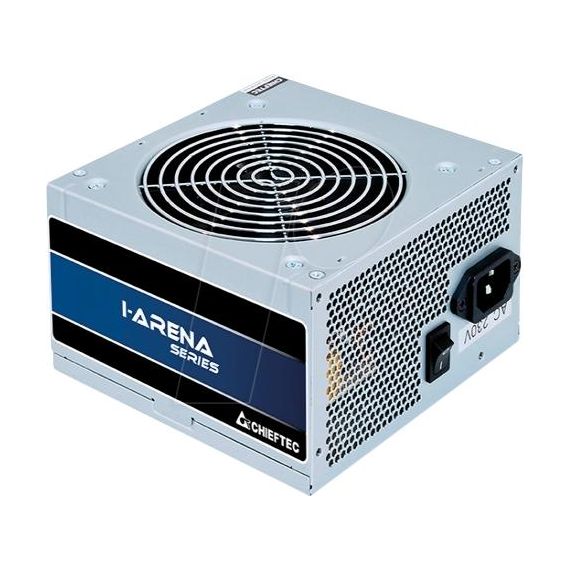

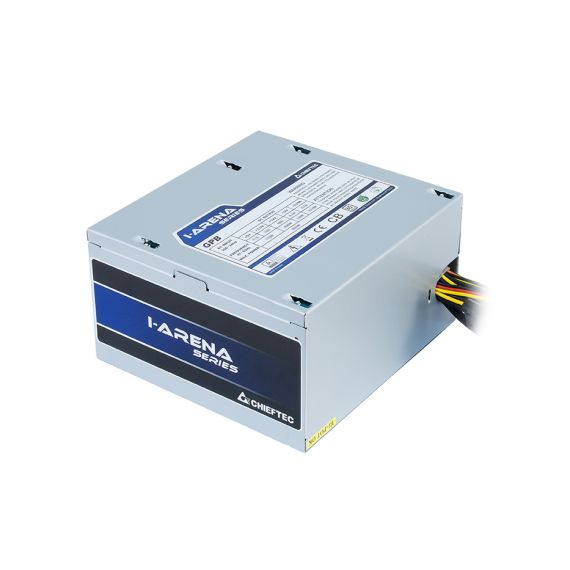

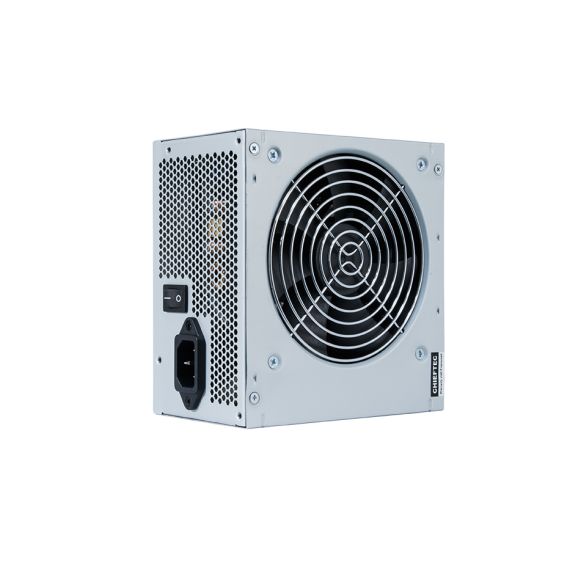

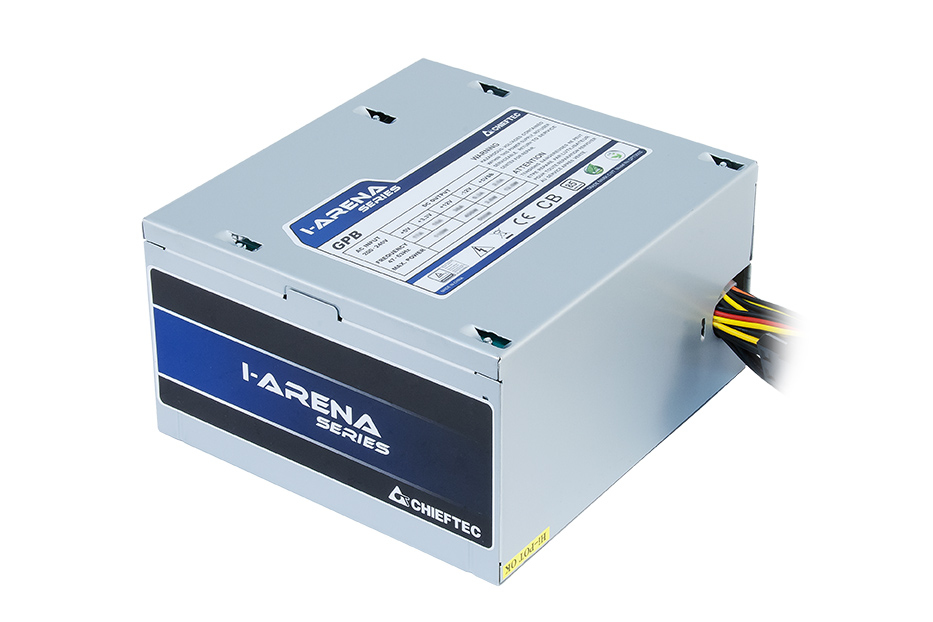

Chieftec iARENA GPB-500S / Power supply (internal) / ATX12V 2.3/ PS/2 / 80 PLUS Bronze / AC 230 V / 500 Watt / active PFC | GPB-500S
GPB-500S
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V 2.3/ PS/2 |
| PSU Form Factor | ATX |
| Power Device | |
| Input Voltage | AC 230 V |
| Input Voltage Range | AC 200 - 240 V |
| Frequency Required | 47 - 63 Hz |
| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section <br /> 1 x power 4 pin ATX12V connector <br /> 5 x 15 pin Serial ATA power <br /> 3 x 4 PIN internal power <br /> 1 x 8 pin PCI Express power with detachable 2 pin section |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 500 Watt |
| Output Current | +5V - 17 A <br /> +3.3V - 18 A <br /> +12V1 - 38 A <br /> -12V - 0.3 A <br /> +5VSB - 2.5 A |
| 80 PLUS Certification | 80 PLUS Bronze |
| Miscellaneous | |
| Cooling System | 120 mm fan |
| Features | Over voltage protection, overload protection, undervoltage protection, short-circuit protection, fan speed control, non-modular |
| Compliant Standards | TUV, CB, RoHS, EuP Ready |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Dimensions & Weight | |
| Width | 15 cm |
| Depth | 14 cm |
| Height | 8.7 cm |
Features - Chieftec - GPB-500S
More Details
Product Code
05:233772
EAN Code
4710713233645
Manufacturer
Chieftec
