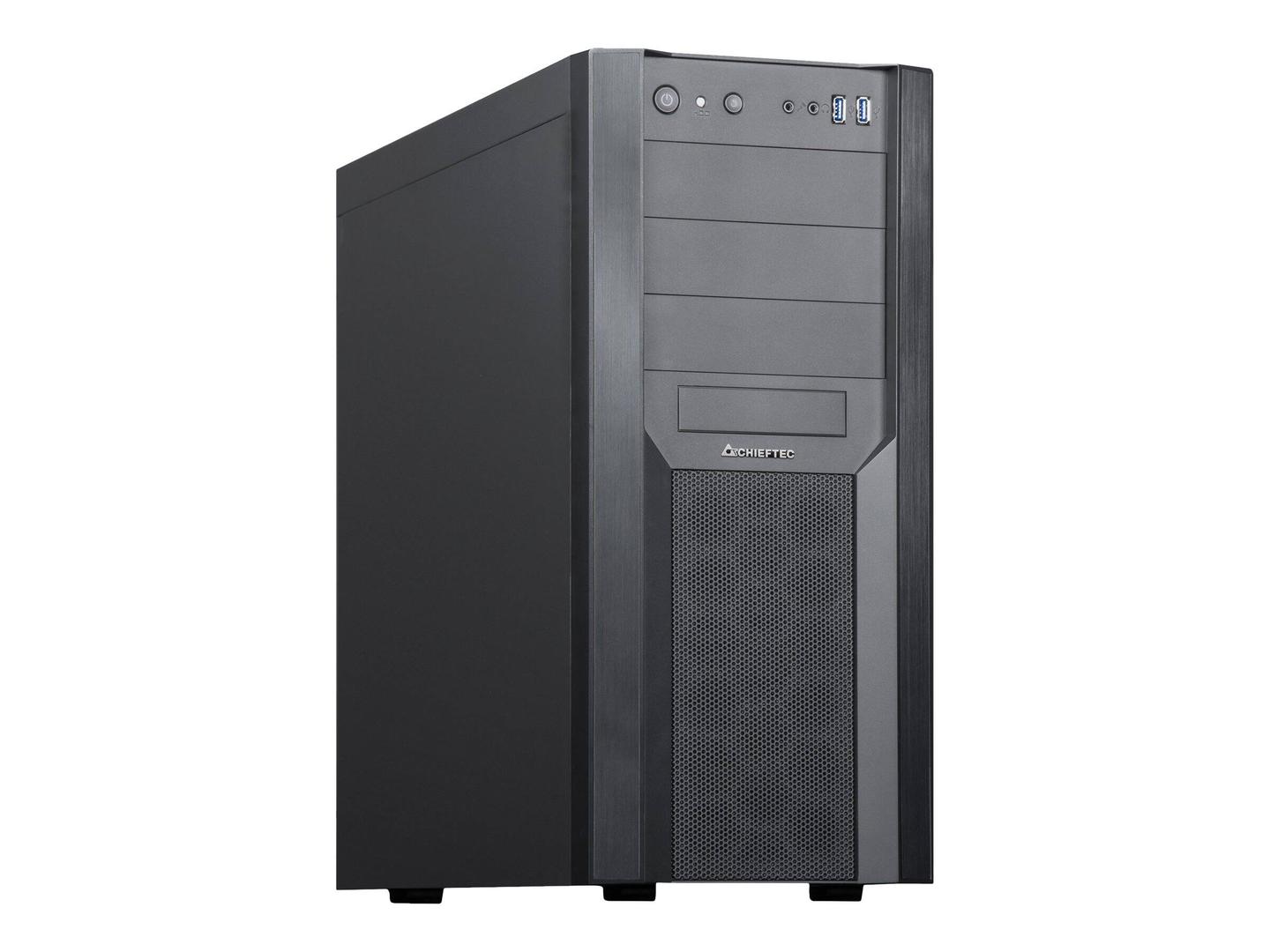

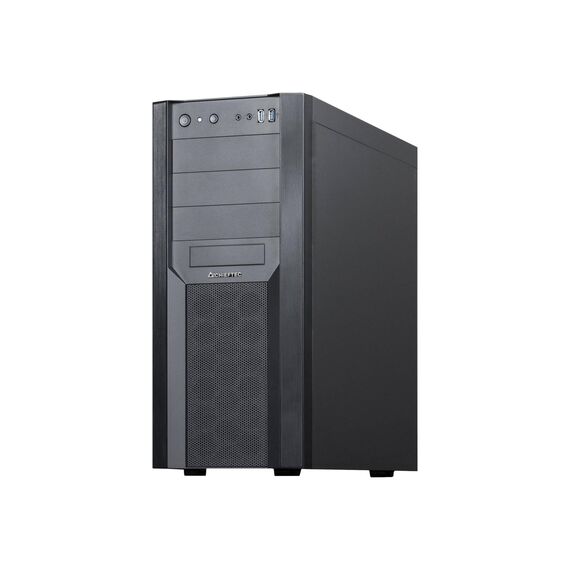

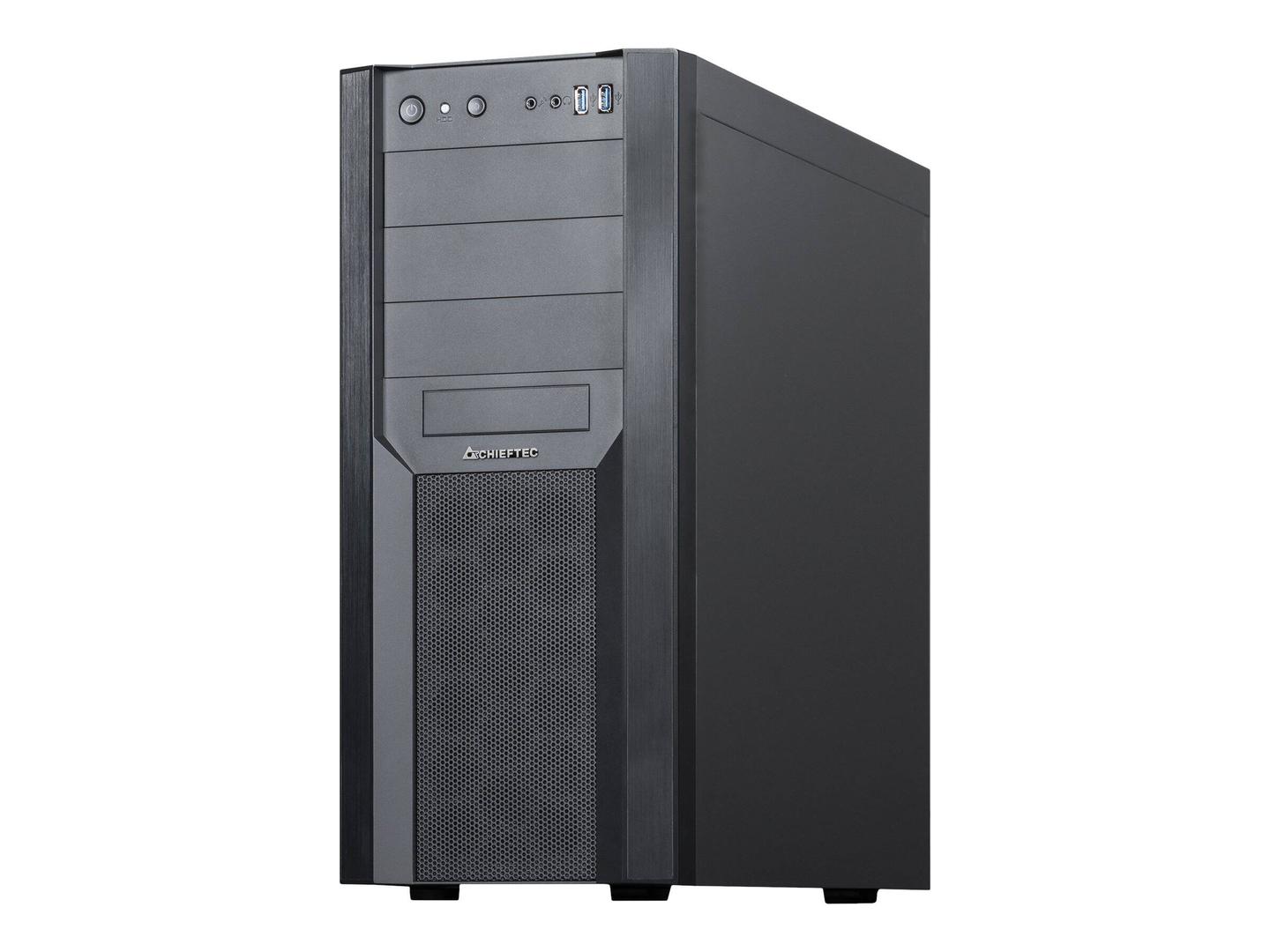

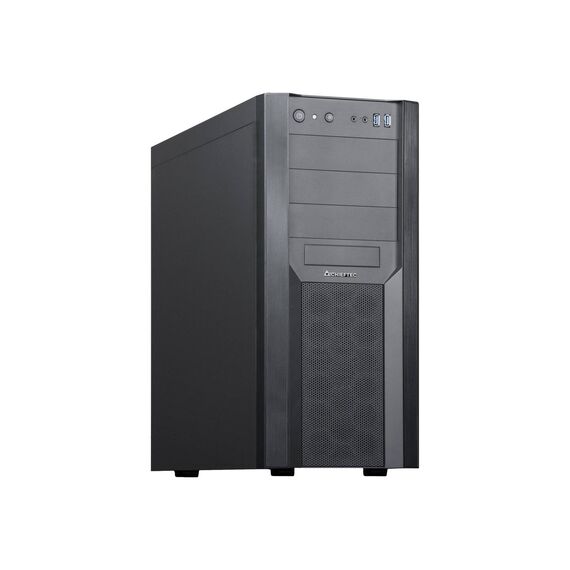

Chieftec Mesh Series CW-01B-OP - Tower - ATX - no power supply (ATX) - black - USB/Audio | CW-01B-OP
Chieftec Mesh Series CW-01B-OP - Tower - ATX - no power supply (ATX) - black - USB/Audio | CW-01B-OP
€188.82 inc. VAT
CW-01B-OP
Product Code04:342635
ManufacturerChieftec
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Special Fetures
- Tool-less installation of external and internal drives
- Diverse cooling options and drive bays for modern workstations
- Elegant design combining brushed aluminum and mesh features
Product Specification
| Form Factor | Tower |
| Max Mainboard Size | ATX |
| Supported Motherboards | ATX, microATX, Mini-ITX |

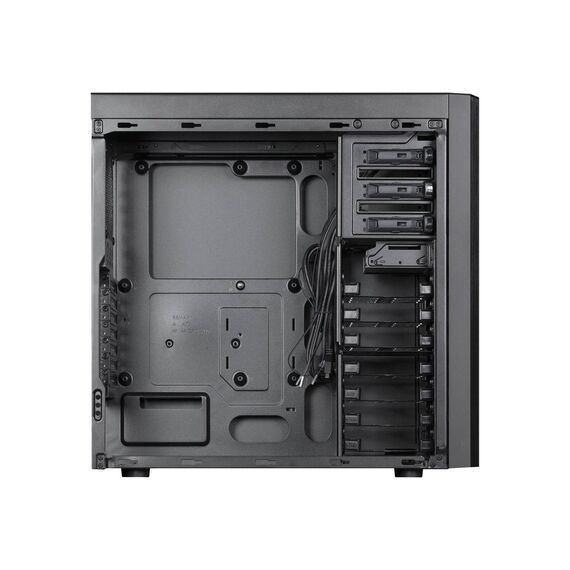

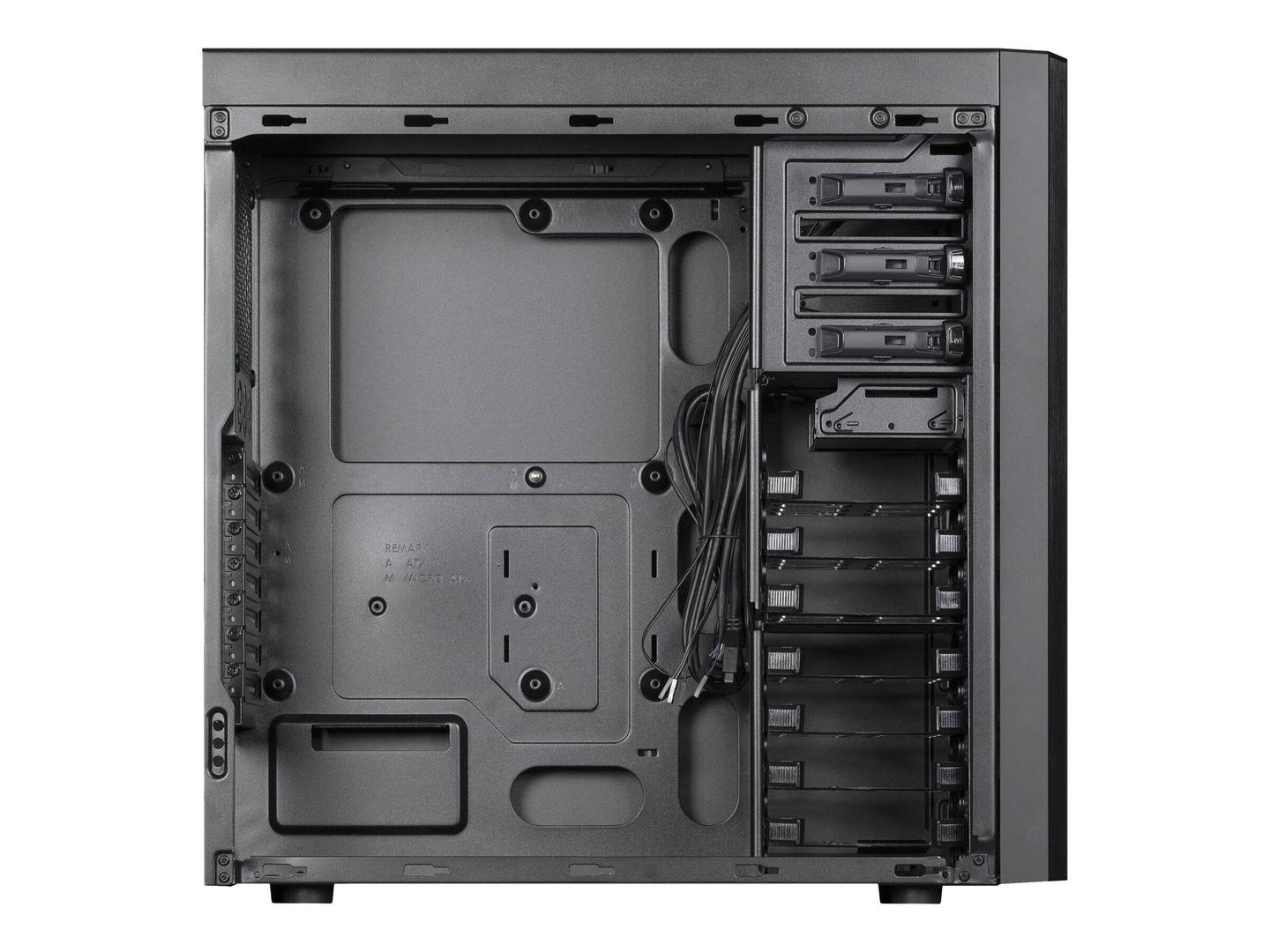

| Internal Bays Qty | 7 |
| Front Accessible Bays Qty | 4 |
| Product Material | SPCC steel |
| Colour | Black |
| Cooling System | Front: 120 mm fan mount x 2 ¦ Rear: 120 mm fan mount x 1 ¦ Top: 120/140 mm fan mount x 2 ¦ Bottom: 120/140 mm fan mount x 1 |
| CPU Cooler Max Height | 165 mm |
| Video Card Max Length | 270 mm |
| System Cabinet Features | Front dust filter, supports 280 mm radiator in top, bottom magnetic dust filter, top magnetic dust filter |
| Expansion / Connectivity | |

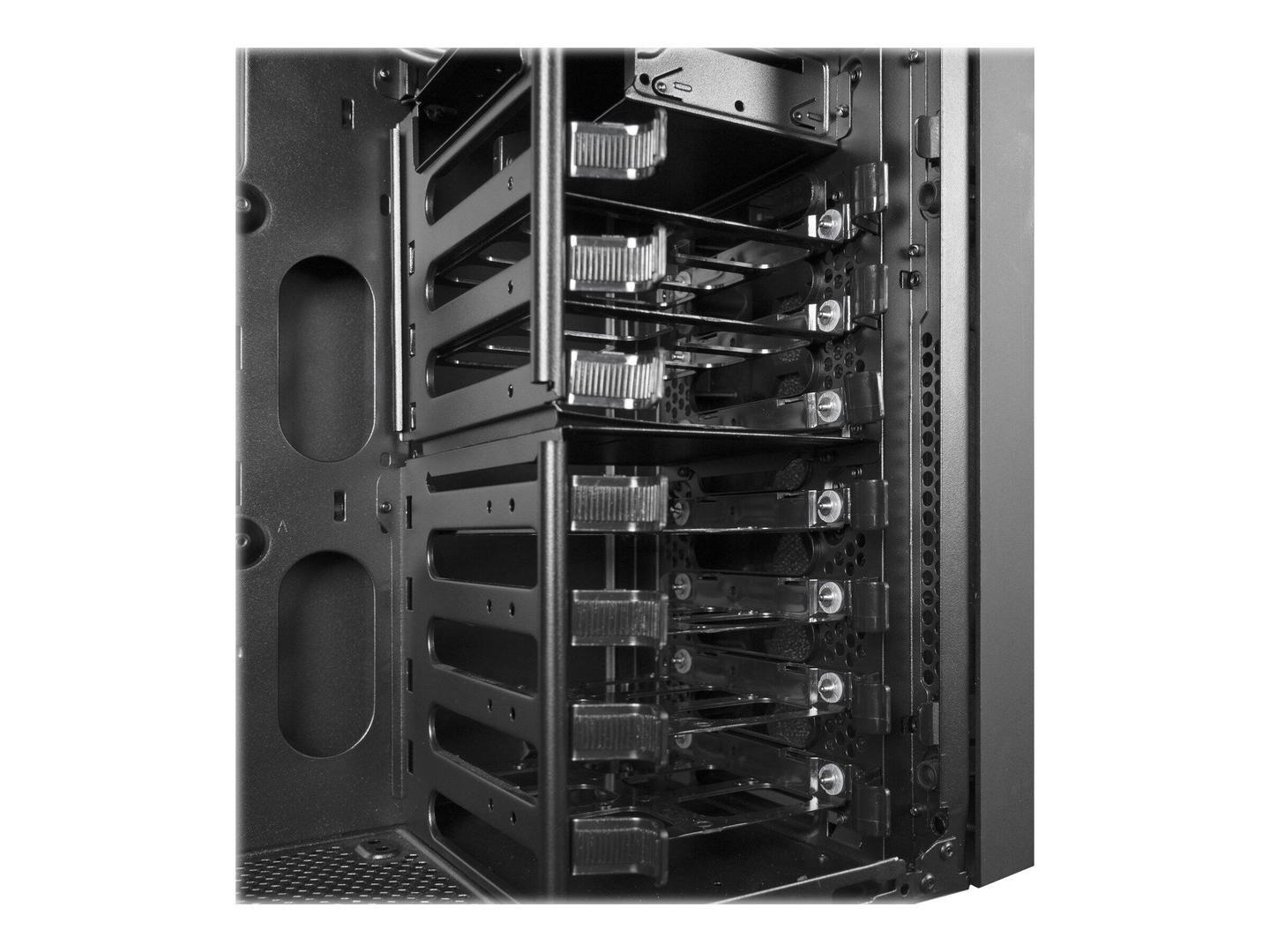

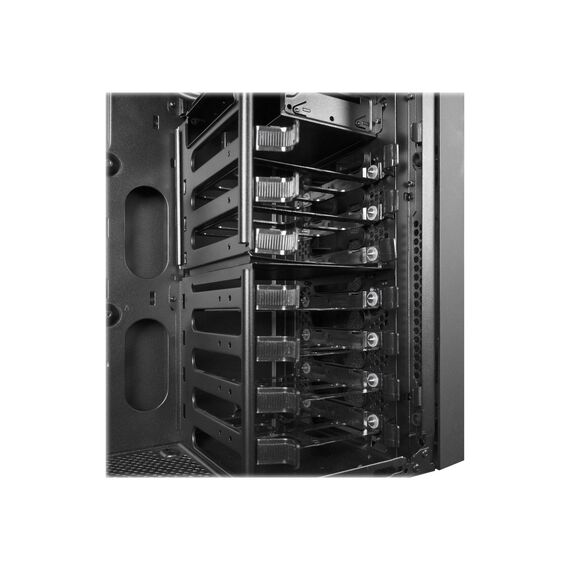

| Expansion Bays | 3 (total) / 3 (free) x front accessible - 5.25" ¦ 1 (total) / 1 (free) x front accessible - 3.5" ¦ 7 (total) / 7 (free) x internal - 2.5" / 3.5" shared |

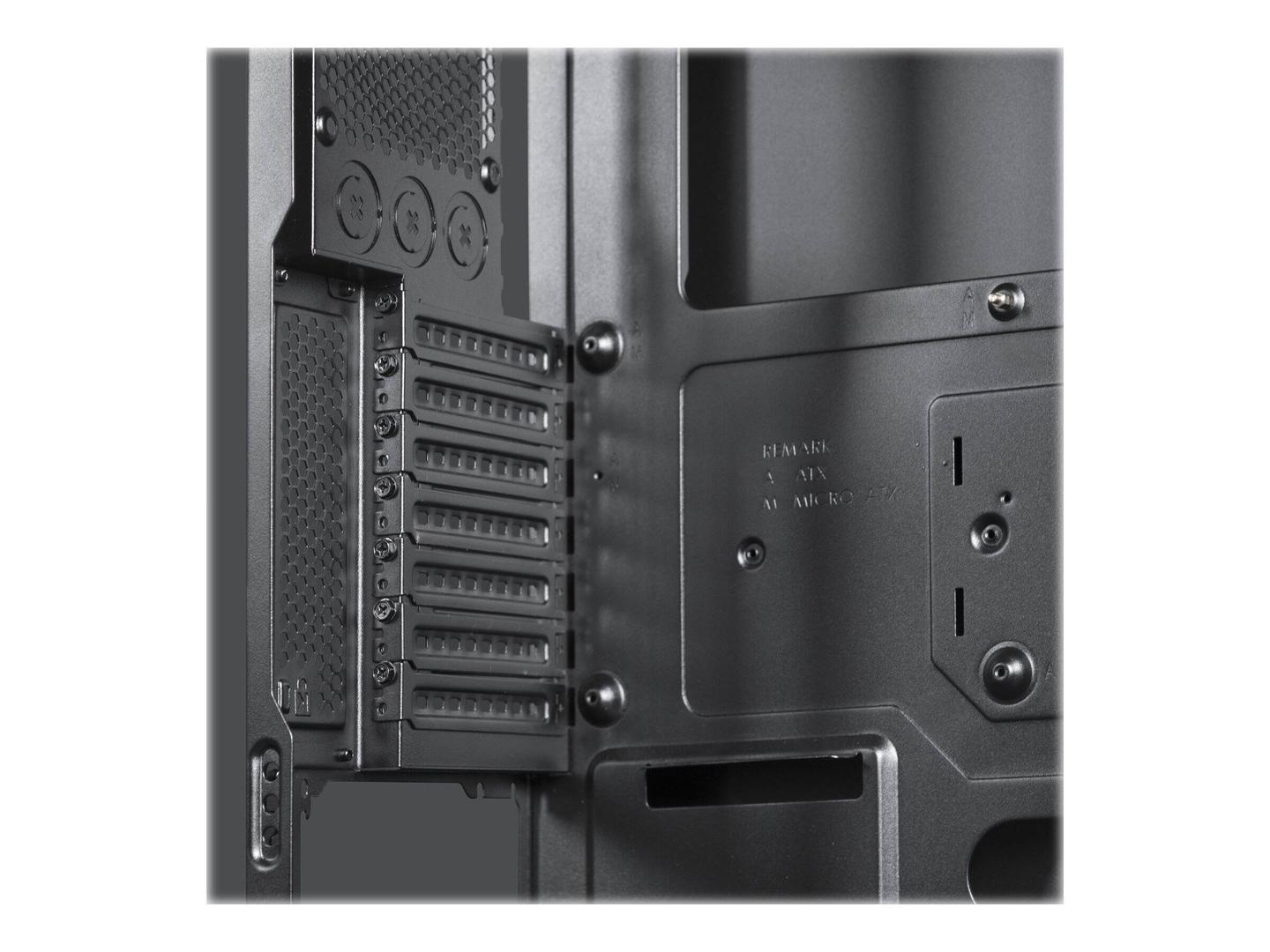

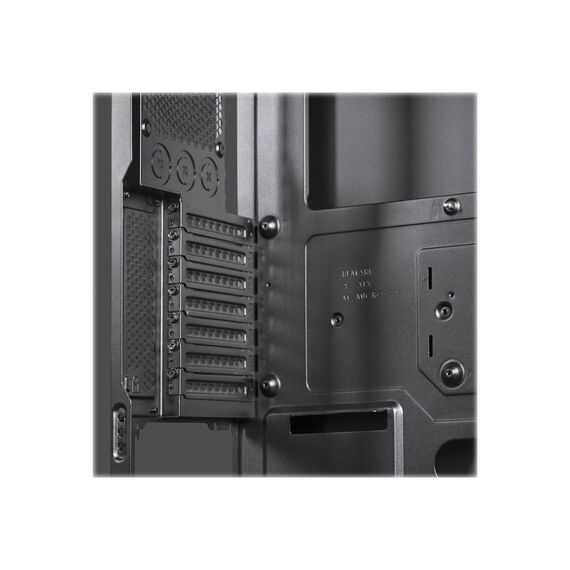

| Expansion Slots | 7 |
| Interfaces | 2 x USB 3.1 Gen 1 ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack |
| Power | |
| Power Device | No power supply |
| Specification Compliance | ATX |
| Dimensions & Weight | |
| Width | 21 cm |
| Depth | 49 cm |
| Height | 47.1 cm |
| Weight | 6.8 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
