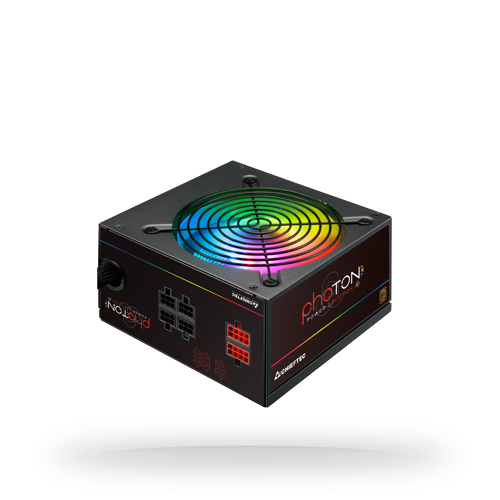

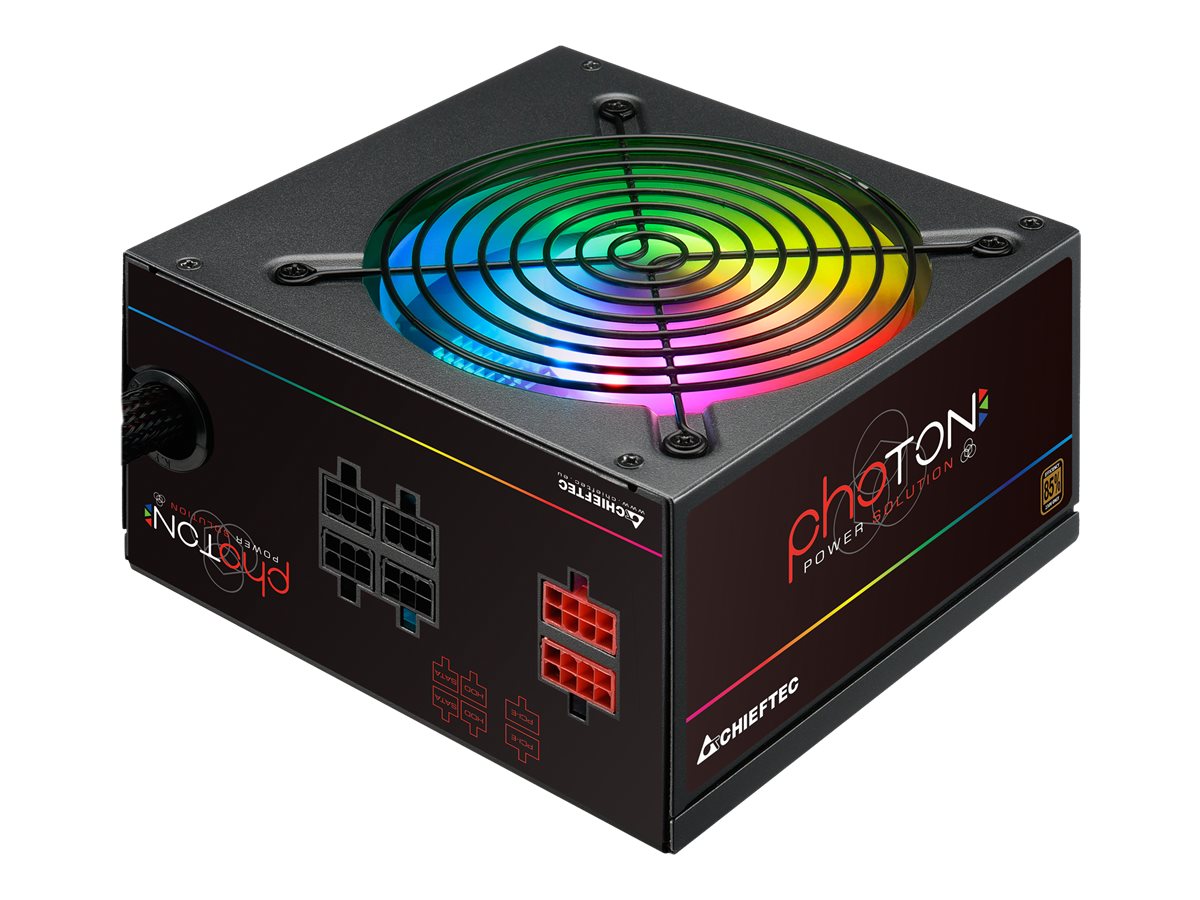

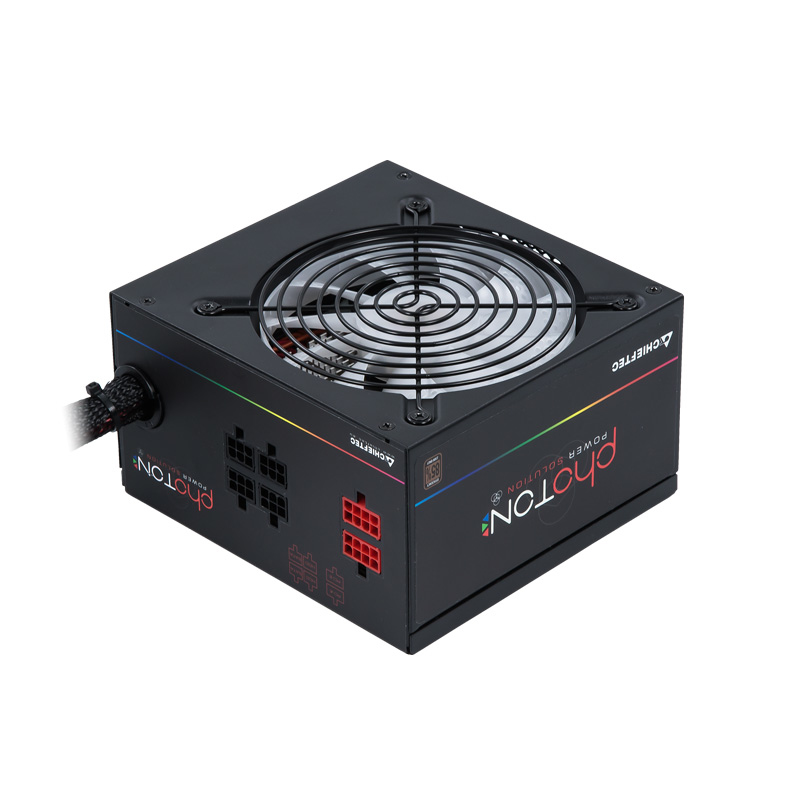

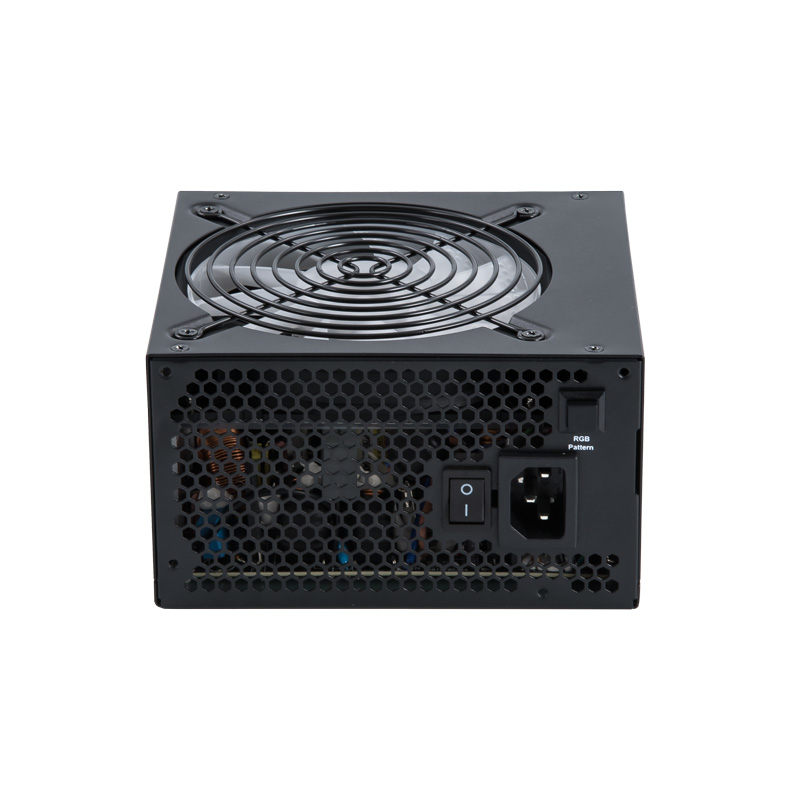

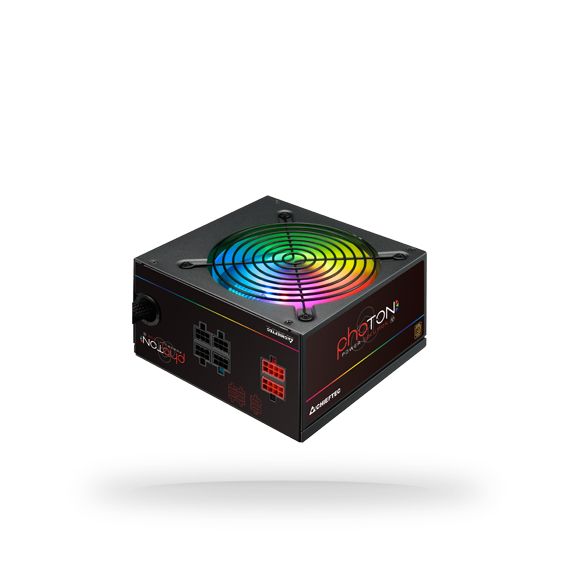

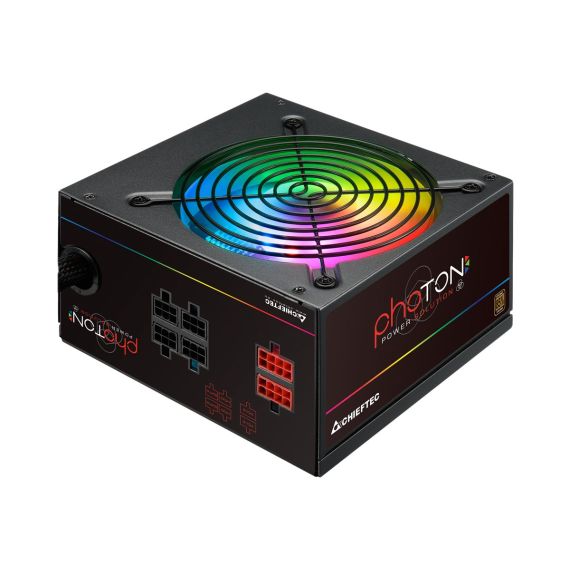

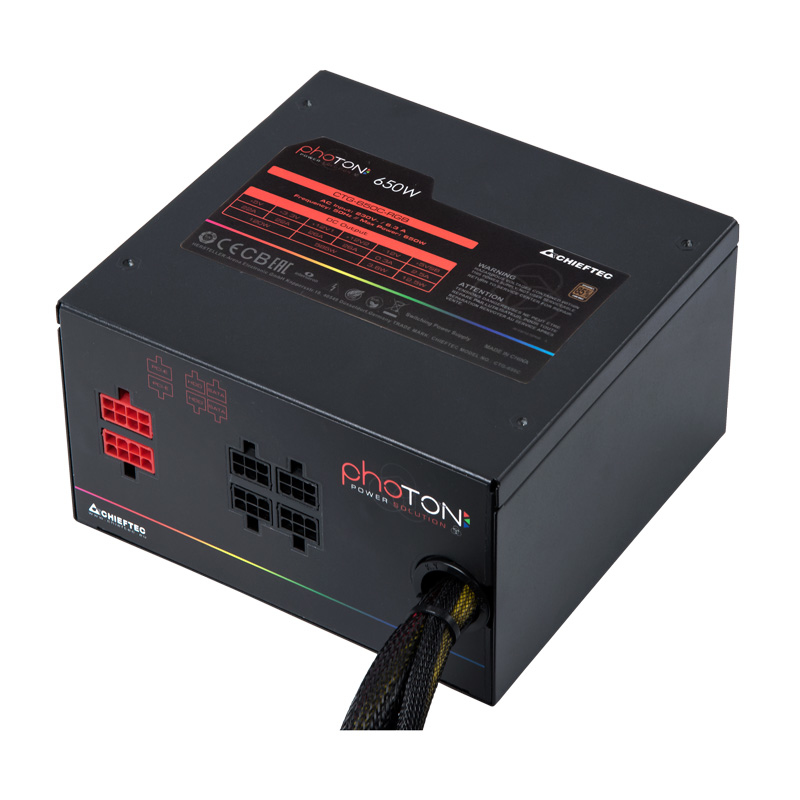

Chieftec Photon Series CTG-650C-RGB / Power supply (internal) / ATX12V 2.3/ EPS12V / AC 230 V / 650 Watt / active PFC | CTG-650C-RGB
CTG-650C-RGB
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Special Fetures
- Supports all renowned RGB synchronization systems

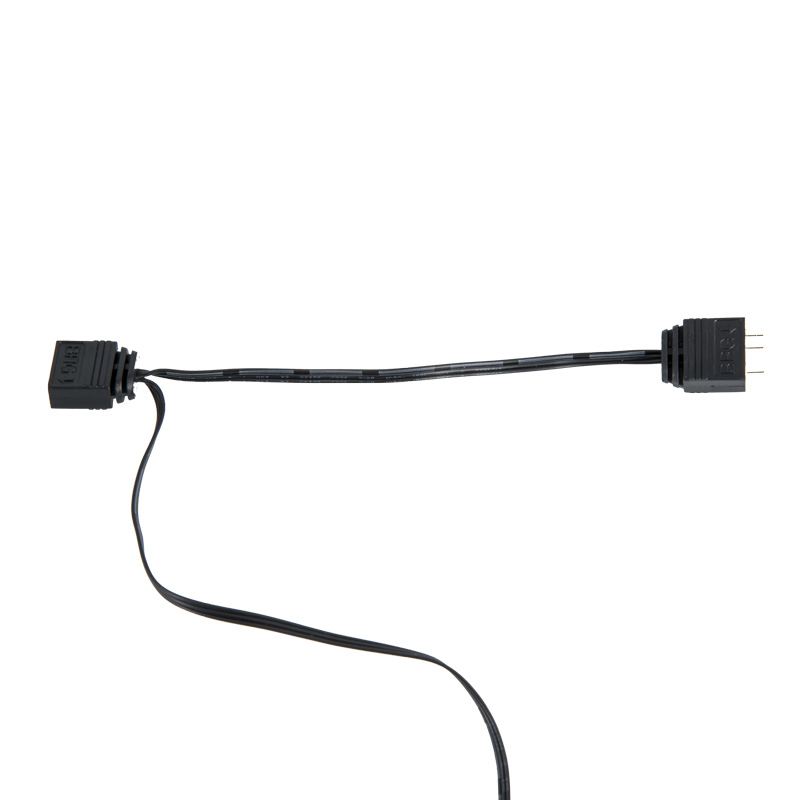

- Rainbow RGB fan with a +5V addressable LED connector
- High-Performance (85% Eff. @230V) RGB Gaming
Product Specification
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V 2.3/ EPS12V |
| PSU Form Factor | ATX |
| Power Device | |
| Input Voltage | AC 230 V |
| Frequency Required | 50 Hz |

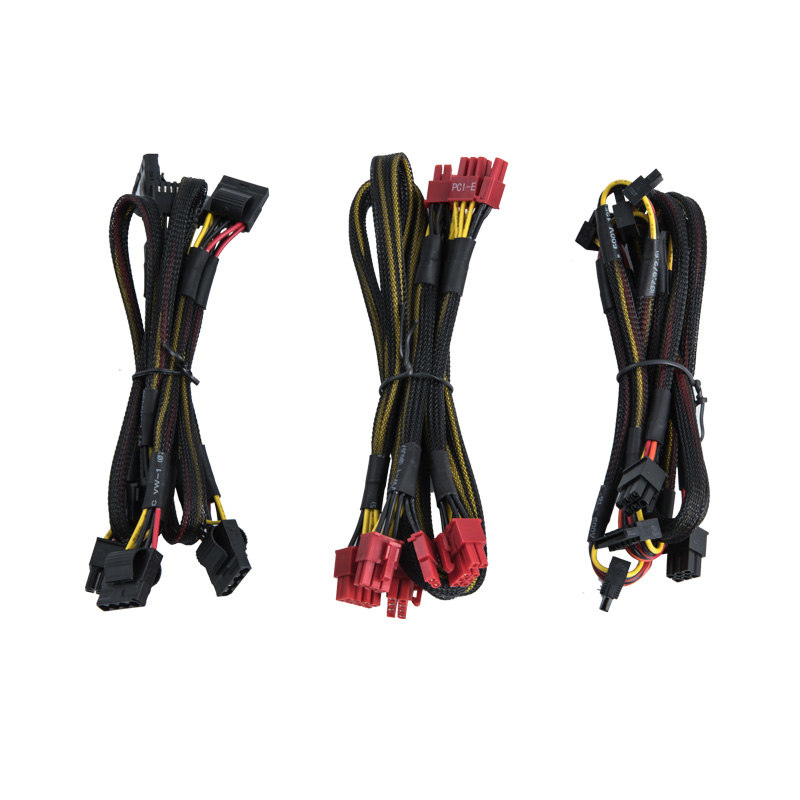

| Power Output Connectors Details | 1 x power 24 pin ATX <br /> 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section <br /> 4 x 8 pin PCI Express power with detachable 2 pin section <br /> 4 x 4 PIN internal power <br /> 6 x 15 pin Serial ATA power <br /> 2 x 4 PIN mini-power connector <br /> 1 x RGB LED controller |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 650 Watt |
| Output Current | +5V - 22 A <br /> +3.3V - 22 A <br /> +12V1 - 26 A <br /> +12V2 - 26 A <br /> +5VSB - 2.5 A <br /> -12V - 0.3 A |
| Efficiency | 85% |
| Power Factor (PF) | 0.9 |
| Modular Cable Management | Yes |
| Miscellaneous | |

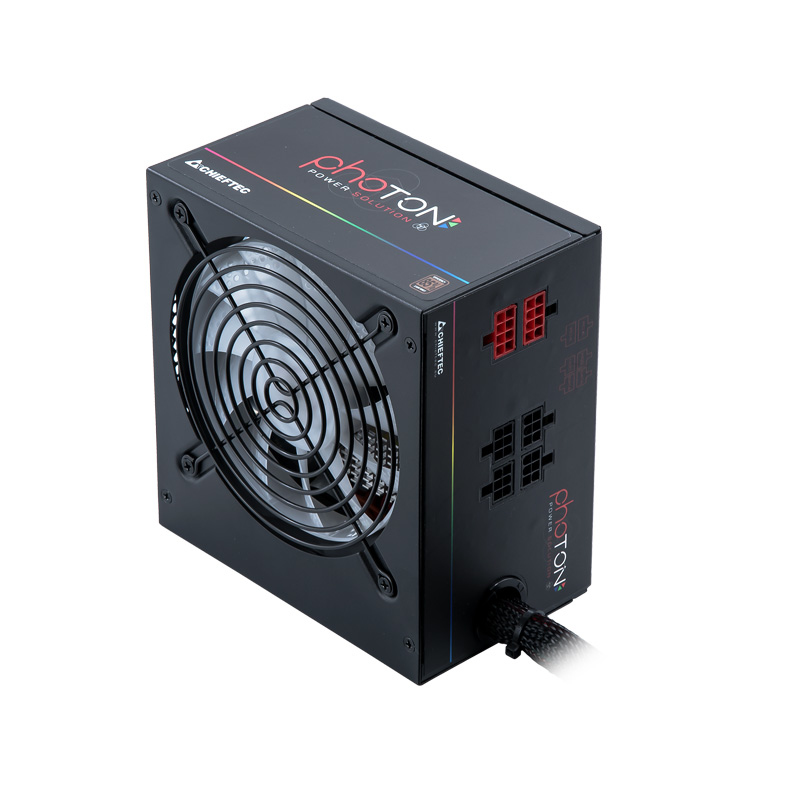

| Cooling System | 120 mm fan |
| Features | Semi-modular, 16.8 million colours RGB fan, undervoltage protection, over voltage protection, short-circuit protection, overpower protection, fan speed control, surge & inrush protection |
| Compliant Standards | RoHS, CB, EAC, TUV Rheinland, ErP Ready |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Dimensions & Weight | |
| Width | 15 cm |
| Depth | 14 cm |
| Height | 8.7 cm |
| Weight | 2.14 kg |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 2.54 kg |
Features - Chieftec - CTG-650C-RGB
More Details
Product Code
05:233762
EAN Code
0753263075918
Manufacturer
Chieftec
