Power supply Chieftec Polaris Series 550W / ATX12V 2.4/ EPS12V / 80 PLUS Gold / AC 100-240 V / 550 Watt / active PFC | PPS-550FC
Chieftec Polaris Series 550W / Power supply (internal) / ATX12V 2.4/ EPS12V / 80 PLUS Gold / AC 100-240 V / 550 Watt / active PFC | PPS-550FC
Description
The Polaris series brings CHIEFTEC's trusted and proven experience with high quality, 80 PLUS Gold certified, fully modular power supplies back to the forefront of modern technology. Polaris series PSU's feature state-of-the-art technical design including LLC half-bridge converter with DC-to-DC technology, as well as high power-density to allow higher efficiency and power output with a more compact size.With the size of only 140 mm in length and fully modular cable management, the Polaris series is easy to install in any system for standard ATX PSU. Cable lengths of 650 mm ensure that these power-supplies can be used even in large builds. Whether a small PSU housing for compact system is needed or longer cables for large systems, the Polaris series can be trusted to do the job with top performance and efficiency.
Chieftec Polaris Series 550W / Power supply (internal) | PPS-550FC
Special Features
- 80 PLUS Gold certified efficiency
- Fully modular cable management
- High power density design for compact size
- LLC half-bridge converter with DC-to-DC technology
Product Specification
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V 2.4/ EPS12V |
| PSU Form Factor | ATX |
| Input Voltage | AC 100-240 V |
| Frequency Required | 50 - 60 Hz |

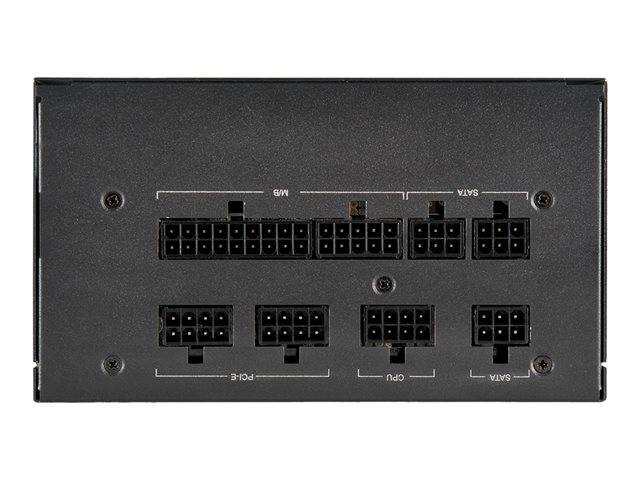

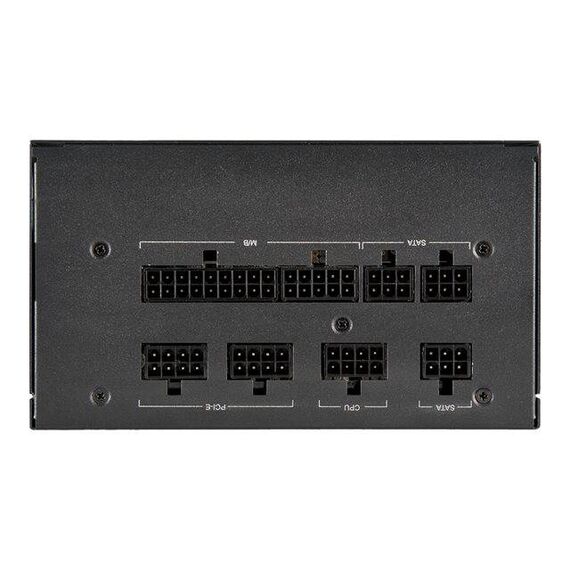

| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 2 x 8 pin PCI Express power with detachable 2 pin section ¦ 3 x 4 PIN internal power ¦ 6 x 15 pin Serial ATA power ¦ 1 x 4 PIN mini-power connector |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 550 Watt |
| Output Current | +5V - 20 A ¦ +3.3V - 20 A ¦ +12V1 - 45.8 A ¦ +5VSB - 3 A ¦ -12V - 0.3 A |
| Modular Cable Management | Yes |
| 80 PLUS Certification | 80 PLUS Gold |
| Cooling System | 120 mm fan |
| Features | Overheat protection, over current protection, over voltage protection, overload protection, undervoltage protection, short-circuit protection, DC-DC technology, fully modular, Automatic Fanspeed Control (AFC), Surge & Inrush Protection (SIP) |
| Compliant Standards | CB, RoHS, ErP Ready, EAC, TUV Rheinland |
| Service & Support | Limited warranty - 2 years |
| Width | 15 cm |
| Depth | 14 cm |
| Height | 8.7 cm |
| Weight | 2.025 kg |
| Shipping Weight | 2.33 kg |
