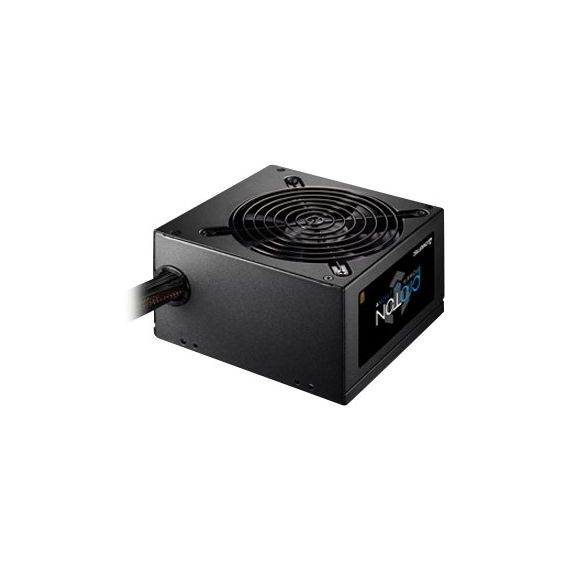

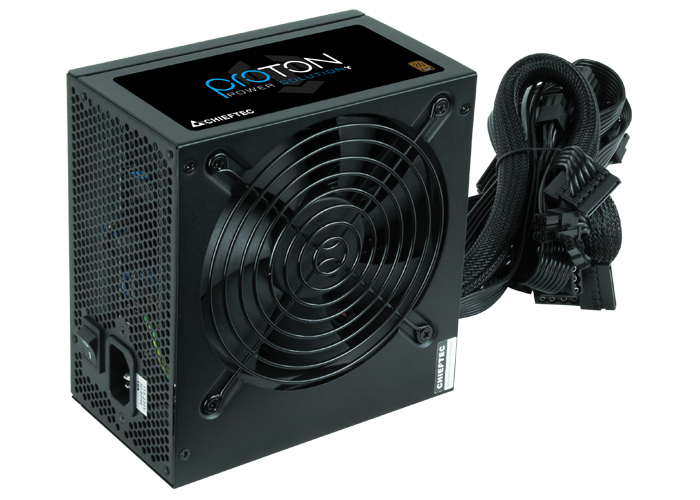

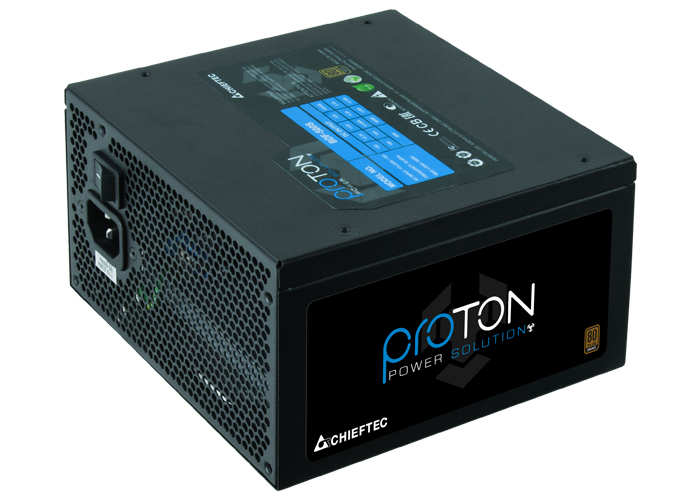

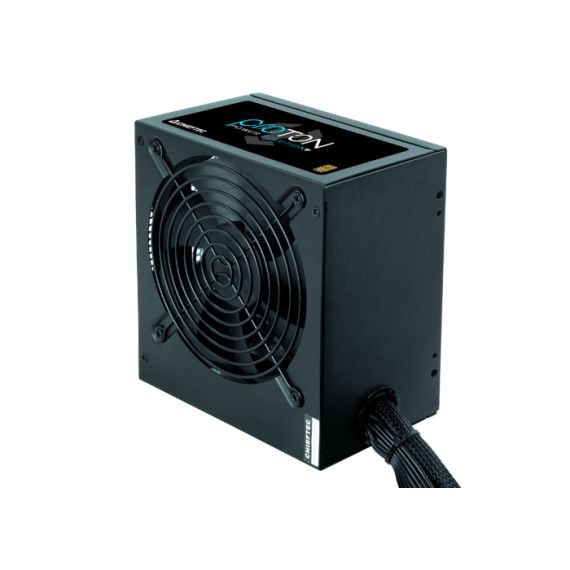

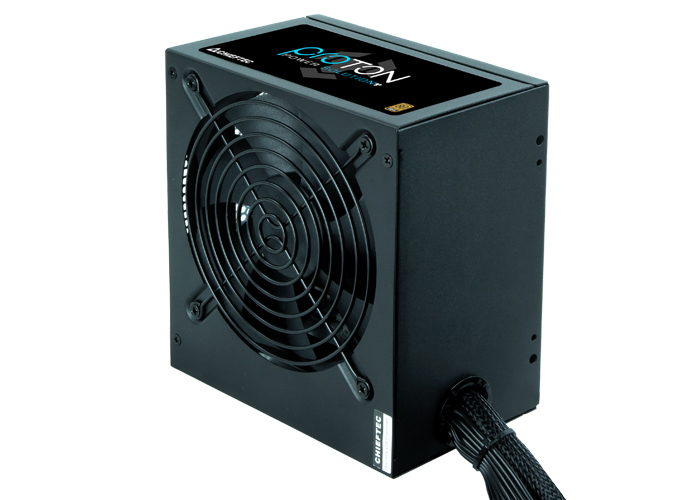

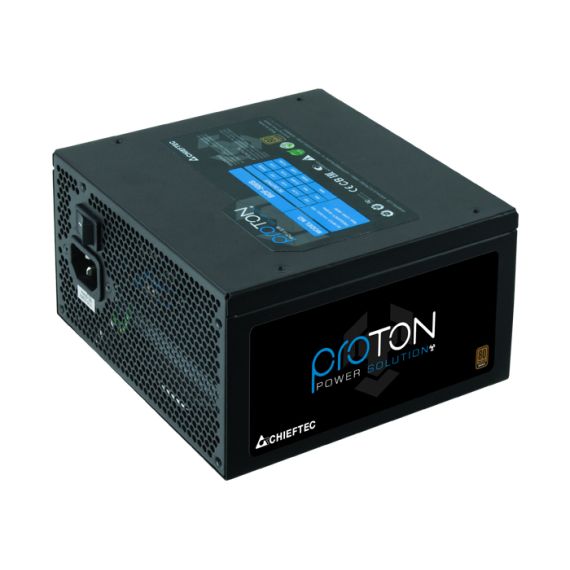

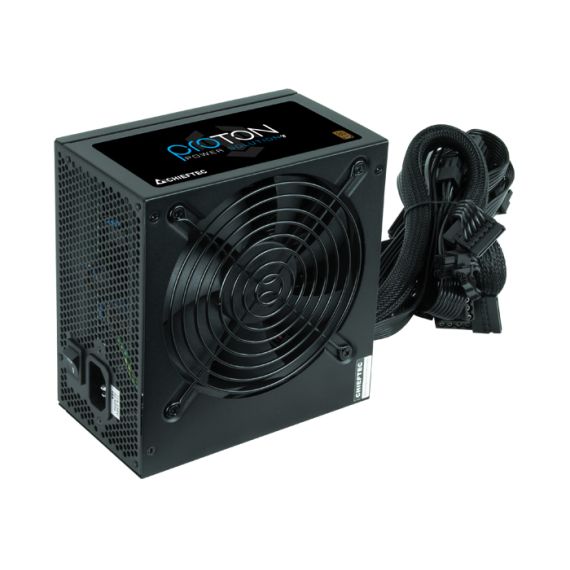

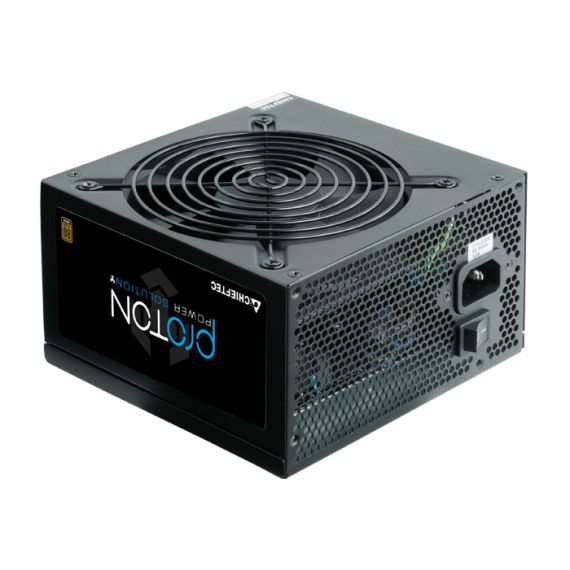

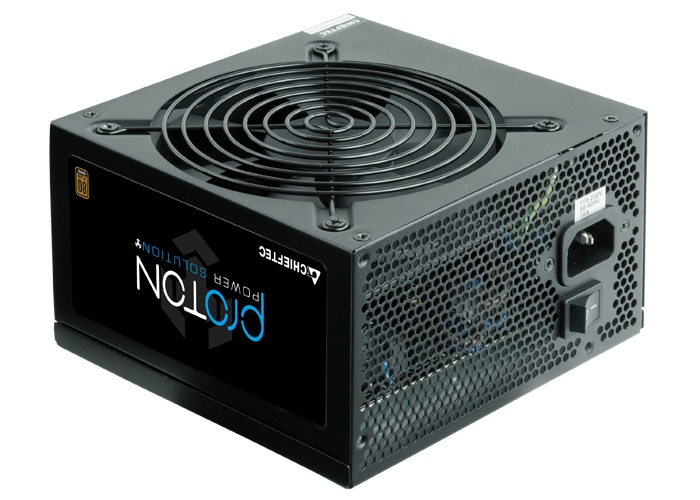

Chieftec Proton Series BDF-400S / Power supply (internal) / ATX12V 2.3 / 80 PLUS Bronze / AC 115-230 V / 400 Watt / active PFC | BDF-400S
BDF-400S
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V 2.3 |
| PSU Form Factor | ATX |
| Power Device | |
| Input Voltage | AC 115-230 V |
| Frequency Required | 50 - 60 Hz |
| Power Output Connectors Details | 1 x power 24 pin ATX <br /> 4 x 15 pin Serial ATA power <br /> 2 x 4 PIN internal power <br /> 1 x power 4 pin ATX12V connector <br /> 1 x 6 pin PCI Express power |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 400 Watt |
| Output Current | +5V - 18 A <br /> +3.3V - 18 A <br /> +12V1 - 33.36 A <br /> -12V - 0.3 A <br /> +5VSB - 2.5 A |
| Efficiency | 85% |
| Power Factor (PF) | 0.9 |
| 80 PLUS Certification | 80 PLUS Bronze |
| Miscellaneous | |
| Cooling System | 120 mm fan |
| Features | Over voltage protection, overload protection, undervoltage protection, short-circuit protection, single 12V rail, DC-DC technology, fan speed control |
| Compliant Standards | TUV, CB, RoHS, ERP |
| Environmental Standards | |
| ENERGY STAR | Yes |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Dimensions & Weight | |
| Width | 15 cm |
| Depth | 14 cm |
| Height | 8.7 cm |
Features - Chieftec - BDF-400S
More Details
Product Code
05:233428
EAN Code
4710713231252
Manufacturer
Chieftec
