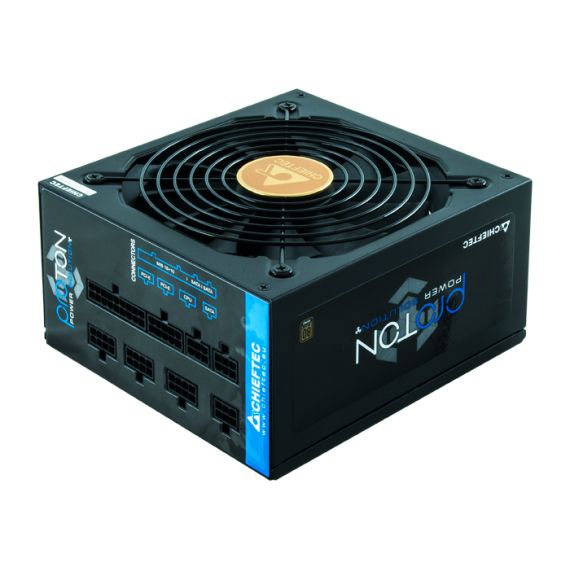

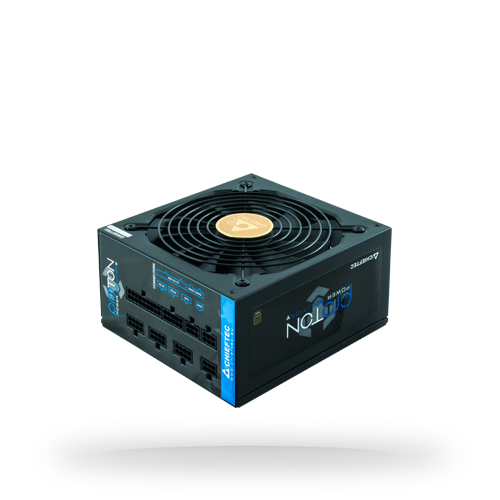

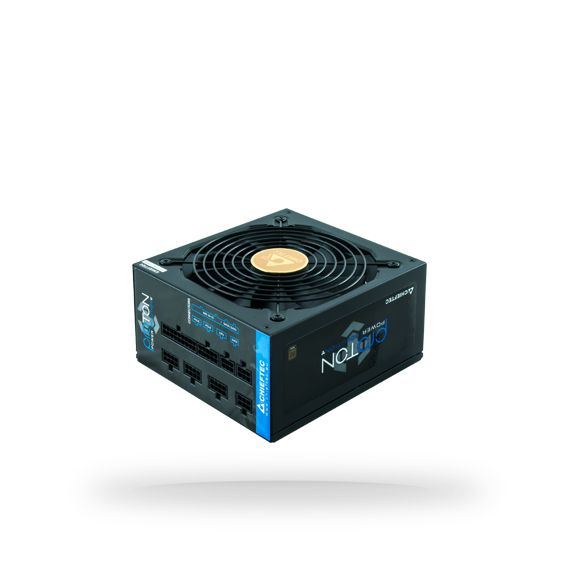

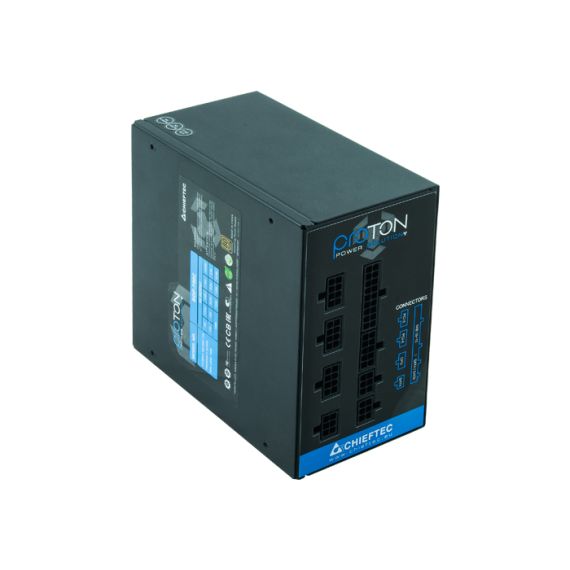

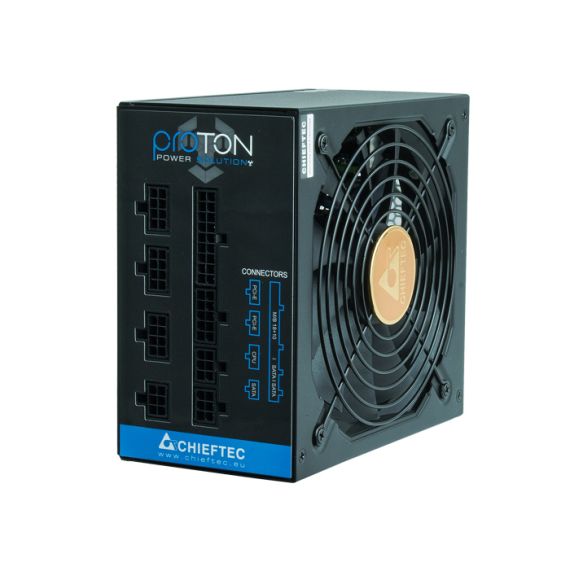

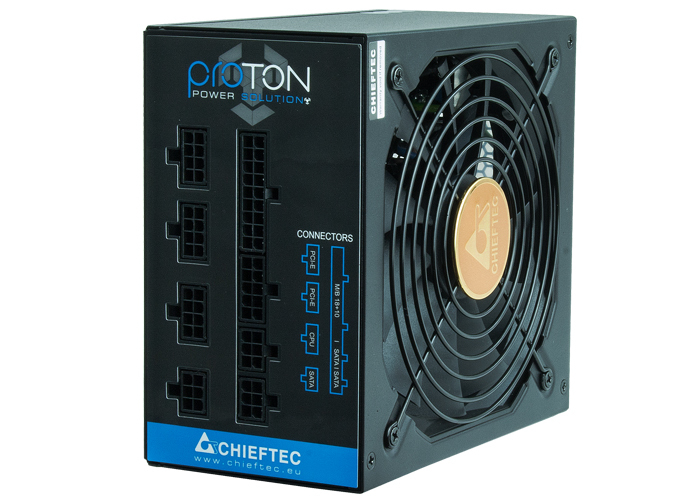

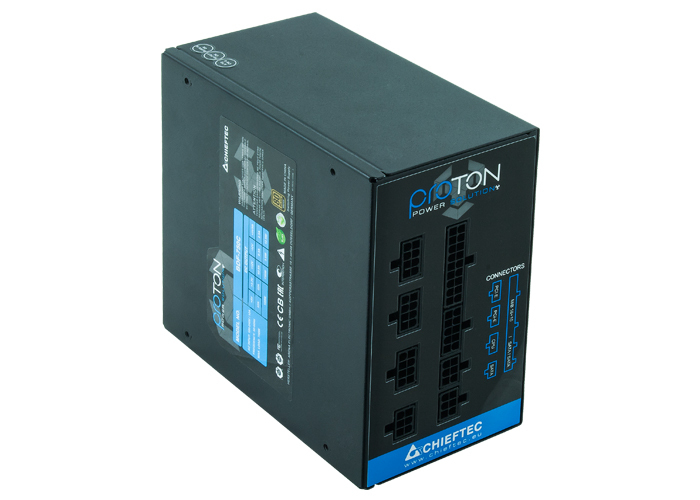

Chieftec Proton Series BDF-650C / Power supply (internal) / ATX12V 2.3 / 80 PLUS Bronze / AC 115-230 V / 650 Watt / active PFC | BDF-650C
BDF-650C
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V 2.3 |
| PSU Form Factor | ATX |
| Power Device | |
| Input Voltage | AC 115-230 V |
| Frequency Required | 50 - 60 Hz |
| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section <br /> 6 x 15 pin Serial ATA power <br /> 3 x 4 PIN internal power <br /> 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section <br /> 4 x 8 pin PCI Express power with detachable 2 pin section <br /> 1 x 4 PIN mini-power connector |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 650 Watt |
| Output Current | +5V - 22 A <br /> +3.3V - 22 A <br /> +12V1 - 54.2 A <br /> -12V - 0.3 A <br /> +5VSB - 2.5 A |
| Efficiency | 85% |
| Power Factor (PF) | 0.9 |
| 80 PLUS Certification | 80 PLUS Bronze |
| Miscellaneous | |
| Cooling System | 140 mm fan |
| Features | Overheat protection, over current protection, over voltage protection, overload protection, undervoltage protection, short-circuit protection, DC-DC technology, fan speed control |
| Compliant Standards | TUV, CB, RoHS, ERP |
| Environmental Standards | |
| ENERGY STAR | Yes |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Dimensions & Weight | |
| Width | 15 cm |
| Depth | 14 cm |
| Height | 8.7 cm |
Features - Chieftec - BDF-650C
More Details
Product Code
05:233425
EAN Code
4710713231283
Manufacturer
Chieftec
