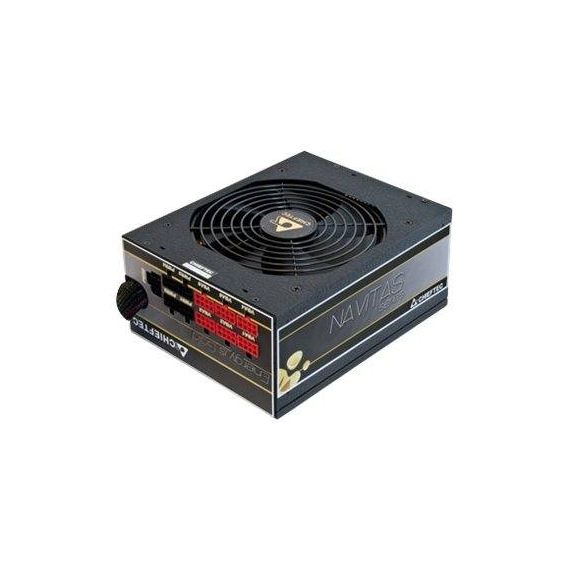

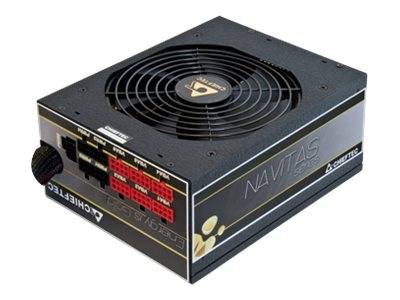

Chieftec NAVITAS GPM-1250C / Power supply ( internal ) / ATX12V 2.3 / 80 PLUS Gold / AC 100-240 V / 1250 Watt / active PFC / black | GPM-1250C
|
Description NAVITAS stands for a new generation of power supplies. The 80PLUS Gold certification guarantees an impressive performance with an efficiency level of 90% for whole power supplier models. The smart cable management with modern +12 V single rail technology supports all components with intensive power consumption, such as multiple GPUs. The Navitas Series are ideal for systems built in with intensive power-consumption components such as powerful graphic cards. Special Features
|
Product Specification
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V 2.3 |
| Colour | Black |
| Input Voltage | AC 100-240 V |
| Frequency Required | 47 - 63 Hz |
| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 12 x 15 pin Serial ATA power ¦ 3 x 4 PIN internal power ¦ 1 x 4 PIN mini-power connector ¦ 6 x 8 pin PCI Express power with detachable 2 pin section |
| Output Voltage | +3.3, +5, ±12 V |
| Max Electric Current | 15 A |
| Power Capacity | 1250 Watt |
| Output Current | +5V - 25 A ¦ +3.3V - 25 A ¦ +12V1 - 104 A ¦ -12V - 0.8 A ¦ +5VSB - 4 A |
| Efficiency | 90%+ |
| 80 PLUS Certification | 80 PLUS Gold |
| Cooling System | 140 mm fan |
| Features | Overheat protection, over voltage protection, SLI ready, overload protection, undervoltage protection, short-circuit protection, single 12V rail, CrossFireX ready, fan speed control |
| Compliant Standards | TUV, CB, FCC, RoHS, WEEE |
| Service & Support | Limited warranty - 2 years |
| Width | 15 cm |
| Depth | 20 cm |
| Height | 8.7 cm |
Features - Chieftec - GPM-1250C
More Details
Product Code
03:497783
EAN Code
4710713230408
Manufacturer
Chieftec
