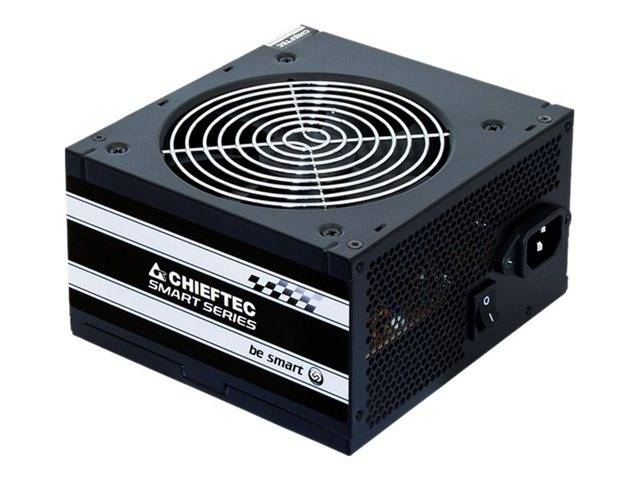

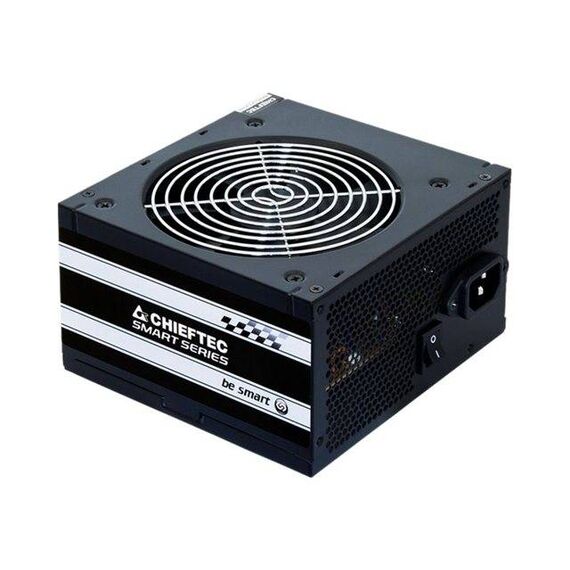

Chieftec Smart Series GPS-500A8 / Power supply ( internal ) / ATX12V 2.3 / 80 PLUS / AC 230 V / 500 Watt / active PFC / black | GPS-500A8
|
Description Today, system integrators do not only require for their PC assembly line, a durable and quality-promising chassis but a highly reliable power supply source as well. Chieftec's power supply units of the Smart Series fulfill these and more requirements. |
Product Specification
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V 2.3 |
| Colour | Black |
| Input Voltage | AC 230 V |
| Frequency Required | 47 - 63 Hz |
| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 4 pin ATX12V connector ¦ 3 x 15 pin Serial ATA power ¦ 2 x 4 PIN internal power ¦ 1 x 4 PIN mini-power connector ¦ 1 x 8 pin PCI Express power with detachable 2 pin section |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 500 Watt |
| Output Current | +3.3V - 22 A ¦ +5V - 19 A ¦ +12V1 - 24 A ¦ +12V2 - 21 A ¦ -12V - 0.3 A ¦ +5VSB - 2.5 A |
| Efficiency | 80% |
| 80 PLUS Certification | 80 PLUS |
| MTBF | 100,000 hours |
| Cooling System | 120 mm fan |
| Features | Sleeved cables , overheat protection, over current protection, over voltage protection, overload protection, undervoltage protection, short-circuit protection |
| Compliant Standards | CB, FCC, RoHS, EuP Ready |
| Width | 15 cm |
| Depth | 14 cm |
| Height | 8.7 cm |
Features - Chieftec - GPS-500A8
More Details
Product Code
03:493158
EAN Code
4710713239531
Manufacturer
Chieftec
