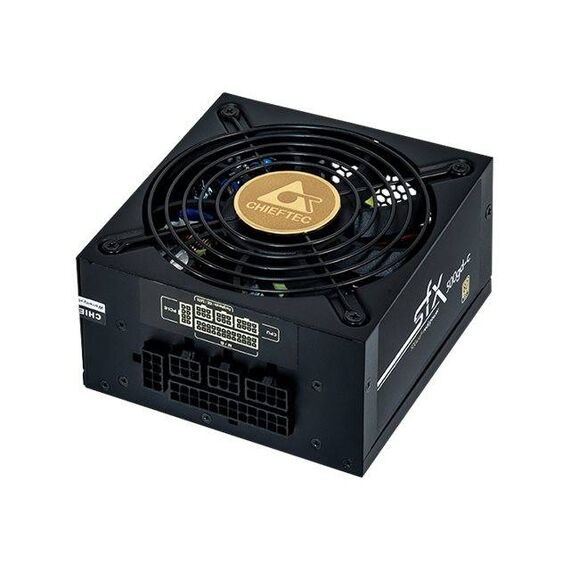

Chieftec Smart Series SFX-500GD-C / Power supply (internal) / ATX12V 2.3/ PS/2 / 80 PLUS Gold / AC 100-240 V / 500 Watt / active PFC / black | SFX-500GD-C
|
Description Today, system integrators do not only require for their PC assembly line, a durable and quality-promising chassis but a highly reliable power supply source as well. Chieftec's power supply units of the Smart Series fulfill these and more requirements. |
Product Specification
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V 2.3/ PS/2 |
| Colour | Black |
| Input Voltage | AC 100-240 V |
| Frequency Required | 50 - 60 Hz |
| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section ¦ 4 x 15 pin Serial ATA power ¦ 1 x power 8 pin +12V with detachable 4 pin section ¦ 1 x power 4 pin ATX12V connector ¦ 2 x 4 PIN internal power ¦ 2 x 8 pin PCI Express power with detachable 2 pin section |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 500 Watt |
| Output Current | +5V - 20 A ¦ +3.3V - 20 A ¦ +12V1 - 40 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A |
| Efficiency | 90%+ |
| 80 PLUS Certification | 80 PLUS Gold |
| Cooling System | 120 mm fan |
| Features | Overheat protection, over current protection, over voltage protection, overload protection, undervoltage protection, short-circuit protection, fan speed control |
| Compliant Standards | CB, RoHS |
| Service & Support | Limited warranty - 2 years |
| Width | 12.5 cm |
| Depth | 12.5 cm |
| Height | 6.4 cm |
Features - Chieftec - SFX-500GD-C
More Details
Product Code
W630168
EAN Code
4710713231429
Manufacturer
Chieftec
