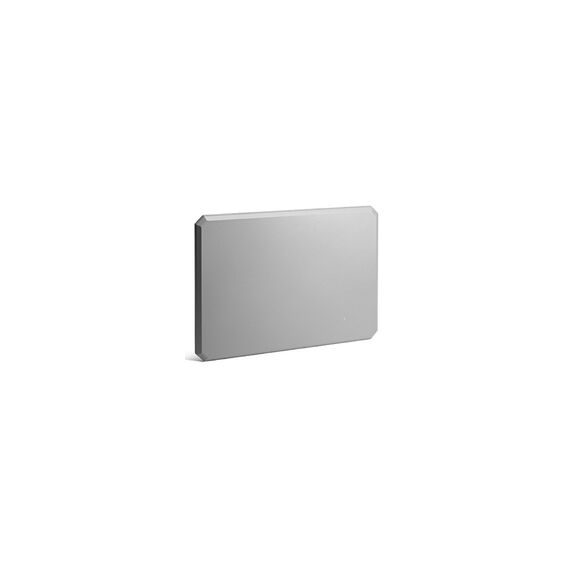

Cisco AIR-ANT2513P4M-N= Cisco 2.4 GHZ/5 GHZ 13 DBI PATCH (AIR-ANT2513P4M-N=)Cisco Aironet Four-Port Dual-Band Polarization-Diverse Antenna
This document describes the AIR-ANT2513P4M-N antenna and provides electrical specifications and mounting instructions. The antenna is a four-port polarization-diverse patch array that operates over the 2.4-GHz and 5-GHz Wi-Fi bands. It ships with an articulating mount for use on flat surfaces and masts and is adjustable in both the ho
rizontal and vertical planes. The radome is paintable using commonly available non-conductive spray paints, such as Krylon or Rust-Oleum. The antenna is designed for use in indoor and outdoor environments with Cisco Aironet 3702P Access Points.
|Antenna gain level max:||13 dBi|
|Frequency band:||2.4 - 2.5 / 5.15 - 5.9 GHz|
|Antenna connector type:||N-type|
|Operating temperature T-T:||-30 - 70 °C|
|Storage temperature T-T:||-40 - 85 °C|
