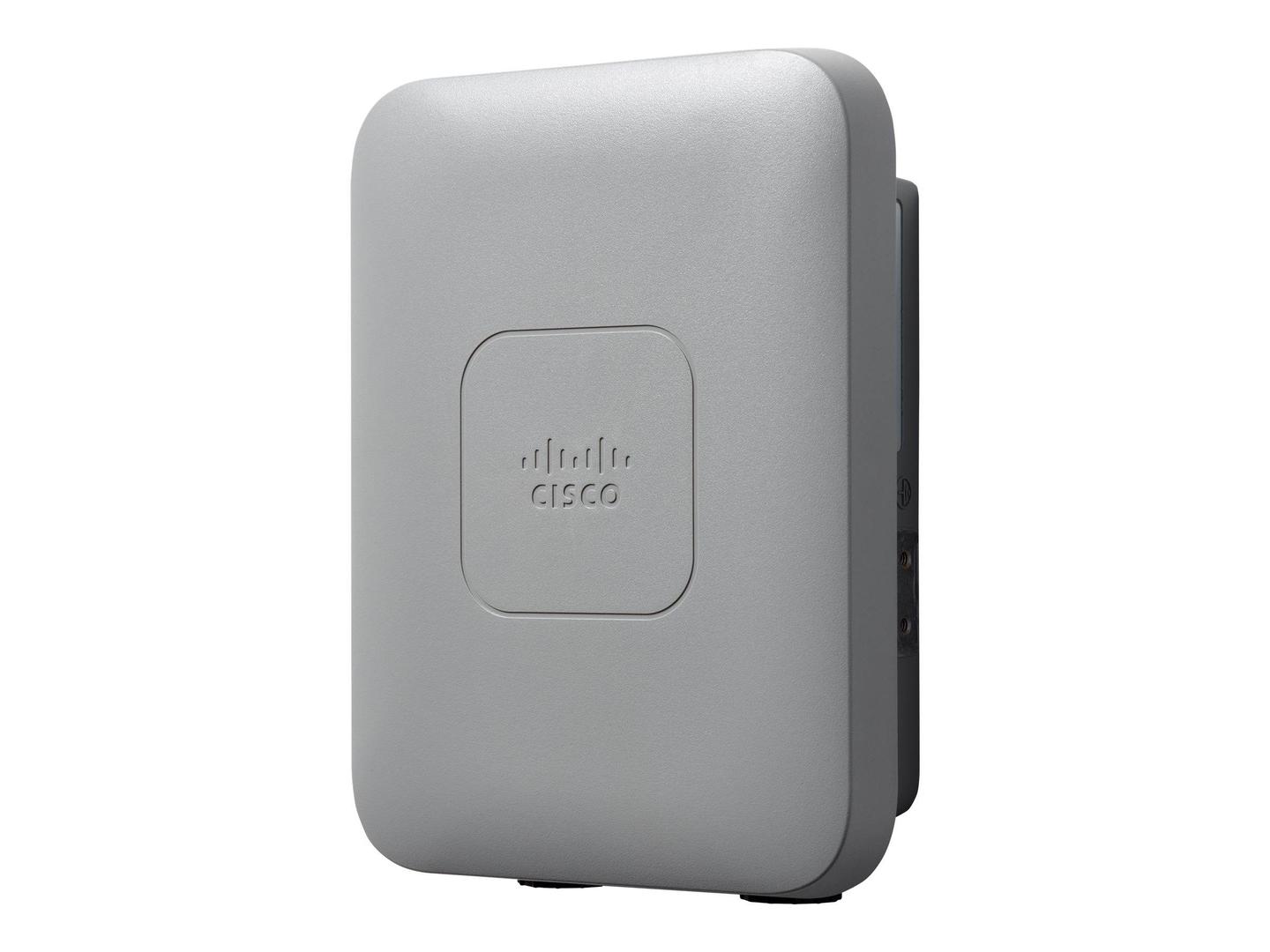

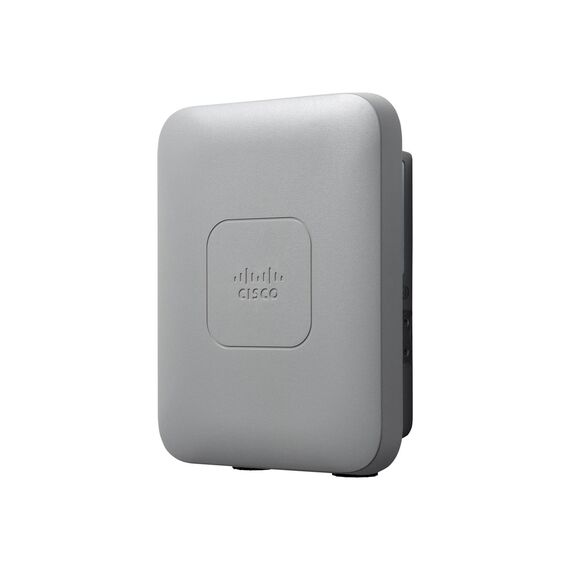

Cisco Aironet 1542D / Radio access point / 802.11ac Wave 2 / Wi-Fi 5 / 2.4 GHz, 5 GHz | AIR-AP1542D-E-K9
AIR-AP1542D-E-K9
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Compact, lightweight size
At just over 2.5 pounds (1 kg) and with a small footprint, the 1540 Series is one of the smallest outdoor access points with internal antennas. - Low power consumption
Achieves full operation on standard 802.3af power (13W). - Integrated antenna options
The 1540 series offers two models with different antenna patterns to address a variety of use cases.
Special Features
- Compact, lightweight size
- Low power consumption
- Integrated antenna options
Product Specification
| Device Type | Radio access point |
| Ruggedized Design | Outdoor |
| Width | 15 cm |
| Depth | 20 cm |
| Height | 6.1 cm |
| Weight | 1.25 kg |
| Localisation | Belgium, Bahrain, Lebanon, Bulgaria, Czech Republic, Estonia, Lithuania, South Africa, Iceland, Romania, Sri Lanka, Luxembourg, Hungary, Cyprus, Kenya, Nigeria, Liechtenstein, Gibraltar, Malta, Morocco, Monaco, Slovakia, Slovenia, Latvia, Austria, Denmark, Finland, France, Germany, Italy, Netherlands, Norway, Poland, Portugal, Spain, Sweden, Switzerland, United Kingdom, Greece, Ireland, Serbia |
| Networking | Networking |
| Form Factor | External |
| Connectivity Technology | Wireless |
| Data Transfer Rate | 867 Mbps |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2 |
| Network / Transport Protocol | L2TP, IPSec |
| Frequency Band | 2.4 GHz, 5 GHz |
| Capacity | Spatial streams: 2 |
| Features | MAC address filtering, VPN passthrough, reset button, Maximum Ratio Combining (MRC), 802.1x authentication, cyclic shift diversity (CSD), beamforming technology, packet aggregation A-MPDU, packet aggregation A-MSDU, Dynamic Frequency Selection (DFS), 2x2 MU-MIMO technology |
| Encryption Algorithm | LEAP, AES, TLS, PEAP, TTLS, WPA2 |
| Authentication Method | X.509 certificates, Extensible Authentication Protocol (EAP) |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.1x, X.509, IEEE 802.11i, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac Wave 2 |
| Aerial | Aerial |
| Antenna | Internal |
| Antenna Qty | 2 |
| Directivity | Directional |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x 1000Base-T (PoE) - RJ-45 ¦ 1 x console - RJ-45 |
| Miscellaneous | Miscellaneous |
| Compliant Standards | EN 60950, ICES-003, FCC Part 15.247, RSS-210, RSS-102, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-5, FCC Part 15.107, FCC Part 15.109, FCC Part 15.407, ARIB STD-T66, ARIB STD-T71, IP67, X.509, MIL-STD-810, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, EN 300 328, FCC OET Bulletin 65c, EN 301 489-1, IEC 60529, AS/NZS 4268.2003, ANSI / IEEE 587 C62.41, NEMA 250-2008, EN 60068-2-5, UL 60950 Second Edition, CAN/CSA C22.2 No. 60950 Second Edition, EN 301 893, EN 301 489-17 |
| Power | Power |
| Power Over Ethernet (PoE) Supported | PoE |
| Power Consumption Operational | 13 Watt |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - advance parts replacement - 1 year - response time: 10 days |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 65 °C |
Features - Cisco - AIR-AP1542D-E-K9
More Details
Product Code
677LU88
EAN Code
0882658970368
Manufacturer
Cisco
