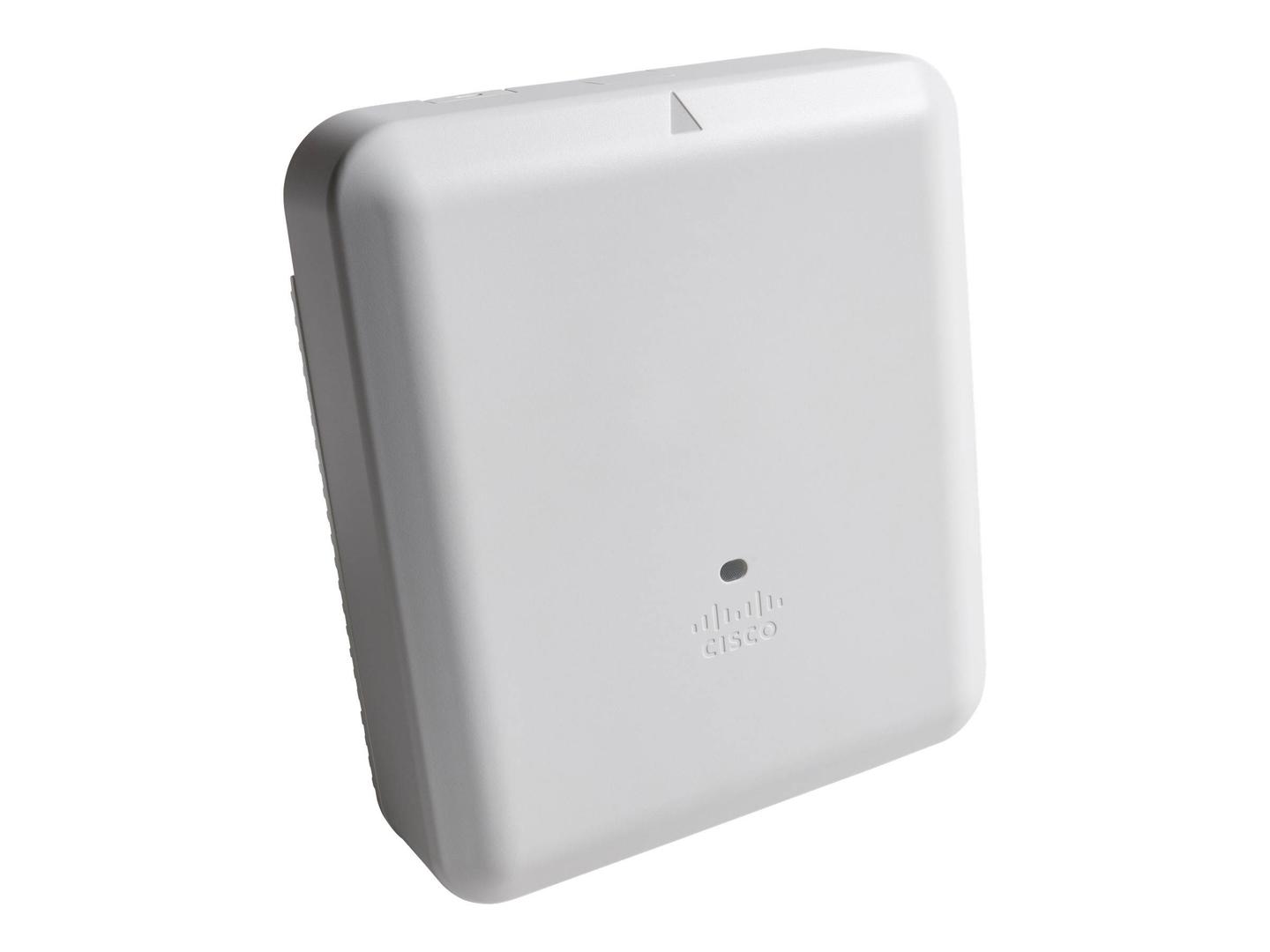

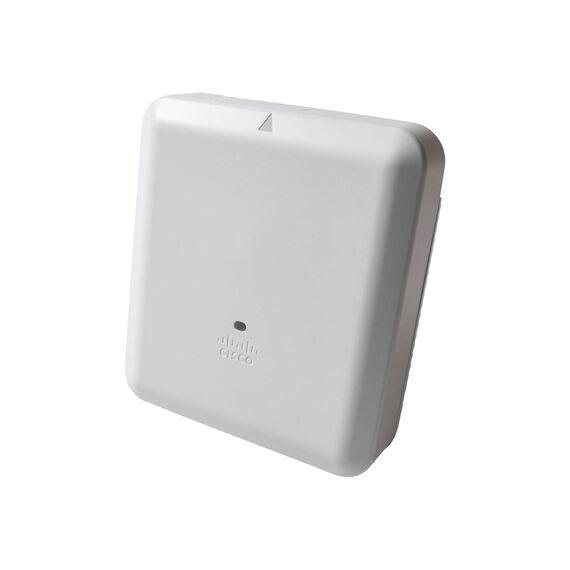

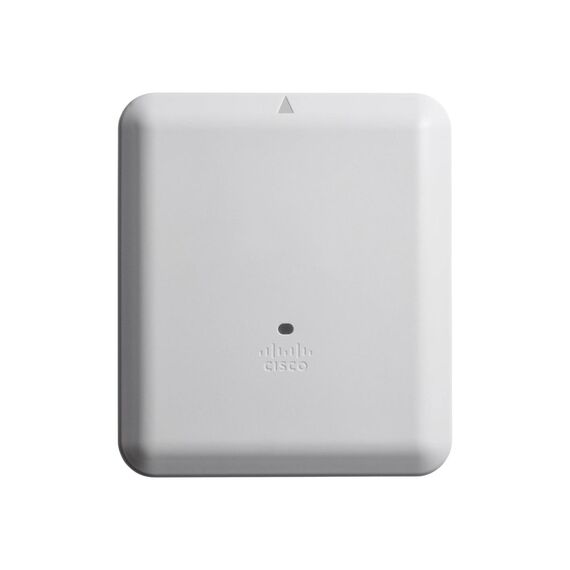

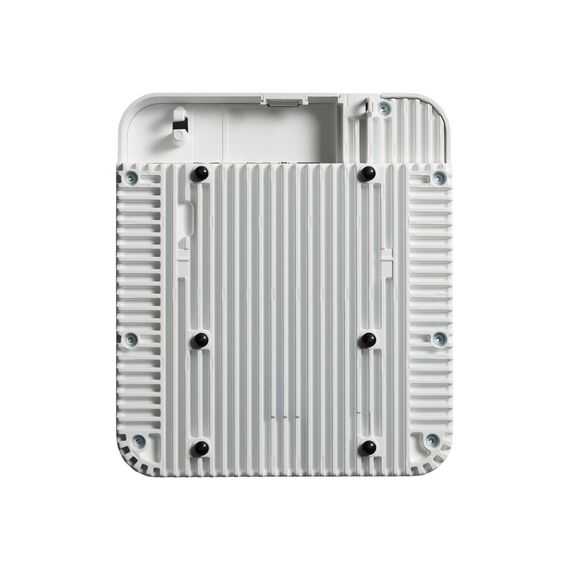

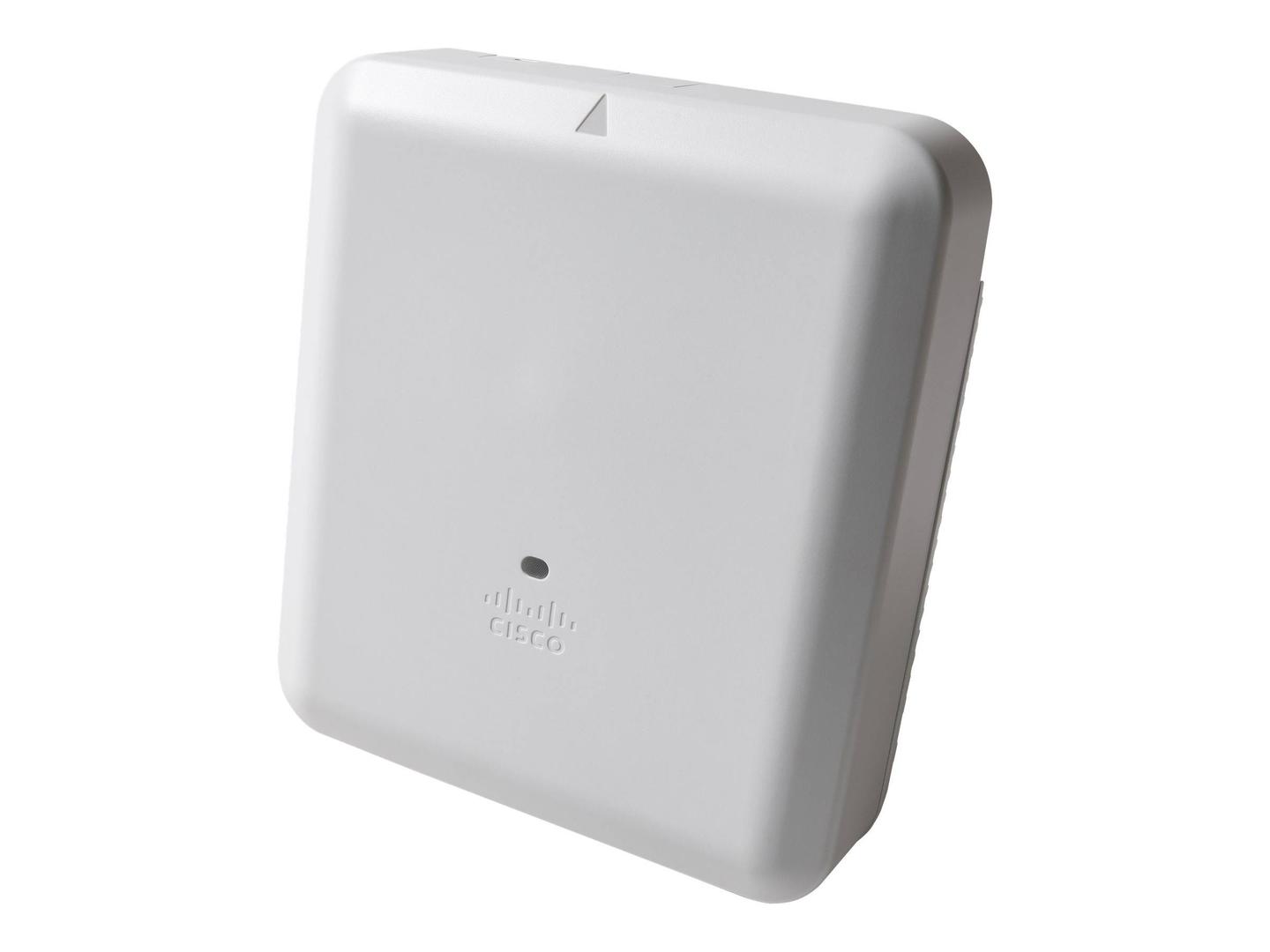

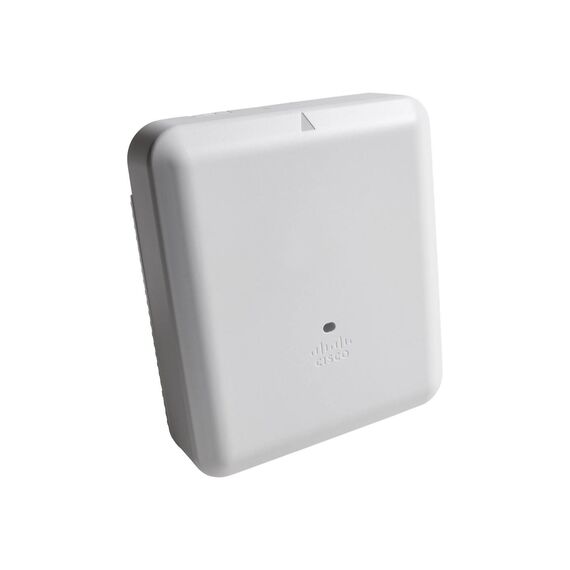

Cisco Aironet 4800 (Config) / Radio access point / Wi-Fi 5 / 2.4 GHz, 5 GHz | AIR-AP4800-E-K9C
AIR-AP4800-E-K9C
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Radio access point |
| Ruggedized Design | Indoor |
| Width | 22 cm |
| Depth | 25 cm |
| Height | 7.35 cm |
| Weight | 2.5 kg |
| Processor / Memory / Storage | Processor / Memory / Storage |
| RAM | 1 GB |
| Flash Memory | 256 MB |
| Networking | Networking |
| Form Factor | External |
| Connectivity Technology | Wireless |
| Data Transfer Rate | 5.2 Gbps |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2 |
| Frequency Band | 2.4 GHz, 5 GHz |
| Capacity | Spatial streams: 3 |
| Status Indicators | Boot State, error, status, operation mode |
| Features | Wi-Fi Multimedia (WMM) support, CleanAir technology, Maximum Ratio Combining (MRC), 4T4R MIMO technology, cyclic shift diversity (CSD), packet aggregation A-MPDU, packet aggregation A-MSDU, ClientLink 4.0 technology, Dynamic Frequency Selection (DFS) |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.3ad (LACP), IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, Wi-Fi CERTIFIED, IEEE 802.11h, IEEE 802.11n, IEEE 802.11k, IEEE 802.11ac, IEEE 802.11w, IEEE 802.11r, IEEE 802.11u, IEEE 802.11v, IEEE 802.3bz |
| Aerial | Aerial |
| Antenna | Internal |
| Expansion / Connectivity | Expansion / Connectivity |

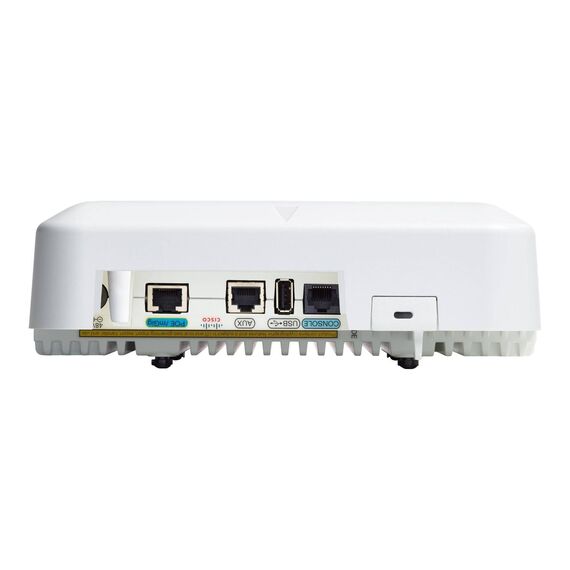

| Interfaces | 2 x 1/2.5/5GBase-T - RJ-45 ¦ 1 x 1000Base-T (auxiliary) - RJ-45 ¦ 1 x management - RJ-45 |
| Miscellaneous | Miscellaneous |
| Included Accessories | Mounting brackets |
| Compliant Standards | VCCI, ICES-003, FCC Part 15.247, RSS-102, UL 2043, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15.107, FCC Part 15.109, FCC Part 15.407, EN 60601-1-2, ARIB STD-T66, ARIB STD-T71, Directive 93/42/EEC, EN 300 328, FCC OET Bulletin 65c, EN 301 489-1, RSS-247, EN 50155, EN 301 893, CAN/CSA-C22.2 No. 60950-1, EMI Class B, EN 301 489-17 |
| Software / System Requirements | Software / System Requirements |
| Software Included | Cisco Unified Wireless Network Software Release 8.7 or later, Cisco IOS XE 16.9 |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - advance hardware replacement - lifetime - response time: 10 days |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
Features - Cisco - AIR-AP4800-E-K9C
More Details
Product Code
677PF91
EAN Code
0889728136662
Manufacturer
Cisco
