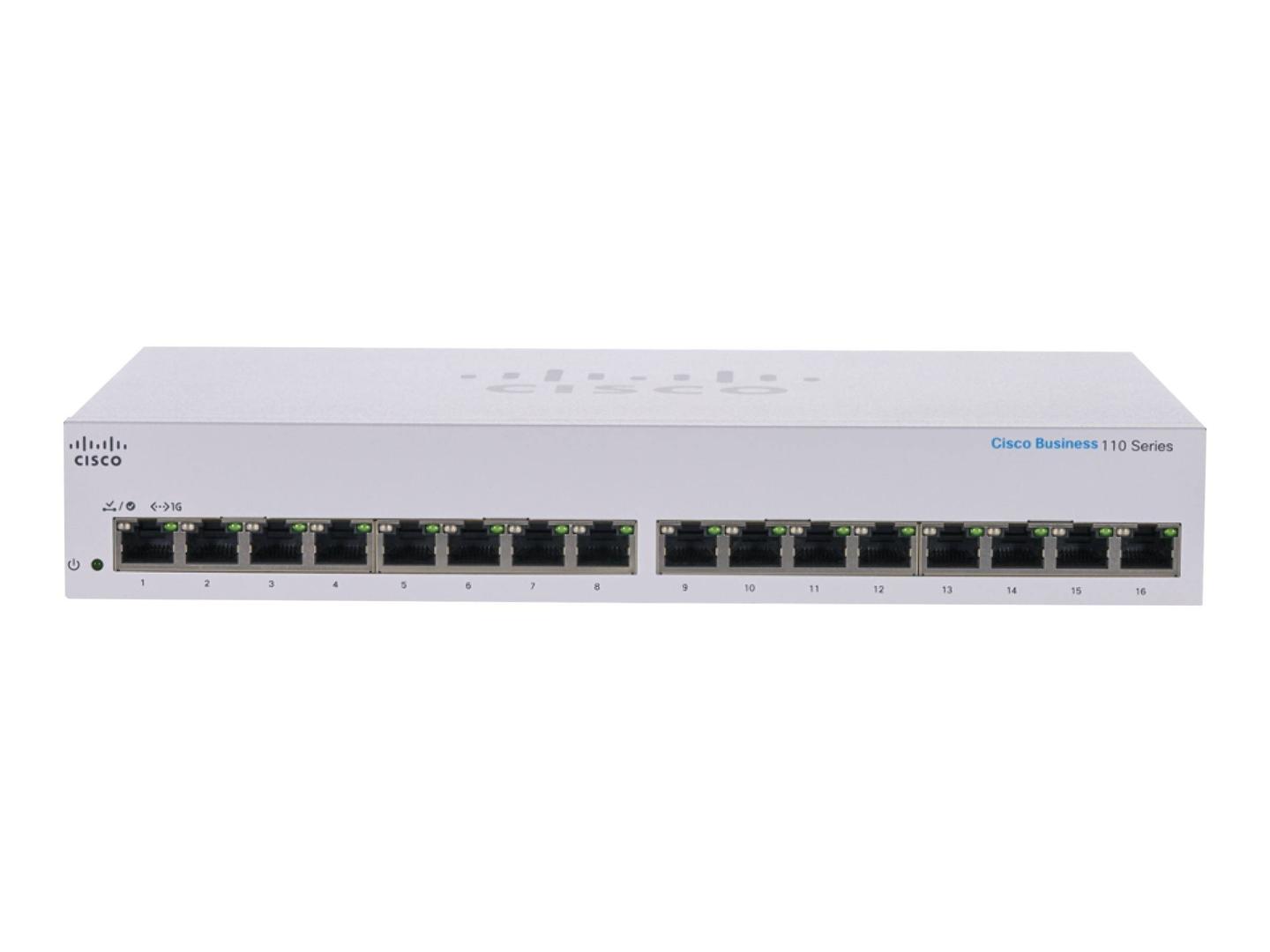

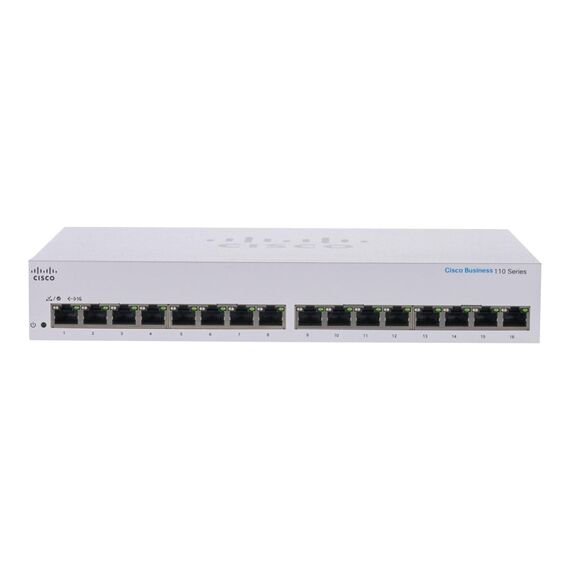

Cisco Business 110 Series 110-16T / Switch / unmanaged / 16 x 10/100/1000 / desktop, rack-mountable, wall-mountable | CBS110-16T-EU
Please sign in so that we can notify you about a reply
Product Features
- SWITCH PORTS
16 -Port 10/100/1000 - SIMPLE
Plug-and-play without a need for IT know-how or support. - FLEXIBLE
Extensive portfolio provides ultimate flexibility from 5 to 24 ports and PoE combinations - PERFORMANCE
Gigabit Ethernet and integrated quality-of-service (QoS) intelligence optimize delay-sensitive services and improve overall network performance. - INNOVATIVE DESIGN
Elegant and compact design, ideal for installation outside of wiring closet such as retail stores, open plan offices, and classrooms
Special Features
- Simple
- Flexible deployment
- High performance
- Reduced energy costs
- Advanced technologies
- Peace of mind
Product Specification
| Device Type | Switch - 16 ports - unmanaged |
| Enclosure Type | Desktop, rack-mountable, wall-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 16 x 10/100/1000 |
| Performance | Forwarding performance (64-byte packet size): 23.8 Mpps ¦ Switching capacity: 32 Gbps |
| Capacity | Buffer capacity (MB): 2 |
| MAC Address Table Size | 8K entries |
| Jumbo Frame Support | 9216 bytes |
| Features | Flow control, auto-uplink (auto MDI/MDI-X), Quality of Service (QoS), Cable Diagnostics Function, fanless, Energy Efficient Ethernet, Head-of-line (HOL) blocking, Weighted Round Robin (WRR), loopback detection, security slot (Kensington security lock compatible) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3az |
| Processor | X ARM: 400 MHz |
| RAM | 128 MB |
| Flash Memory | 16 MB |
| Status Indicators | Power, link/activity |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 16 x 10/100/1000 Base-T RJ-45 |
| Power | Power |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 11.53 Watt |
| Miscellaneous | Miscellaneous |
| Included Accessories | Mounting kit |
| MTBF | 2,685,092 hours |
| Compliant Standards | FCC Class B certified, UL 60950, CSA 22.2, FCC CFR47 Part 15 A |
| Localisation | United Arab Emirates, Indonesia, Israel, South Africa, Vietnam, Ukraine, Egypt, Thailand, Philippines, Korea, Russia, Switzerland, Turkey, European Economic Area |
| Dimensions & Weight | Dimensions & Weight |
| Width | 27.9 cm |
| Depth | 17 cm |
| Height | 4.4 cm |
| Weight | 970 g |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - lifetime ¦ Technical support - web support - 1 year ¦ Technical support - phone consulting - 1 year |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Min Storage Temperature | -20 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 5 - 90% (non-condensing) |
Features - Cisco - CBS110-16T-EU
More Details
Product Code
677UX24
EAN Code
0889728326001
Manufacturer
Cisco
