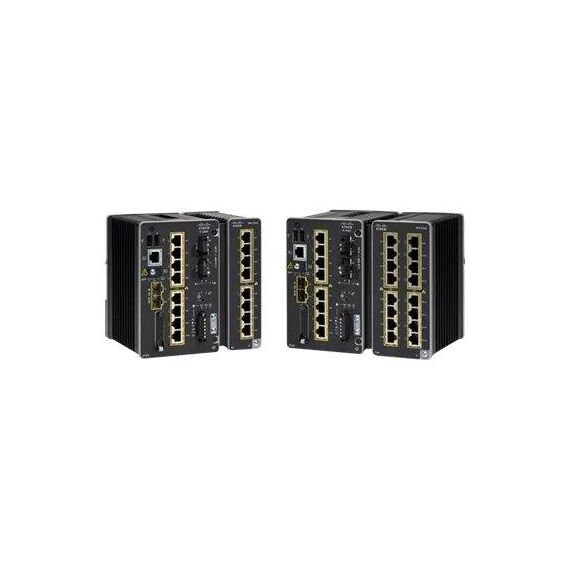

Cisco Catalyst IE3400 Rugged Series / Network Essentials / switch / Managed / 8 x 10/100/1000 + 2 x Gigabit SFP / DIN rail mountable / DC power | IE-3400-8P2S-E
Please sign in so that we can notify you about a reply
Product Features
- Robust industrial design
Fanless, convection-cooled with no moving parts for extended durability. - Full Gigabit Ethernet interfaces
Provides secure access for new high-speed applications in the industrial space.
Special Features
- Robust industrial design
- Alarm I/O for monitoring and signaling to external equipment
- Full Gigabit Ethernet interfaces
Product Specification
| Device Type | Switch - 10 ports - Managed |
| Enclosure Type | DIN rail mountable |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 + 2 x Gigabit SFP |
| Capacity | Queues: 8 ¦ IGMP groups: 1000 ¦ VLAN IDs: 256 ¦ STP instances: 128 ¦ ACL: 1500 |
| MAC Address Table Size | 8K entries |
| Routing Protocol | IGMPv2, IGMP, IGMPv3, MSTP, RSTP, STP |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, HTTP, TFTP, SSH, SCP, NTP |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+ |
| Features | DHCP support, BOOTP support, ARP support, IGMP snooping, Syslog support, DiffServ support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, DHCP server, Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+), Uni-Directional Link Detection (UDLD), IPv4 support, fanless, LACP support, LLDP support, DHCP relay, Port Security, Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), 802.1x authentication, Precision Time Protocol (PTP), IGMP filtering, IP source guard, Resilient Ethernet Protocol (REP), SmartPort technology, Internet Control Message Protocol (ICMP), CIP Sync (IEEE 1588), IGMP querier, Voice VLAN, Guest VLAN, User Datagram Protocol (UDP), VLAN Trunking Protocol (VTP) v.3, BPDU Guard, Dying Gasp, VLAN Trunking Protocol (VTP) v.2 |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 1588v2 |
| RAM | 4 GB |
| Flash Memory | 1.5 GB |
| Built-in Devices | SD card reader |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 8 x 10/100/1000 Base-T RJ-45 ¦ 2 x 1000Base-X SFP ¦ 1 x serial (RS-232) RJ-45 ¦ 1 x mini-USB Type B ¦ 2 x alarm ¦ 1 x alarm |
| Expansion Slots | 1 (total) / 1 (free) x SD Memory Card |
| Power | Power |
| Power Device | Internal power supply |
| Power Redundancy | Yes |
| Voltage Required | DC 9.6 - 60 V |
| Electric Current Required | 5.4 A |
| Power Consumption Operational | 39 Watt |
| Miscellaneous | Miscellaneous |
| MTBF | 549,808 hours |
| Compliant Standards | EN55024, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-6-2, EN 61000-4-8, IEC 60950-1, EN 61000-6-4, IEC 60068-2-30, IEC 60068-2-27, EN 61326-1, EN 61000-4-16, EN 61000-4-29, IEC 60068-2-14, IEC 60068-2-78, EN 50121-4, VCCI Class A, CISPR 11 class A, EN 61000-4-10, EN 61000-4-18, IEC 61850-3, FCC CFR47 Part 15 B Class A, IEEE 1613, CNS 13438 Class A, EN 300 386, KN35, UL/CSA60950-1, AS/NZS CISPR 32 Class A, KN32 Class A, IEC 62368-1, IEEE 1588, EN 60068-2-52, EN 60068-2-60, EN 60079-15, CB 60950-1, IEC 60079-0, IEC 60079-15, EN 60079-0, EN 55032/CISPR 32 Class A, CISPR 35, EN 61000-4-17, UL 121201, UL/CSA/EN 62368-1, EN 61850-3, UL/CSA 61010-2-201, IEC/EN 61010-2-201, UL/CSA 60079-0, UL/CSA 60079-15 |
| Dimensions & Weight | Dimensions & Weight |
| Width | 9.14 cm |
| Depth | 13.5 cm |
| Height | 15.2 cm |
| Weight | 1.7 kg |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - advance parts replacement - 5 years - response time: 10 days ¦ Technical support - 90 days |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 70 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 85 °C |
| Humidity Range Storage | 5 - 95% (non-condensing) |
Features - Cisco - IE-3400-8P2S-E
More Details
Product Code
677TQ94
EAN Code
0889728140348
Manufacturer
Cisco
