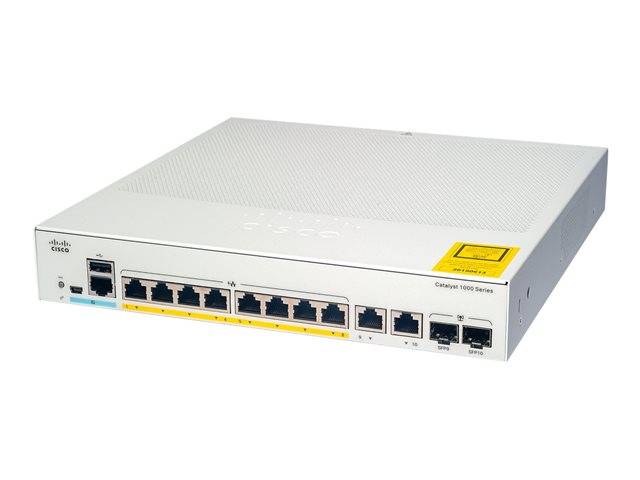

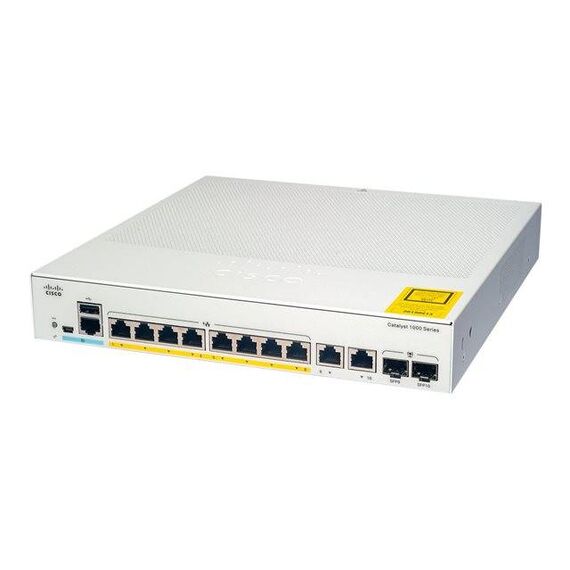

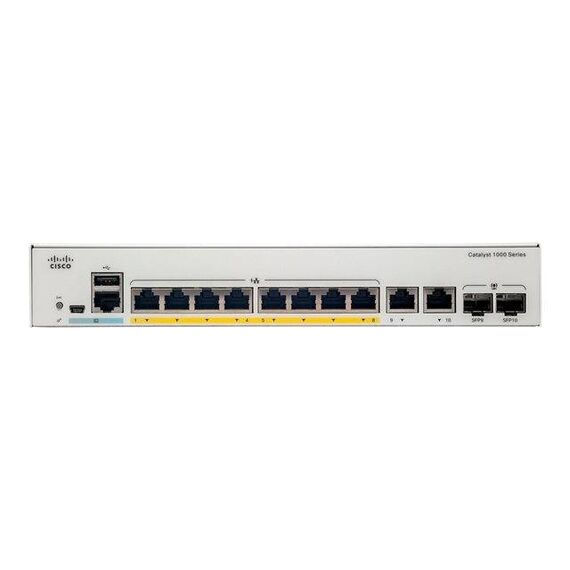

Cisco Catalyst 1000-8T-2G-L / Switch / Managed / 8 x 10/100/1000 + 2 x combo Gigabit SFP (uplink) / rack-mountable | C1000-8T-2G-L

C1000-8T-2G-L
385.66
458.94 inc. VAT
Standard DeliveryStandard delivery within 4 to 8 business days.Express DeliveryExpress delivery within 2 to 3 business days.
Availability: 524 item(s)
Find similar
Delivery
Payment options
Product Code677TA90 EAN Code0889728248778 ManufacturerCisco

Description

Cisco Catalyst 1000-8T-2G-L / Switch / Managed / 8 x 10/100/1000 + 2 x combo Gigabit SFP (uplink) / rack-mountable | C1000-8T-2G-L

Product Specification

Device Type Switch - 8 ports - Managed
Enclosure Type Rack-mountable
Subtype Gigabit Ethernet
Ports 8 x 10/100/1000 + 2 x combo Gigabit SFP (uplink)
Performance Forwarding bandwidth: 10 Gbps ¦ Switching bandwidth: 20 Gbps ¦ Forwarding rate (64-byte L3 packets): 14.88 Mpps
Capacity Unicast MAC addresses: 15360 ¦ IPv4 unicast direct routes: 542 ¦ IPv4 unicast indirect routes: 256 ¦ IPv6 unicast direct routes: 414 ¦ IPv6 unicast indirect routes: 128 ¦ IPv4 routes (static): 16 ¦ IPv6 routes (static): 16 ¦ IPv4 routes (Multicast): 1024 ¦ IPv6 groups (Multicast): 1024 ¦ IPv4/MAC security ACEs: 600 ¦ IPv6 security ACEs: 600 ¦ Active VLANs: 256 ¦ VLAN IDs: 4094 ¦ STP instances: 64 ¦ SPAN sessions: 4 ¦ MTU-L3 packet: 9198 byte
Jumbo Frame Support 10240 bytes
Routing Protocol IGMP, MLDv2, MLD, MSTP, RSTP, STP
Remote Management Protocol SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, SSH-2, CLI, NTP, ICMP, DHCP, RSTP, TACACS+, RADIUS
Authentication Method Kerberos, Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Features BOOTP support, ARP support, auto-uplink (auto MDI/MDI-X), Intrusion Detection System (IDS), Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Dying Gasp support, sFlow, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), fanless, Shaped Round Robin (SRR), LACP support, LLDP support, MAC Address Notification, Energy Efficient Ethernet, Management Information Base (MIB), Class of Service (CoS), 802.1x authentication, DiffServ Code Point (DSCP) support, IGMP filtering, IP source guard, Weighted Tail Drop (WTD), SmartPort technology, VLAN Trunking Protocol (VTP), Spanning-tree Root Guard (STRG), Authentication, Authorization and Accounting (AAA), User Datagram Protocol (UDP), proxy ARP, Switched Port Analyzer (SPAN), loopback detection, MAC Access Bypass (MAB), BPDU Guard, Network Edge Access Topology (NEAT)
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3az, Bluetooth 4.0, IEEE 802.1AX
Processor X ARM: 800 MHz
RAM 512 MB
Flash Memory 256 MB
Status Indicators Status
Interfaces 8 x 1000Base-T RJ-45 ¦ 2 x 1000Base-T / 1000Base-X RJ-45/SFP uplink ¦ 1 x management RJ-45 ¦ 1 x mini-USB Type B ¦ 1 x USB Type A
Power Device Internal power supply
Installed Qty 1
Voltage Required AC 120/230 V (50 - 60 Hz)
Compliant Standards CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, EN 61000-4-5, RoHS, UL 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2011/65/EU, VCCI Class A, KN24, KN22 Class A, EN 55022 Class A, FCC CFR47 Part 15 A, CNS 13438 Class A, EN 300 386, CAN/CSA-C22.2 No. 60950-1-07 Second Edition, AS/NZS CISPR22 Class A
Width 26.8 cm
Depth 18.5 cm
Height 4.39 cm
Service & Support Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - consulting - 90 days
Min Operating Temperature -5 °C
Max Operating Temperature 50 °C
Humidity Range Operating 5 - 90%
Min Storage Temperature -25 °C
Max Storage Temperature 70 °C
Humidity Range Storage 5 - 95%

Features - Cisco - C1000-8T-2G-L

More Details
Product Code
677TA90
EAN Code
0889728248778
Manufacturer
Cisco
Find similar
