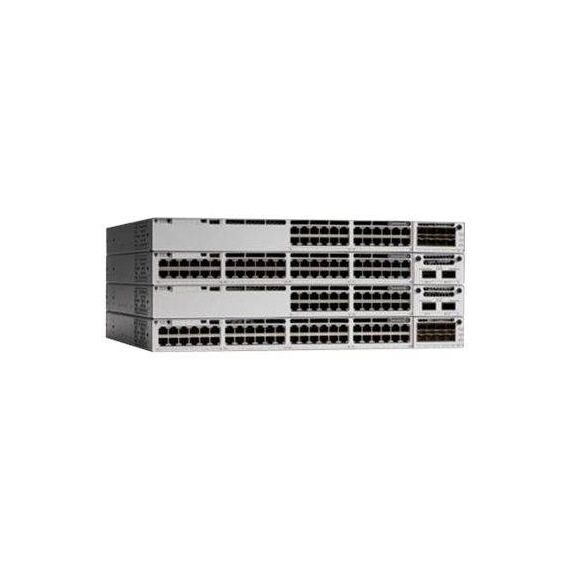

Cisco Catalyst 9300 / Network Essentials / switch / L3 / Managed / 24 x Gigabit SFP / rack-mountable | C9300-24S-E
Cisco Catalyst 9300 / Network Essentials / switch / L3 / Managed / 24 x Gigabit SFP / rack-mountable | C9300-24S-E
€24293.41 inc. VAT
C9300-24S-E
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Cisco Catalyst 9300 / Network Essentials / switch / L3 / Managed / 24 x Gigabit SFP / rack-mountable | C9300-24S-E
Product Specification
| Device Type | Switch - 24 ports - L3 - Managed - stackable |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 24 x Gigabit SFP |
| Performance | Switching capacity: 128 Gbps ¦ Stacking bandwidth: 480 Gbps ¦ Forwarding rate: 154.76 Mpps |
| Capacity | IPv4 routing table entries: 32000 ¦ IPv6 routing table entries: 16000 ¦ Flexible NetFlow entries: 64000 ¦ VLAN IDs: 4000 ¦ Switched virtual interfaces (SVIs): 2000 |
| MAC Address Table Size | 32000 entries |
| Jumbo Frame Support | 9198 bytes |
| Routing Protocol | OSPF, IS-IS, RIP-1, RIP-2, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF |
| Encryption Algorithm | 128-bit AES |
| Features | Trunking, full duplex mode, Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Service (QoS), Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), Cisco StackWise-480 technology, Cisco StackPower technology, Flexible NetFlow (FNF), 802.1x authentication, 16MB packet buffer, FTP client, 3 fans, Control plane protection (CoPP), Source-Specific Multicast (SSM), integrated Wireshark, VLAN Double Tagging (Q-in-Q), Private VLAN |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s |
| RAM | 8 GB |
| Flash Memory | 16 GB |
| Status Indicators | Status |
| Interfaces | 24 x Gigabit LAN SFP ¦ 1 x USB 2.0 |
| Expansion Slots | 1 (total) / 1 (free) x Expansion Slot |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 2 (installed) / 2 (max) |
| Power Redundancy | Yes |
| Power Provided | 715 Watt |
| Voltage Required | AC 120/230 V (50 - 60 Hz) |
| MTBF | 284,130 hours |
| Compliant Standards | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, CCC, ICES-003 Class A, EN 61000-4-5, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, EN 55022 Class A, FCC CFR47 Part 15 A, EN 300 386, TVCN 7317, VCCI V-3/2009 Class A, CAN/CSA-C22.2 No. 60950-1 |
| Software Included | Cisco ONE StealthWatch License Term - 25 Flow Licenses, 25 x Cisco ONE ISE BASE Tracker Licences Term (5 years), 25 x Cisco ONE ISE PLUS Tracker Licences Term (5 years), Network Plug-n-Play License |
| OS Required | Cisco IOS Universal |
| Width | 44.4 cm |
| Depth | 48.8 cm |
| Height | 4.3 cm |
| Weight | 7.64 kg |
| Service & Support | Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - consulting - 90 days |
| Min Operating Temperature | -5 °C |
| Max Operating Temperature | 45 °C |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 5 - 90% (non-condensing) |
Features - Cisco - C9300-24S-E
General
24-Port
More Details
Product Code
677RY12
EAN Code
0889728192668
Manufacturer
Cisco
