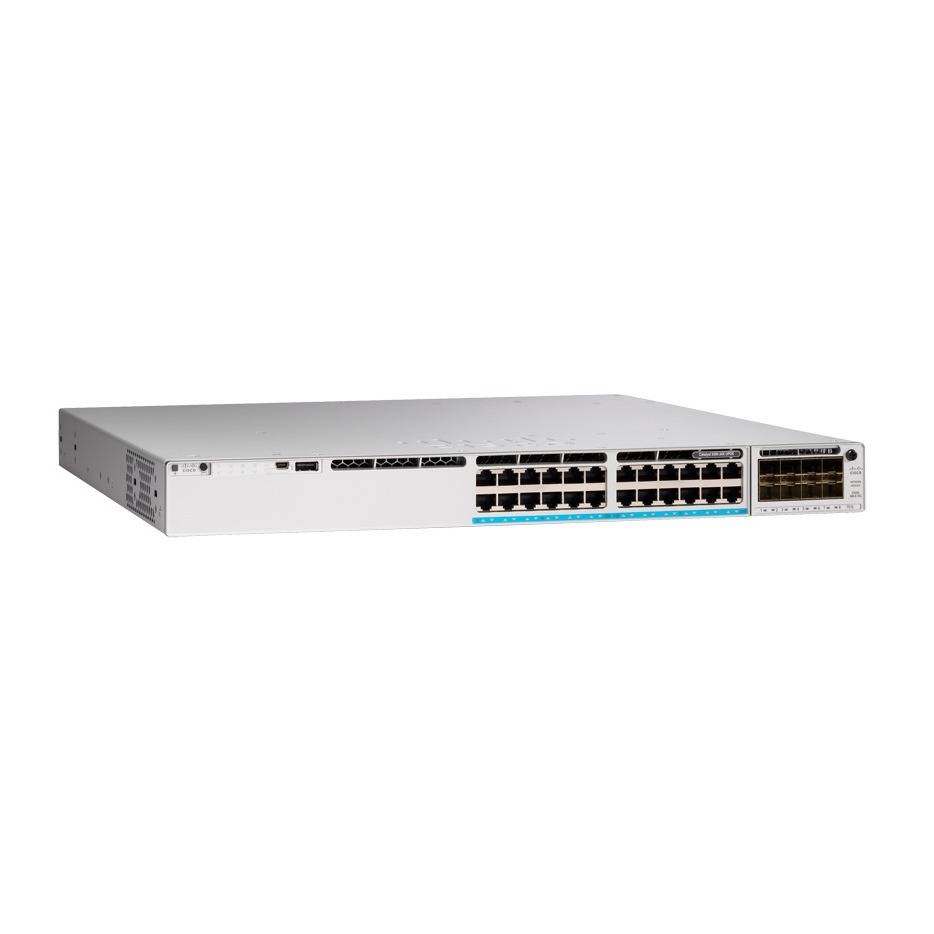

Cisco Catalyst 9300X / Network Essentials / switch / L3 / Managed / 24 x 100/1000/2.5G/5G/10GBase-T (UPOE+) / rack-mountable / UPOE+ (1835 W) | C9300X-24HX-E
Please sign in so that we can notify you about a reply
Special Features
- USB 2.0 slot to load system images and set configurations
- Easy transition from 10G to 25G with dual-rate optics
- Flexible downlink options with 1G Copper and Fiber as well as the densest Multigigabit links
- Intelligent Power Management with Cisco StackPower technology, providing power stacking among members for power redundancy
- Line-rate, hardware-based Flexible NetFlow (FNF), delivering flow collection of up to 128,000 flows
- IPv6 support in hardware, providing wire-rate forwarding for IPv6 networks
- Dual-stack support for IPv4/IPv6 and dynamic hardware forwarding table allocations for ease of IPv4-to-IPv6 migration
- Support for both static and dynamic NAT and Port Address Translation (PAT)
- IEEE 802.1ba AV Bridging (AVB) built in to provide a better audio and video experience through improved time synchronization and QoS
- Precision Time Protocol (PTP; IEEE 1588v2) provides accurate clock synchronization with sub-microsecond accuracy making it suitable for distribution and synchronization of time and frequency over network
Product Specification
| Device Type | Switch - 24 ports - L3 - Managed - stackable |
| Enclosure Type | Rack-mountable |
| Subtype | 10 Gigabit Ethernet |
| Ports | 24 x 100/1000/2.5G/5G/10GBase-T (UPOE+) |
| Power Over Ethernet (PoE) | UPOE+ |
| PoE Budget | 1835 W |
| Performance | Switching capacity: 880 Gbps ¦ Switching capacity with stacking: 1880 Gbps ¦ Forwarding rate: 327.38 Mpps ¦ Forwarding rate with stacking: 1398.8 Mpps |
| Capacity | IPv4 routing table entries: 39000 ¦ Multicast routes: 8000 ¦ QoS scale entries: 4000 ¦ ACL scale entries: 8000 ¦ IPv6 routing table entries: 19500 ¦ Packet buffer size: 16 MB ¦ FNF entries: 64000 ¦ VLAN IDs: 4094 ¦ Switched virtual interfaces (SVIs): 1000 |
| MAC Address Table Size | 32000 entries |
| Jumbo Frame Support | 9198 bytes |
| Max Units In A Stack | 8 |
| Routing Protocol | RIP, RIP-1, RIP-2, VRRP, PIM-SM, static IP routing, GRE, PIM-SSM, policy-based routing (PBR), RIPng, MSTP, STP, LISP |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, HTTP, CLI, NETCONF, RESTCONF, gRPC, YANG |
| Encryption Algorithm | 128-bit AES, 256-bit AES |
| Features | VPN support, full duplex mode, Quality of Service (QoS), Cisco StackWise Technology, Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), LACP support, Remote Switch Port Analyzer (RSPAN), Flexible NetFlow (FNF), 802.1x authentication, DiffServ Code Point (DSCP) support, Virtual Private LAN Service (VPLS), Control plane protection (CoPP), Ethernet Virtual Private Network (EVPN), Ethernet over MPLS (EoMPLS), Blue Beacon LED, Zero-touch provisioning (ZTP), Energy-Efficient Ethernet (EEE), Switched Port Analyzer (SPAN), Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, Committed Information Rate (CIR), Cisco Unified Access Data Plane (UADP) 2.0, Cisco Discovery Protocol (CDP), mDNS, Secure Unique Device Identification (SUDI), Preboot Execution Environment, Cisco StackWise-1T technology |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3an, IEEE 802.3at, IEEE 1588v2, IEEE 802.1BA, IEEE 802.3bz |
| RAM | 16 GB |
| Flash Memory | 16 GB |
| Built-in Devices | RFID tag |
| Status Indicators | Status |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 24 x 100/1000/2.5G/5G/10GBase-T RJ-45 UPOE+ - 90 W ¦ 1 x USB 2.0 |
| Expansion Slots | 1 (total) / 1 (free) x Expansion Slot |
| Power | Power |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Power Redundancy | Optional |
| Power Provided | 1100 Watt |
| Voltage Required | AC 115-240 V (50 - 60 Hz) |
| 80 PLUS Certification | 80 PLUS Platinum |
| Miscellaneous | Miscellaneous |
| Compliant Standards | EN 61000-3-2, EN 61000-3-3, AS/NZS 60950-1, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, CNS 13438, EN 300 386 V1.6.1, EN 300 386, KN32, KN35, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, TCVN 7189 Class A, V-3 Class A, TCVN 7317, EN 55035, CISPR 35, V-2/2015.04, V-3/2015.04 |
| Dimensions & Weight | Dimensions & Weight |
| Width | 44.5 cm |
| Depth | 52.4 cm |
| Height | 4.4 cm |
| Weight | 6.25 kg |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - consulting - 90 days |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -5 °C |
| Max Operating Temperature | 45 °C |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 5 - 90% (non-condensing) |
Features - Cisco - C9300X-24HX-E
More Details
Product Code
CG21816
EAN Code
0889728363327
Manufacturer
Cisco
