Home/Networking/Cisco/Cisco Catalyst 9300 (Higher Scale) / Network Advantage / switch / L3 / Managed / 48 x 10/100/1000 (UPOE) / rack-mountable / UPOE (822 W) | C9300-48UB-A

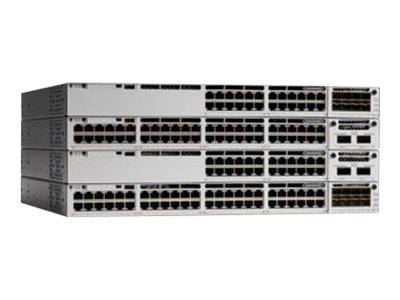

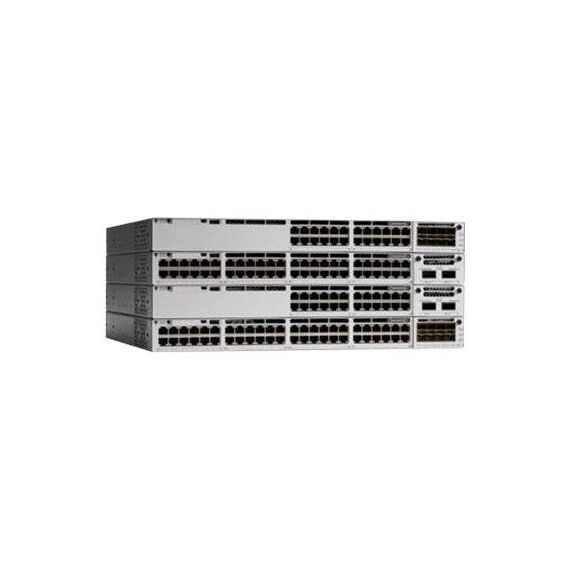

Cisco Catalyst 9300 (Higher Scale) / Network Advantage / switch / L3 / Managed / 48 x 10/100/1000 (UPOE) / rack-mountable / UPOE (822 W) | C9300-48UB-A

Cisco Catalyst 9300 (Higher Scale) Network C930048UB-A

Description
Features

Special Features

High wireless scale for Wi-Fi 6 and 802.11ac access points
Deeper buffer and higher scale model options for rich multimedia content delivery applications
Flexible and dense uplink offerings
IPv6 support in hardware, providing wire-rate forwarding for IPv6 networks

Product Specification

Device Type	Switch - 48 ports - L3 - Managed - stackable
Enclosure Type	Rack-mountable 1U
Subtype	Gigabit Ethernet
Ports	48 x 10/100/1000 (UPOE)
Power Over Ethernet (PoE)	UPOE
PoE Budget	822 W
Performance	Switching capacity: 256 Gbps Â¦ Stacking bandwidth: 480 Gbps Â¦ Switching capacity with stacking: 736 Gbps Â¦ Forwarding rate: 190.48 Mpps Â¦ Forwarding rate with stacking: 547.62 Mpps
Capacity	IPv4 routing table entries: 64000 Â¦ IPv6 routing table entries: 32000 Â¦ Flexible NetFlow entries: 128000 Â¦ VLAN IDs: 4000 Â¦ Switched virtual interfaces (SVIs): 1000 Â¦ Packet buffer size: 32 MB
MAC Address Table Size	32000 entries
Jumbo Frame Support	9198 bytes
Routing Protocol	OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, Bidirectional PIM, MSDP, policy-based routing (PBR), RIPng, MPLS
Remote Management Protocol	SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
Encryption Algorithm	128-bit AES
Features	Trunking, full duplex mode, Non-Stop Forwarding (NSF), Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Service (QoS), Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), Virtual Routing and Forwarding (VRF), Cisco StackWise-480 technology, Cisco StackPower technology, Flexible NetFlow (FNF), 802.1x authentication, FTP client, Precision Time Protocol (PTP), MACsec support, 3 fans, VXLAN tunnel endpoints (VTEP) support, Control plane protection (CoPP), Location ID Separation Protocol (LISP), Source-Specific Multicast (SSM), integrated Wireshark, VLAN Double Tagging (Q-in-Q), Private VLAN, CoAP support, Security Group Tag (SGT) caching, Audio Video Bridging (AVB), Graceful Insertion and Removal (GIR) mode
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at
RAM	8 GB
Flash Memory	16 GB
Status Indicators	Status
Expansion / Connectivity	Expansion / Connectivity
Interfaces	48 x 1000Base-T RJ-45 UPOE Â¦ 1 x USB 2.0
Expansion Slots	1 (total) / 1 (free) x Expansion Slot
Power	Power
Power Device	Internal power supply - hot-plug
Installed Qty	1
Max Supported Qty	2
Power Redundancy	Optional
Power Provided	1100 Watt
Voltage Required	AC 120/230 V (50 - 60 Hz)
Miscellaneous	Miscellaneous
MTBF	337,170 hours
Compliant Standards	CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, CCC, ICES-003 Class A, EN 61000-4-5, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, EN 55022 Class A, FCC CFR47 Part 15 A, EN 300 386, TVCN 7317, VCCI V-3/2009 Class A, CAN/CSA-C22.2 No. 60950-1
Dimensions & Weight	Dimensions & Weight
Width	44.5 cm
Depth	48.8 cm
Height	4.4 cm
Weight	7.72 kg
Manufacturer Warranty	Manufacturer Warranty
Service & Support	Limited warranty - replacement - lifetime - response time: next business day Â¦ Technical support - consulting - 90 days
Environmental Parameters	Environmental Parameters
Min Operating Temperature	-5 Â°C
Max Operating Temperature	45 Â°C
Humidity Range Operating	5 - 90% (non-condensing)
Min Storage Temperature	-40 Â°C
Max Storage Temperature	70 Â°C
Humidity Range Storage	5 - 90% (non-condensing)
