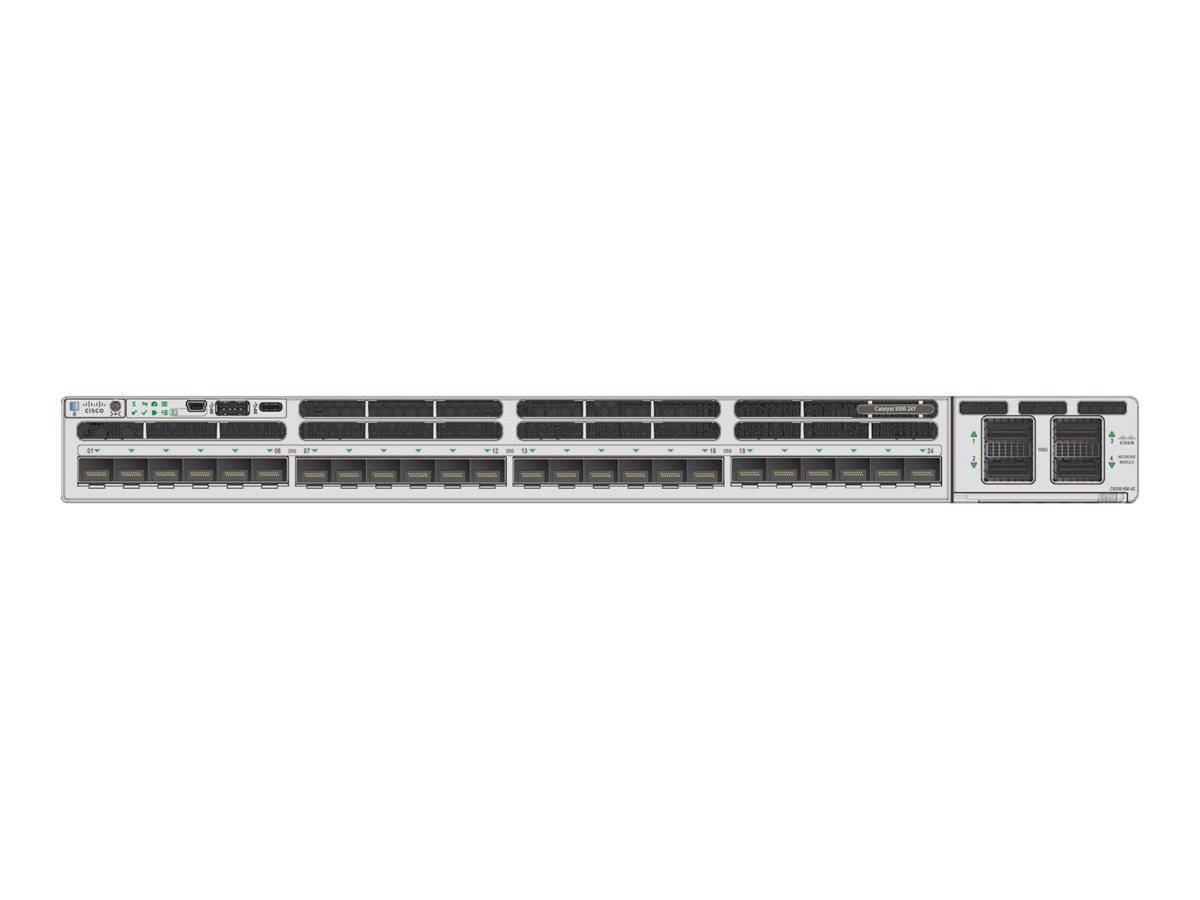

Cisco Catalyst 9300X / Network Essentials / switch / L3 / Managed / 24 x 1/10/25 Gigabit SFP28 / rack-mountable | C9300X-24Y-E

Cisco Catalyst 9300X Network Essentials switch C9300X24YE

Description
Features

Special Features

USB 2.0 slot to load system images and set configurations
Easy transition from 10G to 25G with dual-rate optics
Flexible downlink options with 1G Copper and Fiber as well as the densest Multigigabit links
Intelligent Power Management with Cisco StackPower technology, providing power stacking among members for power redundancy
Line-rate, hardware-based Flexible NetFlow (FNF), delivering flow collection of up to 128,000 flows
IPv6 support in hardware, providing wire-rate forwarding for IPv6 networks
Dual-stack support for IPv4/IPv6 and dynamic hardware forwarding table allocations for ease of IPv4-to-IPv6 migration
Support for both static and dynamic NAT and Port Address Translation (PAT)
IEEE 802.1ba AV Bridging (AVB) built in to provide a better audio and video experience through improved time synchronization and QoS
Precision Time Protocol (PTP; IEEE 1588v2) provides accurate clock synchronization with sub-microsecond accuracy making it suitable for distribution and synchronization of time and frequency over network

Product Specification

Device Type	Switch - 24 ports - L3 - Managed - stackable
Enclosure Type	Rack-mountable 1U
Subtype	25 Gigabit Ethernet
Ports	24 x 1/10/25 Gigabit SFP28
Performance	Switching capacity: 2000 Gbps Â¦ Switching capacity with stacking: 3000 Gbps Â¦ Forwarding rate: 1488 Mpps Â¦ Forwarding rate with stacking: 2232 Mpps
Capacity	IPv4 routing table entries: 39000 Â¦ Flexible NetFlow entries: 128000 Â¦ Direct IPv4 routes: 24000 Â¦ Indirect IPv4 routes: 15000 Â¦ IPv6 routing table entries: 19500 Â¦ VLAN IDs: 4094 Â¦ Switched virtual interfaces (SVIs): 1000 Â¦ Multicast routing flow table: 8000 Â¦ QoS scale entries: 4000 Â¦ ACL scale entries: 5000 Â¦ PVST instances: 300 Â¦ STP Virtual Ports for PVST: 13000 Â¦ STP Virtual Ports for MST: 13000 Â¦ Routed ports: 448
MAC Address Table Size	32000 entries
Jumbo Frame Support	9198 bytes
Routing Protocol	OSPF, IS-IS, RIP-1, RIP-2, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng
Remote Management Protocol	SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
Encryption Algorithm	256-bit AES
Features	DHCP support, trunking, Syslog support, full duplex mode, Stateful switchover (SSO), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Service (QoS), Non-Stop Routing (NSR), Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), Cisco StackWise-480 technology, Cisco StackPower technology, Flexible NetFlow (FNF), Multicast Source Discovery Protocol (MSDP), 802.1x authentication, 16MB packet buffer, FTP client, MACsec support, 3 fans, Control plane protection (CoPP), Virtual Extensible LAN (VXLAN), Application Visibility and Control (AVC), Source-Specific Multicast (SSM), integrated Wireshark, VLAN Double Tagging (Q-in-Q), Ethernet over MPLS (EoMPLS), Hierarchical Virtual Private LAN Service (H-VPLS), Private VLAN, Layer 3 VPN (L3VPN) support, Encapsulated Remote SPAN (ERSPAN), Security Group Tag (SGT) caching, Security Group Access Control List (SGACL), IT Service Management (ITSM) integration, third-party IP Address Management (IPAM) integration, Cisco StackWise-1T technology
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at
RAM	16 GB
Flash Memory	16 GB
Status Indicators	Status
Expansion / Connectivity	Expansion / Connectivity
Interfaces	24 x 1/10/25GBase-X SFP28 Â¦ 1 x USB 2.0
Expansion Slots	1 (total) / 1 (free) x Expansion Slot
Power	Power
Power Device	Internal power supply
Power Provided	715 Watt
Voltage Required	AC 120/230 V (50/60 Hz)
Miscellaneous	Miscellaneous
Compliant Standards	CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, CCC, ICES-003 Class A, EN 61000-4-5, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, EN 55022 Class A, FCC CFR47 Part 15 A, EN 300 386, TVCN 7317, VCCI V-3/2009 Class A, CAN/CSA-C22.2 No. 60950-1
Dimensions & Weight	Dimensions & Weight
Width	44.5 cm
Depth	44.7 cm
Height	4.39 cm
Manufacturer Warranty	Manufacturer Warranty
Service & Support	Limited warranty - replacement - lifetime - response time: next business day Â¦ Technical support - consulting - 90 days
Environmental Parameters	Environmental Parameters
Min Operating Temperature	-5 Â°C
Max Operating Temperature	45 Â°C
Humidity Range Operating	5 - 90% (non-condensing)
Min Storage Temperature	-40 Â°C
Max Storage Temperature	70 Â°C
Humidity Range Storage	5 - 90% (non-condensing)
