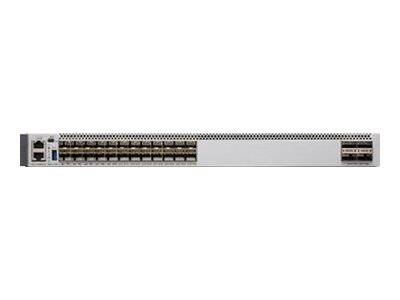

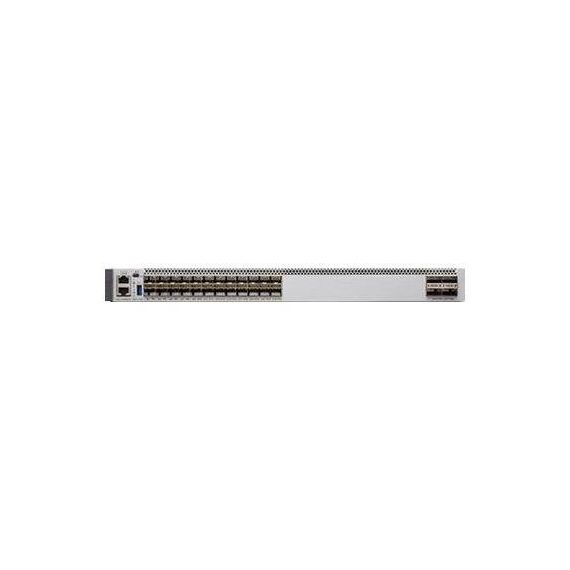

Cisco Catalyst 9500 - Network Advantage - switch - L3 - Managed - 24 x 25 Gigabit SFP28 - rack-mountable | C9500-24Y4C-A
Please sign in so that we can notify you about a reply
Special Fetures
- Up to 960-Gbps switching capacity (IPv4) with up to 1440 Mpps of throughput
- Up to 24 nonblocking 40 Gigabit Ethernet QSFP ports
- Platinum-rated AC power supplies
- Up to 512,000 Flexible NetFlow (FNF) entries in hardware
- Up to 32 MB of shared buffer per ASIC
- Up to 64,000 routing entries for high-end campus access and aggregation deployments
- IPv6 support in hardware, providing wire-rate forwarding for IPv6 networks
- Dual-stack support for IPv4/IPv6 and dynamic hardware forwarding table allocations, for ease of IPv4-to-IPv6 migration
- Support for both static and dynamic NAT and Port Address Translation (PAT)
- Scalable routing (IPv4, IPv6, and multicast) tables and Layer 2 tables
Product Specification
| Device Type | Switch - 24 ports - L3 - Managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | 25 Gigabit Ethernet |
| Ports | 24 x 25 Gigabit SFP28 |
| Performance | Switching capacity (full duplex): 1.6 Tbps ¦ Forwarding rate: 1 Bpps |
| Capacity | Routing table entries: 80000 ¦ Indirect IPv4 routes: 212000 ¦ Host IPv4 routes: 90000 ¦ Indirect IPv6 routes: 212000 ¦ Host IPv6 routes: 90000 ¦ Multicast scale: 32000 ¦ QoS ACL scale: 16000 ¦ Security ACL scale: 270000 ¦ FNF entries: 96000 ¦ VLAN IDs: 4000 ¦ Switched virtual interfaces (SVIs): 4000 |
| MAC Address Table Size | 64K entries |
| Jumbo Frame Support | 9198 bytes |
| Routing Protocol | OSPF, IS-IS, RIP-2, BGP, EIGRP, IGMP, VRRP, PIM-SM, PIM-SSM, MSDP, RIPng, MPLS |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, SNMP, SNMP 3, SNMP 2c, TFTP, NETCONF, RESTCONF |
| Encryption Algorithm | 256-bit AES |
| Features | DHCP support, NAT support, PAT support, trunking, MPLS support, Non-Stop Forwarding (NSF), Stateful switchover (SSO), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Virtual Route Redundancy Protocol (VRRP) support, Access Control List (ACL) support, Quality of Service (QoS), Non-Stop Routing (NSR), Remote Switch Port Analyzer (RSPAN), Hot Standby Router Protocol (HSRP) support, Virtual Routing and Forwarding (VRF), Maximum Likelihood Demodulation (MLD), Flexible NetFlow (FNF), Multicast Source Discovery Protocol (MSDP), MACsec support, Control plane protection (CoPP), integrated Wireshark, VLAN Double Tagging (Q-in-Q), Ethernet over MPLS (EoMPLS), Hierarchical Virtual Private LAN Service (H-VPLS), Private VLAN, Layer 3 VPN (L3VPN) support, CoAP support, Switched Port Analyzer (SPAN) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3ba |
| Processor | 1: 2.4 GHz |
| RAM | 16 GB |
| Flash Memory | 16 GB |
| Built-in Devices | RFID tag |
| Expansion / Connectivity | |
| Interfaces | 24 x 25Gbit LAN SFP28 ¦ 4 x 100Gbit LAN ¦ 2 x USB 3.0 |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 1 (installed) / 2 (max) |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 |
| Power Provided | 650 Watt |
| Voltage Required | AC 120/230 V (50 - 60 Hz) |
| Miscellaneous | |
| MTBF | 336,780 hours |
| Compliant Standards | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, CCC, ICES-003 Class A, EN 61000-4-5, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, EN 55022 Class A, FCC CFR47 Part 15 A, EN 300 386, TVCN 7317, VCCI V-3/2009 Class A, CAN/CSA-C22.2 No. 60950-1 |
| Software / System Requirements | |
| Software Included | Cisco IOS XE 16.8.1 |
| Dimensions & Weight | |
| Width | 44.5 cm |
| Depth | 45.7 cm |
| Height | 4.39 cm |
| Weight | 9.52 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - consulting - 90 days |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Min Storage Temperature | -20 °C |
| Max Storage Temperature | 65 °C |
| Humidity Range Storage | 5 - 95% (non-condensing) |
