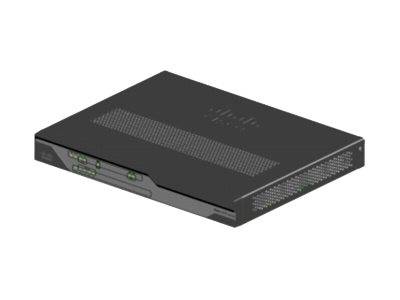

Cisco 892FSP / Router / 8-port switch / GigE / WAN ports: 2 | C892FSP-K9
Product Features
- Secure network connectivity
Cisco 890 series router delivers high performance with integrated security and threat defense. Network security has become a fundamental building block of any network, and Cisco router plays an important role in embedding security at the customer's access edge. Cisco IOS content filtering uses a website caching and rating architecture to deliver the scalability and flexibility of an enterprise-class filtering solution, at a breakthrough price point. This solution is scalable and easy to maintain, ideally suited for small businesses and enterprise small branch offices. Cisco 890 series router comes with a comprehensive security solution that protects organizations' networks from known and Internet vulnerabilities and attacks, while improving employee productivity. - Metro Ethernet connectivity
Cisco 890 series router is ideal for service provider deployments as Metro Ethernet customer premises equipment (CPE). Cisco 892 integrated services router includes two onboard WAN interfaces, one Gigabit Ethernet WAN port, and one Fast Ethernet WAN port to support the high-bandwidth demands of Metro Ethernet deployments. The router also provides failover protection and load balancing. The Cisco 890 series provides significant value to customers by simplifying deployment of Ethernet WAN services with end-to-end OAM, SLA monitoring and verification, and configuration management, resulting in increased operational efficiency and reduced operating expenses (OpEx). - High availability
Cisco 890 series router enables customers to deliver high-performance and high-availability, mission-critical business applications. These capabilities include Virtual Router Redundancy Protocol (VRRP) (RFC 2338), Hot Standby Router Protocol (HSRP), Multigroup HSRP (MHSRP), and dial backup with external modem through a virtual auxiliary port. Cisco 890 series router is integrated with ISDN BRI for a secondary WAN backup connection. If the primary Ethernet-access WAN is disconnected, the router detects this failure and fails over to the secondary backup WAN. - Integrated Wireless LAN capability
The Cisco 890 series is ideal for enterprise small branch offices and small businesses that need to be connected to larger enterprise networks. This router helps extend corporate networks to secure remote sites while giving users access to the same applications found in a corporate office. It provides increased reliability for diversity of wireless data, voice, and video applications. When users require WLAN access, visibility and control of network security are even more critical at the remote site. The Cisco 890 series meets this need with a single device that combines integrated 802.11 a/g/n capabilities with security features such as Wi-Fi Protected Access (WPA), including authentication with IEEE 802.1x with Cisco Extensible Authentication Protocol (LEAP) and Protected EAP (PEAP), and encryption with WPA Temporal Key Integrity Protocol (TKIP).
Special Features
- Increased performance for concurrent services
- Integrated Gigabit and Fast Ethernet WAN ports
- Integrated 8-port 10/100BASE-T managed switch
- Integrated WAN backup
- Real-time clock
- Enhanced security
- Separate console, auxiliary, and USB ports
- Unified wireless management
Product Specification
Device Type | Router - 8-port switch (integrated) |
Enclosure Type | Desktop |
Connectivity Technology | Wired |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
Capacity | Connection / user qty: 50 |
Network / Transport Protocol | L2TP, IPSec |
Routing Protocol | OSPF, RIP-1, RIP-2, BGP, EIGRP, HSRP, VRRP, NHRP, GRE, WCCP, Bidirectional Forwarding Detection (BFD) |
Remote Management Protocol | Telnet, SNMP 3, HTTP, SSH, CLI |
Authentication Method | RADIUS, TACACS+ |
Features | NAT support, VPN support, VLAN support, IGMP snooping, DiffServ support, MAC address filtering, IPv6 support, Intrusion Prevention System (IPS), Low-latency queuing (LLQ), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Fair Queuing (WFQ), Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Service (QoS), Link Fragmentation and Interleaving (LFI), RADIUS support, DHCP server, DNS proxy, DHCP relay, DHCP client, Virtual Routing and Forwarding (VRF), Class of Service (CoS) |
Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3ah, IEEE 802.1ag, VCCI-II, EN55024, CSA 22.2 No. 60950, EN55022 Class B, AS/NZ 3548 Class B, AS/NZS 60950-1, CS-03, EN 60555-2, UL 60950-1, IEC 60950-1 |
RAM | 512 MB (installed) / 1 GB (max) |
Flash Memory | 256 MB (installed) / 256 MB (max) |
Status Indicators | Port status, power |
Expansion / Connectivity | Expansion / Connectivity |
Interfaces | LAN: 8 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ WAN: 1 x SFP (mini-GBIC) ¦ WAN: 2 x 10Base-T/100Base-TX - RJ-45 ¦ Management: 1 x auxiliary - RJ-45 ¦ USB 2.0: 1 x 4 pin USB Type A ¦ Management: 1 x console - RJ-45 |
Power | Power |
Power Device | External power adapter - 60 Watt |
Voltage Required | AC 120/230 V (50/60 Hz) |
Miscellaneous | Miscellaneous |
Cables Included | 1 x network cable - 1.8 m |
Software / System Requirements | Software / System Requirements |
OS Provided | Cisco IOS Advanced IP services |
Dimensions & Weight | Dimensions & Weight |
Width | 32.3 cm |
Depth | 24.8 cm |
Height | 4.4 cm |
Manufacturer Warranty | Manufacturer Warranty |
Service & Support | Limited warranty - 1 year |
Environmental Parameters | Environmental Parameters |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 40 °C |
Humidity Range Operating | 10 - 85% (non-condensing) |
