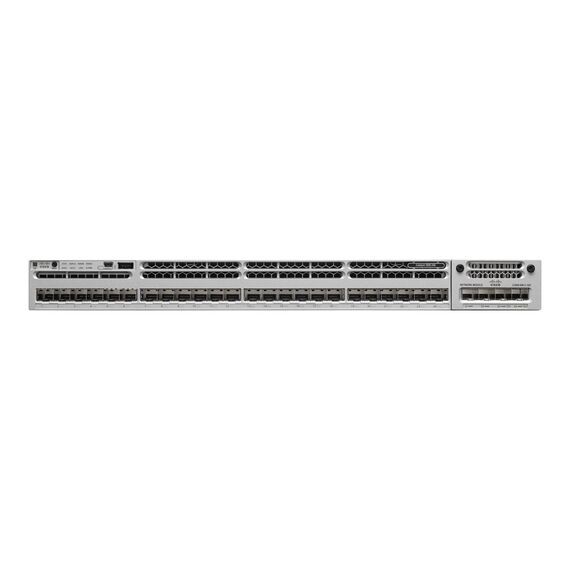

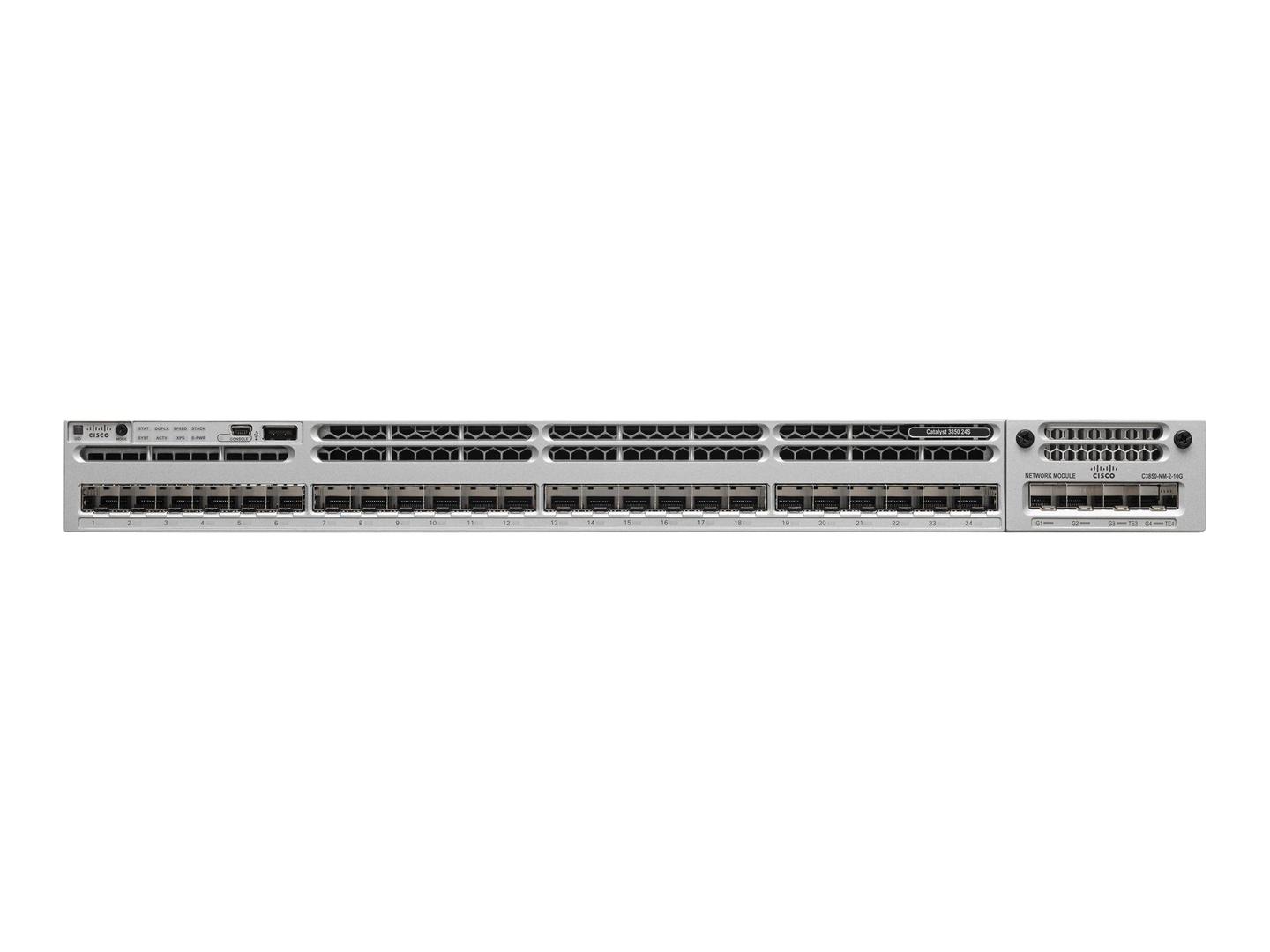

Cisco Catalyst 3850-24S-E / Switch / L3 / Managed / 24 x Gigabit SFP / desktop, rack-mountable | WS-C3850-24S-E
WS-C3850-24S-E
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Special Features
- Cisco StackWise-480 technology provides scalability and resiliency with 480 Gbps of stack throughput
- Cisco StackPower technology provides power stacking among stack members for power redundancy
- Dual redundant, modular power supplies and three modular fans providing redundancy
- Full IEEE 802.3at (PoE+) with 30 W power on all copper ports in 1 rack unit (RU) form factor
- Cisco UPOE with 60 W power per port in 1 rack unit (RU) form factor
Product Specification
| Device Type | Switch - 24 ports - L3 - Managed - stackable |
| Enclosure Type | Desktop, rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 24 x Gigabit SFP |
| Performance | Switching capacity: 92 Gbps ¦ Stacking bandwidth: 480 Gbps ¦ Forwarding performance: 68.4 Mpps |
| Capacity | IPv4 routes: 24000 ¦ NetFlow entries: 24000 ¦ Switched virtual interfaces (SVIs): 1000 |
| MAC Address Table Size | 32000 entries |
| Jumbo Frame Support | 9198 bytes |
| Routing Protocol | BGP-4, IS-IS, RIP-1, RIP-2, EIGRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, RIPng |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, SSH, CLI |
| Authentication Method | Kerberos, Secure Shell (SSH), RADIUS, TACACS+ |
| Features | Auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, IPv6 support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, Virtual Route Forwarding-Lite (VRF-Lite), MLD snooping, Dynamic ARP Inspection (DAI), STP Root Guard, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), IPv4 support, Shaped Round Robin (SRR), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), layer 3 load balancing, Energy Efficient Ethernet, Cisco StackWise-480 technology, Cisco StackPower technology, Flexible NetFlow (FNF) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s |
| RAM | 4 GB |
| Flash Memory | 2 GB |
| Status Indicators | Port transmission speed, port duplex mode, system, status, PoE |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 24 x 1000Base-X SFP ¦ 1 x USB Type A ¦ 1 x management (mini-USB) Type B ¦ 1 x management (RS-232) RJ-45 ¦ 1 x management (Gigabit LAN) RJ-45 ¦ 2 x network stack device |
| Expansion Slots | 1 (total) / 1 (free) x Expansion Slot |
| Power | Power |
| Power Device | Internal power supply |
| Installed Qty | 1 (installed) / 2 (max) |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Power Provided | 350 Watt |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Miscellaneous | Miscellaneous |
| MTBF | 300,762 hours |
| Compliant Standards | CISPR 22 Class A, GOST, CISPR 24, EN 61000-3-2, NOM, EN 61000-3-3, EN55024, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1 Second Edition, KCC, RoHS, ISO 7779, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, KN24, CNS 13438(95) Class A, KN22 Class A, AS/NZS CISPR 22, EN 55022 Class A |
| Software / System Requirements | Software / System Requirements |
| Software Included | Cisco IOS IP Services |
| Dimensions & Weight | Dimensions & Weight |
| Width | 44.5 cm |
| Depth | 45 cm |
| Height | 4.45 cm |
| Weight | 7.03 kg |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - advance parts replacement - lifetime - response time: next business day ¦ Technical support - consulting - 90 days |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -5 °C |
| Max Operating Temperature | 45 °C |
| Humidity Range Operating | 10 - 95% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
Features - Cisco - WS-C3850-24S-E
More Details
Product Code
6776B92
EAN Code
0882658684593
Manufacturer
Cisco
