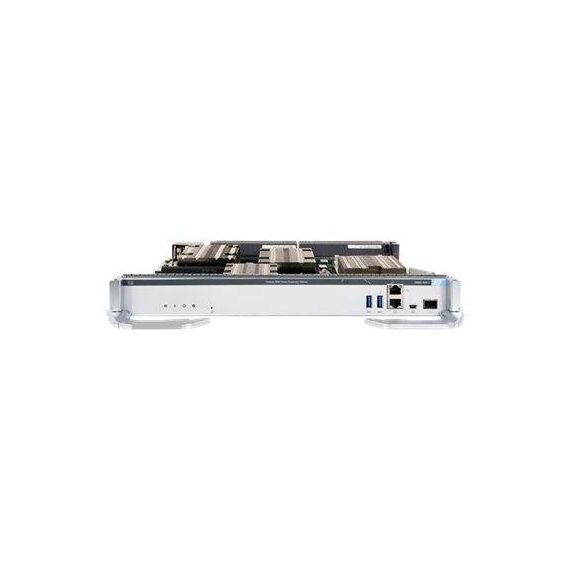

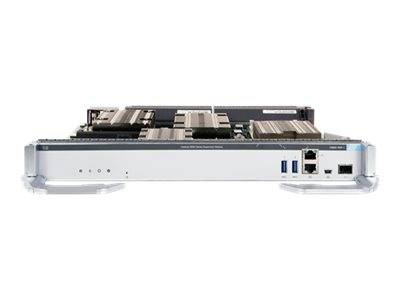

Cisco Supervisor Engine 1 / Control processor / GigE / 1U / plug-in module / for P/N: C9606R, C9606R-10A, C9606R-1A, C9606R-48S-BN-A, C9606R-48Y24C-BN-A, C9606R-EDU | C9600-SUP-1=
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Control processor |
| Height (Rack Units) | 1U |
| Width | 38.1 cm |
| Height | 4.32 cm |
| Weight | 5.45 kg |
| Processor / Memory / Storage | Processor / Memory / Storage |
| Processors Installed | 2 GHz |
| RAM | 16 GB |
| Flash Memory | 16 GB |
| Hard Drive | SSD 960 GB |
| Networking | Networking |
| Form Factor | Plug-in module |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Network / Transport Protocol | IPv6 |
| Routing Protocol | OSPF, RIP, IS-IS, EIGRP, HSRP, VRRP, PIM-SM, PIM-SSM, MSDP, policy-based routing (PBR), MPLS, STP |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, NETCONF, RESTCONF, gRPC, IPv6, YANG |
| Performance | Per-slot switching capacity: 2.4 Tbps ¦ Switching capacity: 9.6 Tbps ¦ Forwarding rate: 3 Bbps ¦ IPv4 routing: 212000 ¦ IPv6 routing: 212000 |
| Capacity | FNF entries (IPv4/IPv6): 294000 ¦ Virtual interfaces (VLANs): 4094 ¦ PVST instances: 1000 ¦ Switched virtual interfaces (SVIs): 1000 ¦ MAC addresses: 82000 ¦ Jumbo frame size: 9216 ¦ ARP entries: 90000 ¦ Multicast routes: 32000 ¦ QoS ACL scale: 16000 ¦ Security ACL scale: 27000 ¦ Packet buffer size: 108 MB |
| Features | Spanning Tree Protocol (STP) support, Quality of Service (QoS), PXE support, Remote Switch Port Analyzer (RSPAN), Virtual Routing and Forwarding (VRF), Flexible NetFlow (FNF), Control plane protection (CoPP), Virtual Extensible LAN (VXLAN), Location ID Separation Protocol (LISP), Cisco Discovery Protocol, Zero-touch provisioning (ZTP), secure boot, Switched Port Analyzer (SPAN), Cisco StackWise Virtual, Security Group Tag (SGT) caching, Embedded Event Manager (EEM), Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, Graceful Insertion and Removal (GIR) mode, Network-Based Application Recognition (NBAR) 2, Media Access Control Security (MACsec), image signing, Cisco Trust Anchor module |
| Encryption Algorithm | 128-bit AES, 256-bit AES |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3ba, IEEE 802.3by |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x console - mini-USB ¦ 1 x console - RJ-45 ¦ 2 x USB 3.0 ¦ 1 x 1000Base-T (management) - RJ-45 ¦ 1 x management - SFP+ |
| Miscellaneous | Miscellaneous |
| MTBF | 271,420 hours |
| Compliant Standards | CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, IEC 60950-1, EN 60950-1, UL 60950-1 Second Edition, CAN/CSA C22.2 No. 60950-1-07, NOM-019-SCFI-1998, EN 300 386 V1.6.1, AS/NZS 60950-1:2011, FCC CFR47 Part 15 B Class A, KN35, KN32 Class A, EN 55032 Class A, ICES-003:2016 issue 6 Class A, CISPR 32 Class A, TCVN 7189 Class A, TCVN 7317, CNS13438:2006 Class A, GB 4943-95 |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -5 °C |
| Max Operating Temperature | 45 °C |
| Humidity Range Operating | 10 - 95% (non-condensing) |
| Compatibility Information | Compatibility Information |
| Designed For | P/N: C9606R, C9606R=, C9606R-10A, C9606R-1A, C9606R-48S-BN-A, C9606R-48Y24C-BN-A, C9606R-EDU |
Features - Cisco - C9600-SUP-1=
More Details
Product Code
677RM75
EAN Code
0889728195805
Manufacturer
Cisco
