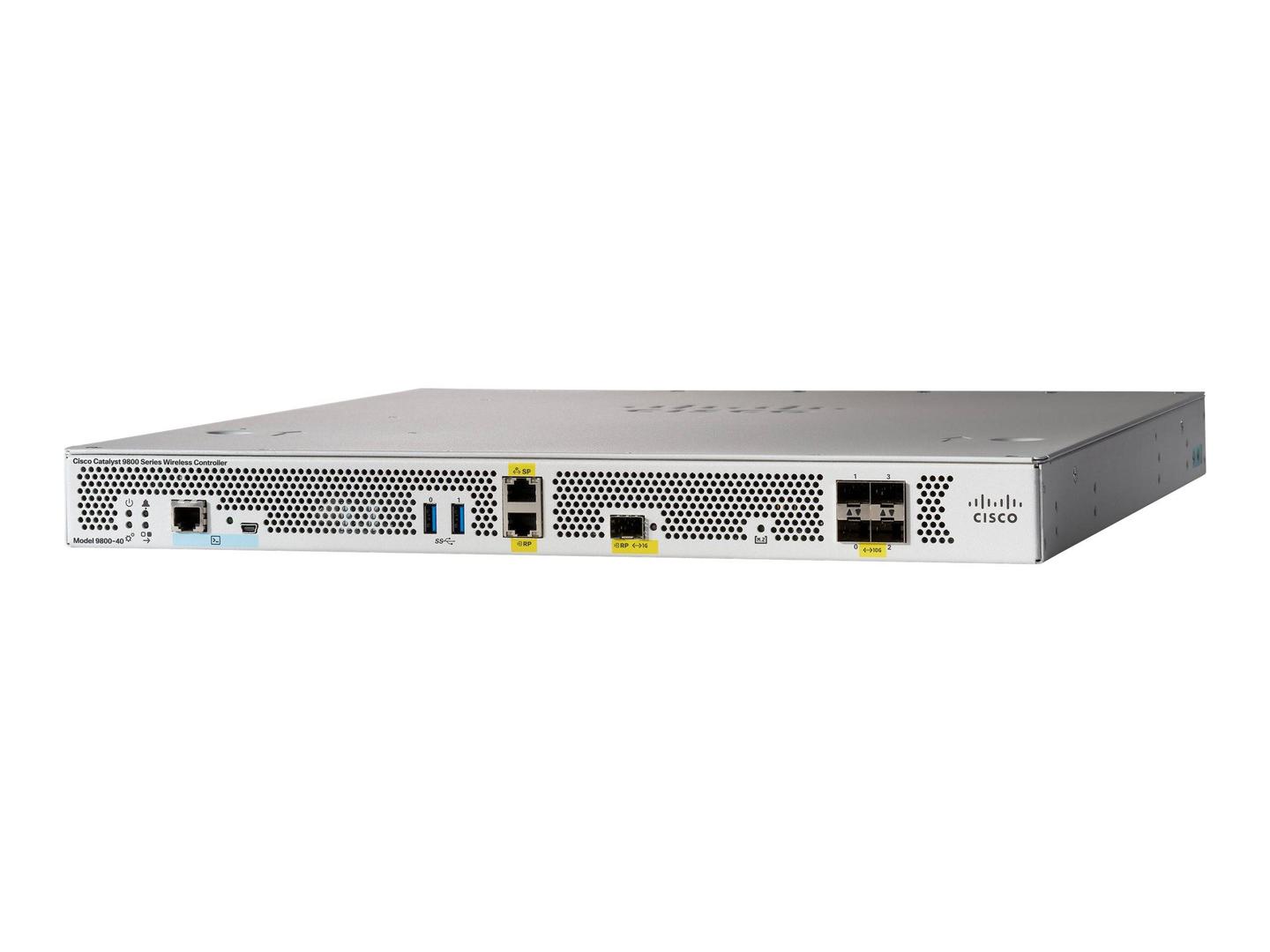

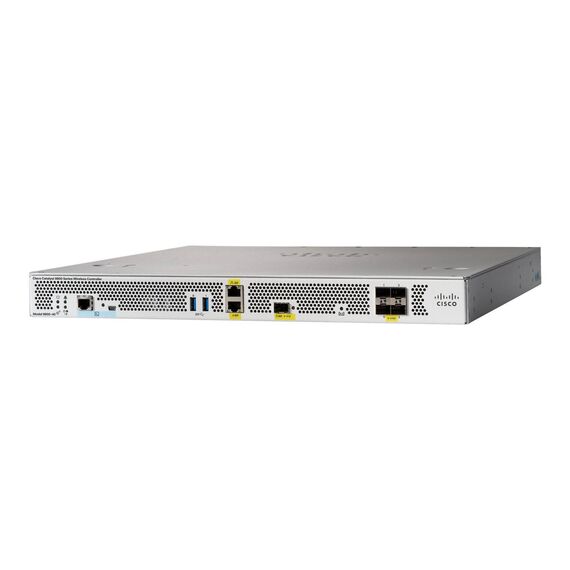

Cisco Catalyst 9800 Wireless Controller / Network management device / 10 GigE / Wi-Fi 5 / 1U / rack-mountable | C9800-40-K9
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Network management device |
| Height (Rack Units) | 1U |
| Width | 43.94 cm |
| Depth | 49.53 cm |
| Height | 4.37 cm |
| Weight | 10.34 kg |
| Processor / Memory / Storage | Processor / Memory / Storage |
| Hard Drive | SSD 240 GB |
| Networking | Networking |
| Form Factor | Rack-mountable |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet, IEEE 802.11ac Wave 2, IEEE 802.11ac Wave 1 |
| Network / Transport Protocol | TCP/IP, UDP/IP, ICMP/IP, IPSec, ARP, BOOTP, DHCP, Bonjour |
| Routing Protocol | CIDR |
| Remote Management Protocol | SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH |
| Performance | Throughput: 40 Gbps |
| Capacity | Maximum number of access points: 2000 ¦ Maximum number of clients: ¦ Wireless LANs: 4096 ¦ VLANs supported: 4096 |
| Status Indicators | Power, system, HDD activity, link/activity |
| Features | VLAN support, Syslog support, IPv6 support, SNTP support, Wi-Fi Multimedia (WMM) support, RADIUS support, CAPWAP support, Internet Control Message Protocol (ICMP), User Datagram Protocol (UDP), Datagram Transport Layer Security (DTLS) |
| Encryption Algorithm | Triple DES, AES, IKE, SSL, TLS, WPA, WPA2, PKI, ESP, CRL, CCM, CCMP |
| Authentication Method | RADIUS, Extensible Authentication Protocol (EAP) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.11b, IEEE 802.11a, IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11e, IEEE 802.1ae, IEEE 802.11n, IEEE 802.11k, IEEE 802.1AX, IEEE 802.11w, IEEE 802.11r, IEEE 802.11u |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x console - RJ-45 ¦ 1 x management - RJ-45 ¦ 1 x USB - Type A ¦ 2 x USB - Type A ¦ 1 x redundancy ¦ 4 x 10Gb Ethernet - SFP+ |
| Miscellaneous | Miscellaneous |
| Compliant Standards | VCCI, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, CISPR 22, EN50082-1, EN 61000-6-1, AS/NZS 60950-1, FCC CFR47 Part 15, AS/NZS CISPR 22, CNS 13438, EN 300 386, KN32, UL/CSA60950-1, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, IEC/EN 61000-4-11, IEC/EN 61000-4-2, EN 55032, IEC/EN 60950-1, CAN/CSA-C22.2 No. 60950-1, IEEE 802.3, IEEE 802.1x |
| Power | Power |
| Power Device | Internal power supply - hot-plug |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 381 Watt |
| Power Provided | 1100 Watt |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 1 year |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 5 - 85% (non-condensing) |
Features - Cisco - C9800-40-K9
More Details
Product Code
677QS45
EAN Code
0889728200431
Manufacturer
Cisco
