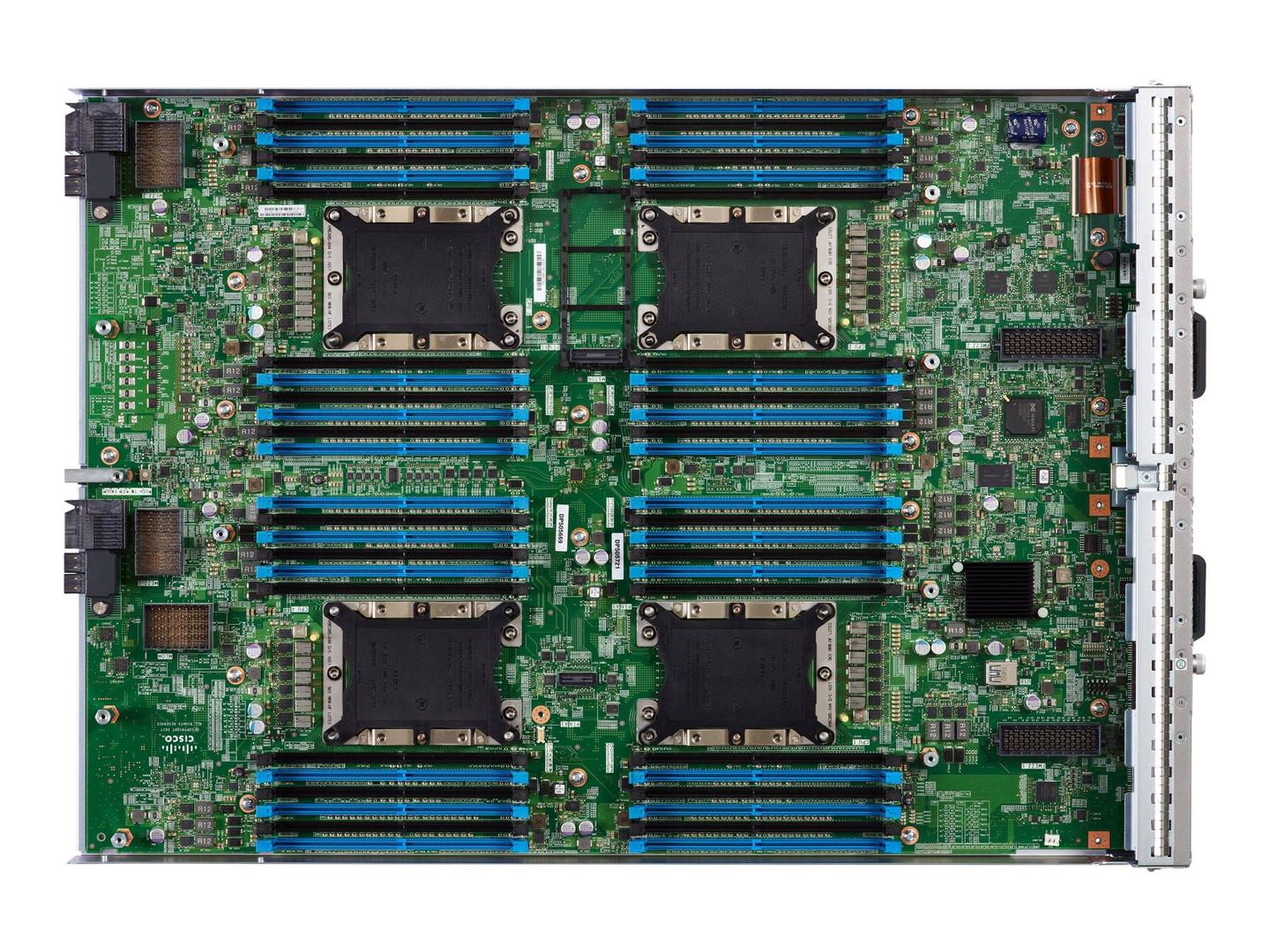

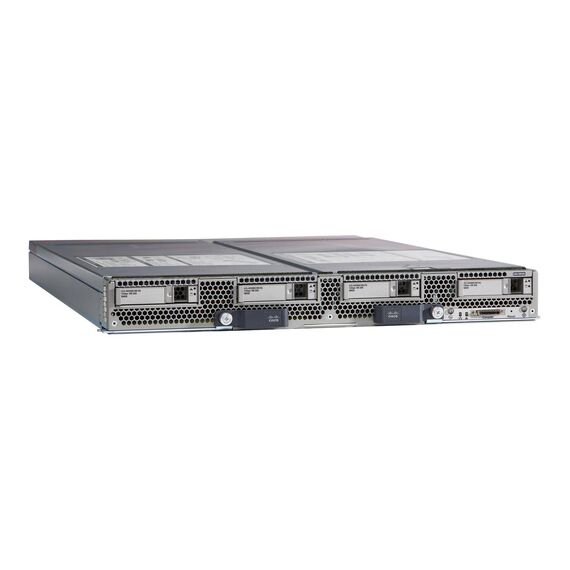

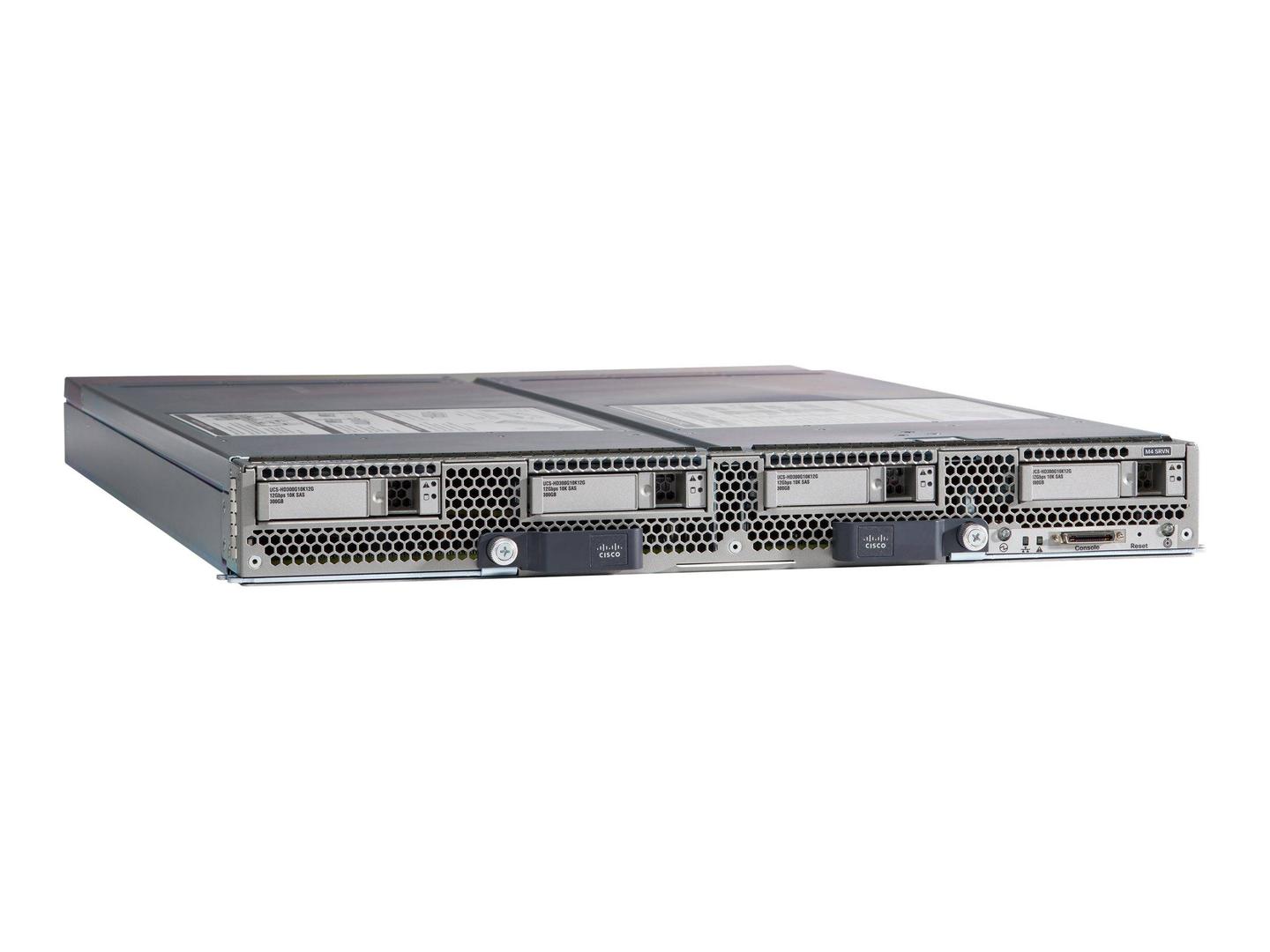

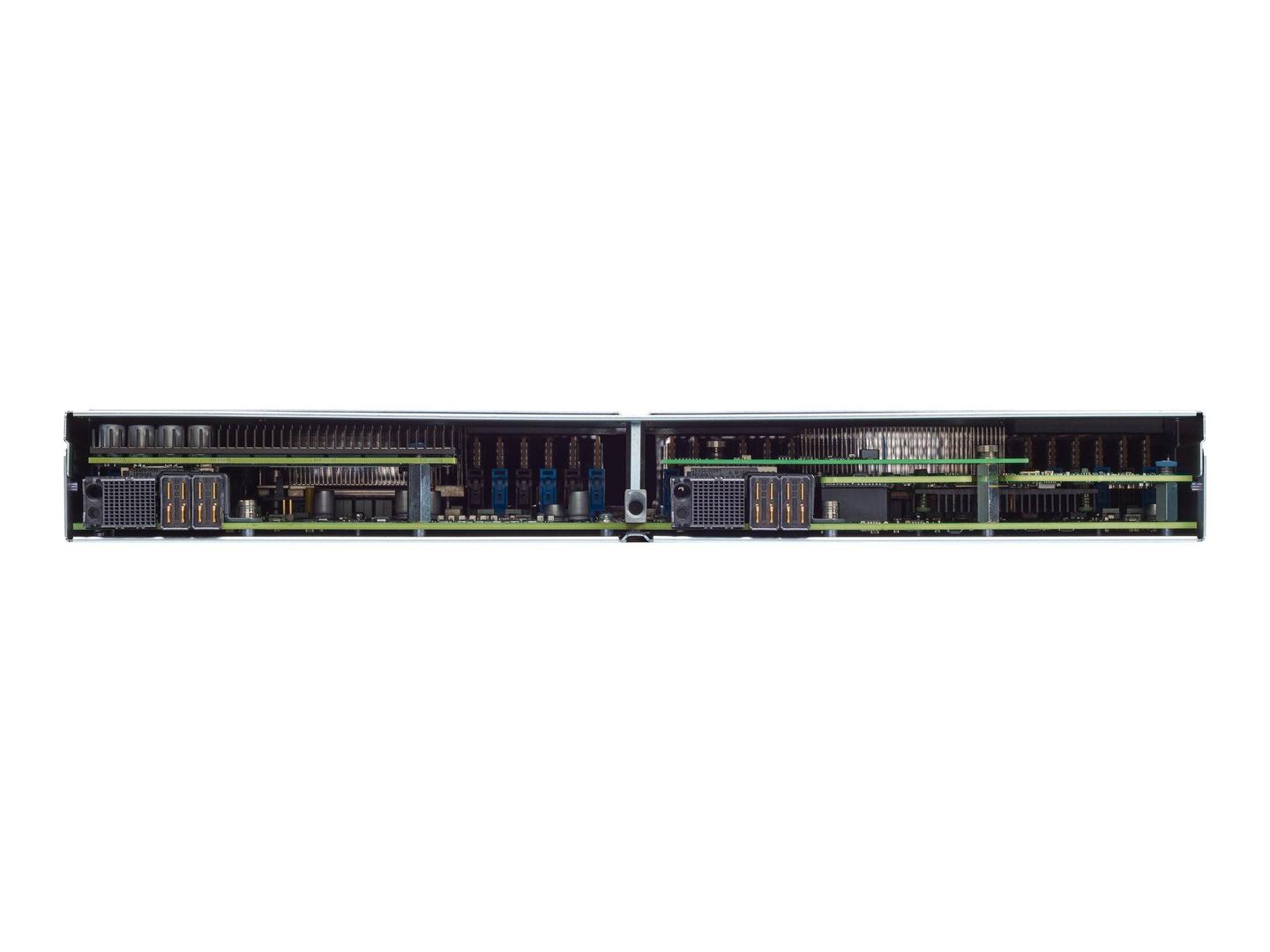

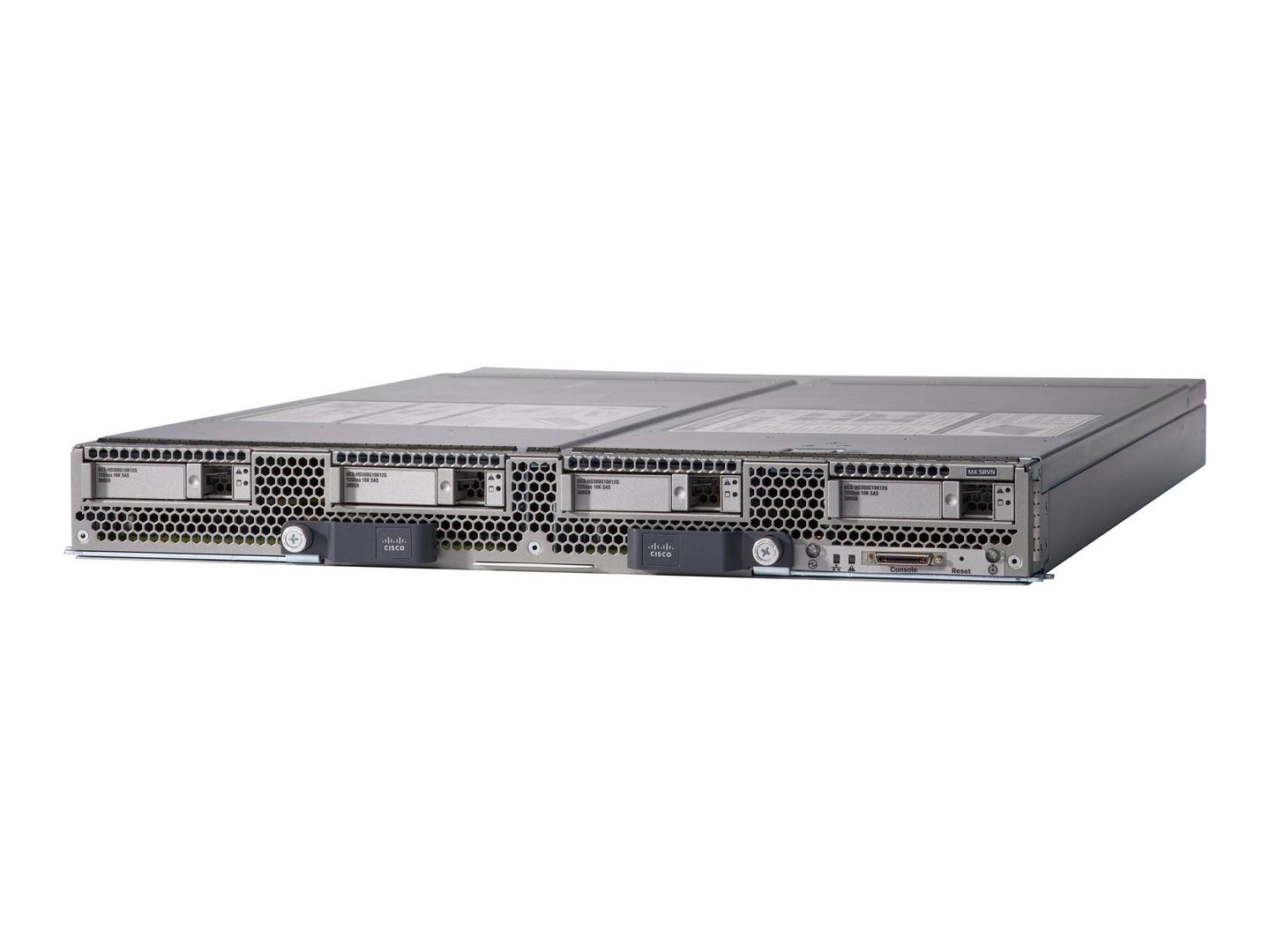

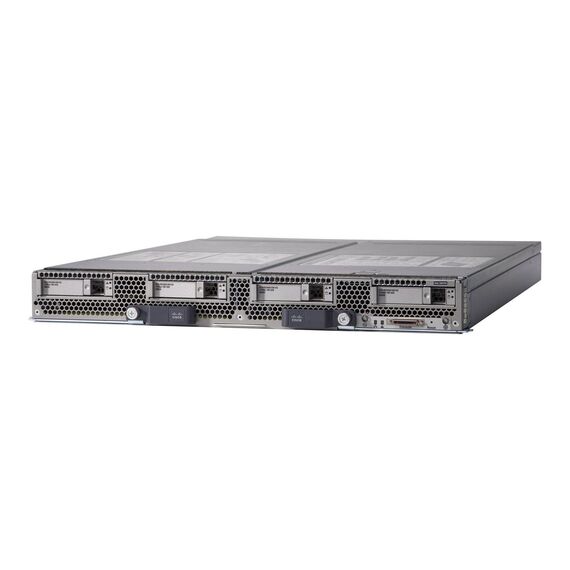

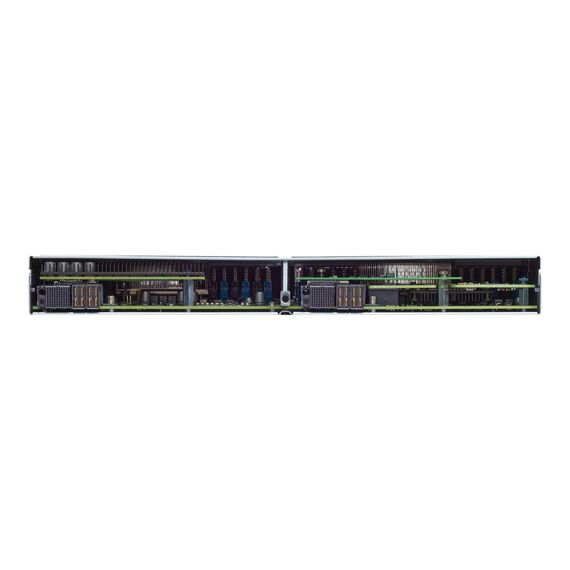

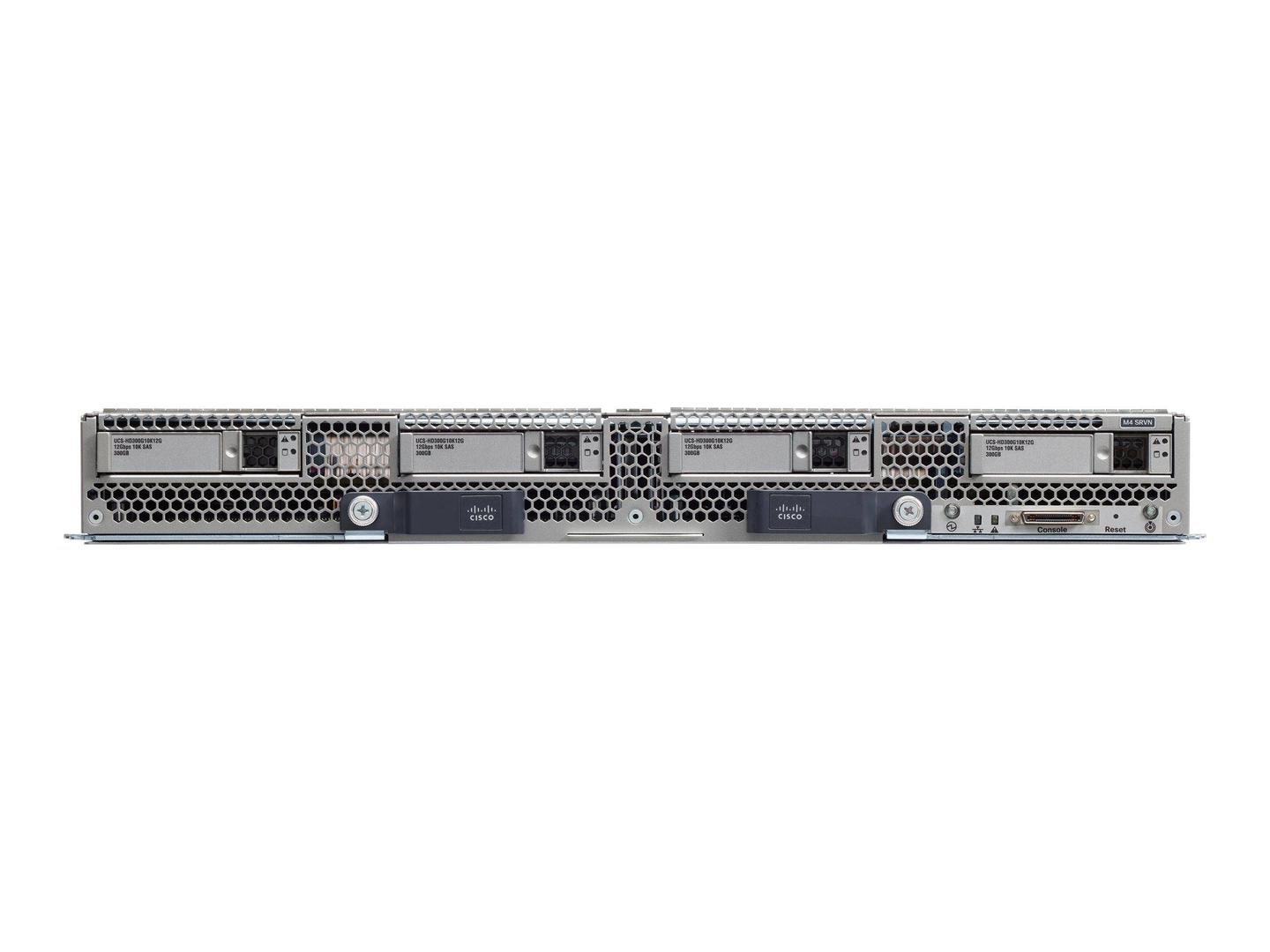

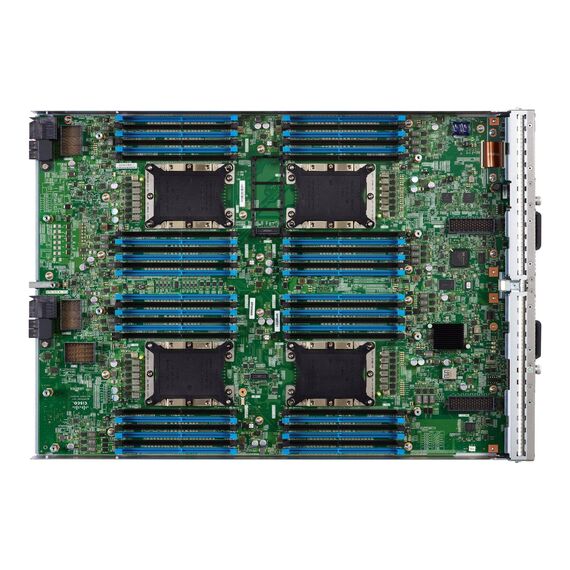

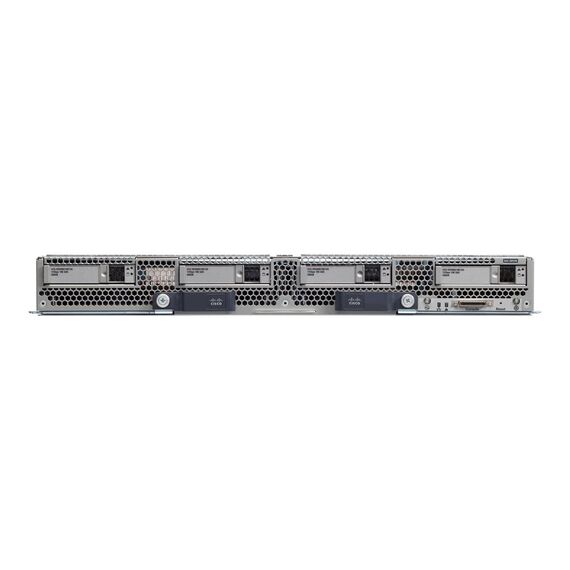

Cisco UCS B480 M5 Blade Server / Server / blade / 4-way / no CPU / RAM 0 GB / SATA/SAS / hot-swap 2.5" bay(s) / no HDD / no OS / monitor: none / DISTI | UCSB-B480-M5-CH
UCSB-B480-M5-CH
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Special Features
- Reduces the Total Cost of Ownership (TCO) by removing management modules from the chassis, making the chassis stateless
- Provides a single, highly available Cisco Unified Computing System management domain for all system chassis and rack servers, reducing administrative tasks
- Cisco FlexStorage storage subsystem
Product Specification
| Type | Server |
| Product Form Factor | Blade |
| Server Scalability | 4-way |
| Front Accessible Bays Qty | 4 |
| Hot-Swap Bays Qty | 4 |
| Processor / Chipset | Processor / Chipset |
| CPU | No CPU |
| Max CPU Qty | 4 |
| CPU Upgradability | Upgradable |
| RAM | RAM |
| Installed Size | 0 GB / 6 TB (max) |
| Technology | DDR4 SDRAM - ECC |
| Form Factor | DIMM 288-pin |
| Slots | 48 (Total) / 48 (empty) |
| Hard Drive | Hard Drive |
| Type | No HDD |
| Optical Storage | Optical Storage |
| Type | No optical drive |
| Card Reader | Card Reader |
| Supported Flash Memory Cards | SD Memory Card |
| Monitor | Monitor |
| Monitor Type | None. |
| Networking | Networking |
| Ethernet Controller | Cisco UCS Virtual Interface Card 1340 |
| Remote Management Controller | Cisco Integrated Management Controller |
| Expansion / Connectivity | Expansion / Connectivity |
| Bays | 4 (total) / 4 (free) x hot-swap 2.5" SFF |
| Slots | 2 (total) / 0 (free) x CPU ¦ 48 (total) / 48 (free) x DIMM 288-pin ¦ 2 (total) / 2 (free) x M.2 Card ¦ 2 (total) / 2 (free) x SD card ¦ 4 (total) / 4 (free) x expansion slot ¦ 1 (total) / 0 (free) x mLOM |
| Interfaces | 1 x KVM |
| Miscellaneous | Miscellaneous |
| Pricing Type | DISTI |
| Operating System / Software | Operating System / Software |
| OS Provided | No operating system |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - replacement - 3 years - response time: next business day |
Features - Cisco - UCSB-B480-M5-CH
More Details
Product Code
677MP10
EAN Code
0889728014199
Manufacturer
Cisco
