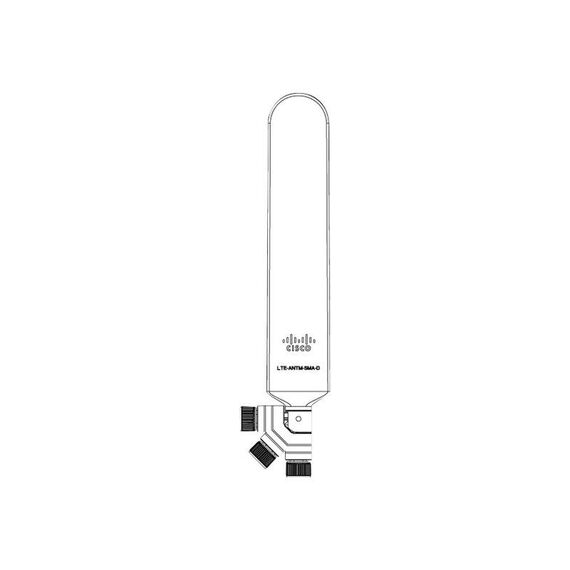

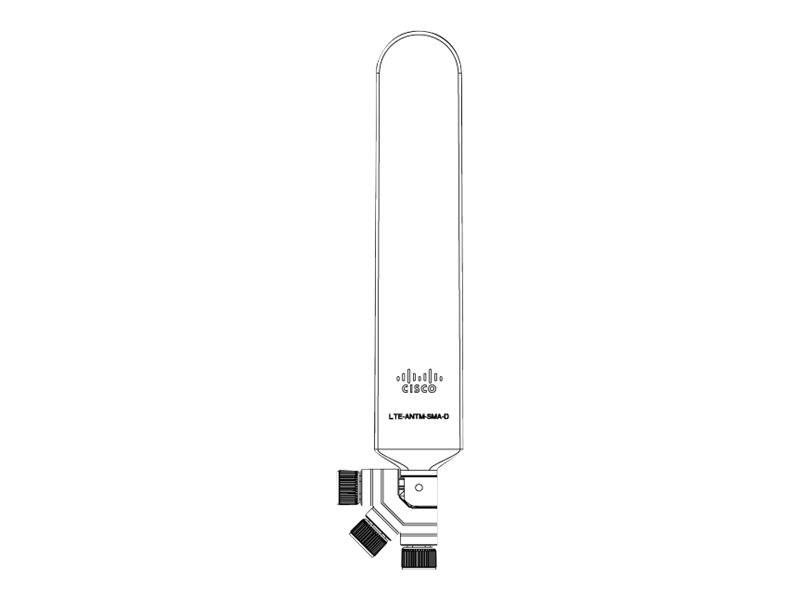

Cisco / Antenna / dipole / cellular / 2 dBi (for 698 / 960 MHz), 2.8 dBi (for 1447 / 1511 MHz), 3.7 dBi (for 1710 / 2690 MHz) / omni-directional / for P/N: C1131-8PLTEPWB, C1131-8PLTEPWE, C1131-8PLTEPWZ, C1131X-8PLTEPWB, C1131X-8PLTEPWE | LTE-ANTM-SMA-D=
Cisco / Antenna / dipole / cellular / 2 dBi (for 698 / 960 MHz), 2.8 dBi (for 1447 / 1511 MHz), 3.7 dBi (for 1710 / 2690 MHz) / omni-directional / for P/N: C1131-8PLTEPWB, C1131-8PLTEPWE, C1131-8PLTEPWZ, C1131X-8PLTEPWB, C1131X-8PLTEPWE | LTE-ANTM-SMA-D=
€45.26 inc. VAT
LTE-ANTM-SMA-D=
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Special Features
- Articulating joint that can maneuver into three stop positions
- SMA connector design has added rotational frictional torque
Product Specification
| Product Type | Antenna |
| Width | 3.7 cm |
| Depth | 1.1 cm |
| Height | 22.9 cm |
| Weight | 56.8 g |
| Aerial | Aerial |
| Form Factor | Dipole |
| Intended For | Cellular |
| Compatibility | LTE, 3G, 4G |
| Frequency Range | 698 - 960 MHz, 1710 - 2690 MHz, 1448 - 1511 MHz |
| Gain | 2 dBi (for 698 - 960 MHz), 2.8 dBi (for 1447 - 1511 MHz), 3.7 dBi (for 1710 - 2690 MHz) |
| Directivity | Omni-directional |
| Voltage Standing Wave Ratio (VSWR) | 2.5:1 (for 698 - 960 MHz), 2.5:1 (for 1447 - 1511 MHz), 2.0:1 (for 1710 - 2690 MHz) |
| Impedance | 50 Ohm |
| Cabling & Wiring | Cabling & Wiring |
| Connector Provided | SMA |
| Miscellaneous | Miscellaneous |
| Features | 90° angled, 45° angled |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -30 °C |
| Max Operating Temperature | 70 °C |
| Compatibility Information | Compatibility Information |
| Designed For | P/N: C1131-8PLTEPWB, C1131-8PLTEPWE, C1131-8PLTEPWZ, C1131X-8PLTEPWB, C1131X-8PLTEPWE, ISR1100-4GLTEGB, ISR1100-4GLTENA |
Features - Cisco - LTE-ANTM-SMA-D=
More Details
Product Code
677QX37
EAN Code
0889728146838
Manufacturer
Cisco
