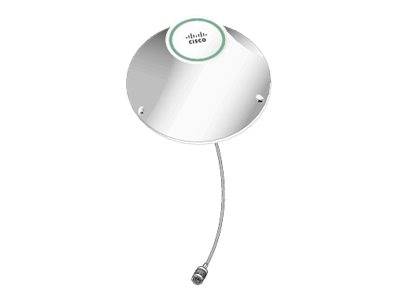

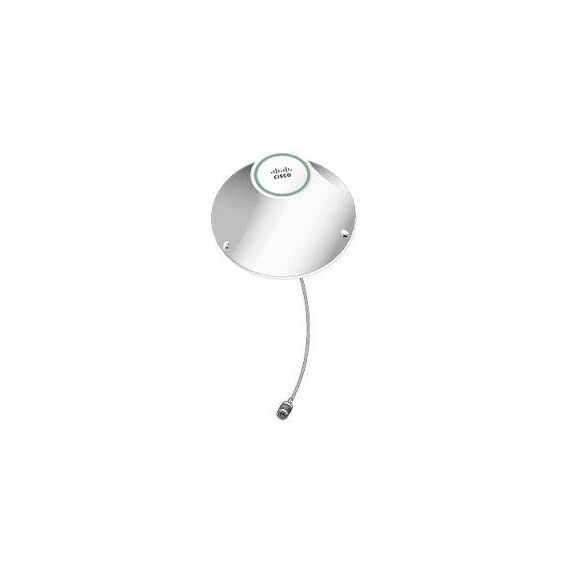

Cisco 4G Indoor Ceiling-Mount Omnidirectional Antenna / Antenna / 1.5 dBi | 4G-ANTM-OM-CM=
Please sign in so that we can notify you about a reply
Product Specification
| Product Type | Antenna |
| Package Content | Screws |
| Weight | 340 g |
| Enclosure Colour | White |
| Aerial | Aerial |
| Aerial Placing / Mounting | Ceiling mountable, wall-mountable, indoor |
| Frequency Range | 824 - 894 MHz, 698 - 806 MHz, 925 - 960 MHz, 1710 - 1885 MHz, 1920 - 1980 MHz, 2110 - 2170 MHz, 2500 - 2690 MHz |
| Gain | 1.5 dBi (for 700 - 960 MHz), 1 dBi (for 700 - 960 MHz), 1.7 dBi (for 1.7 - 2.2 GHz), 3.2 dBi (for 1.7 - 2.2 GHz), 3 dBi (for 2.5 - 2.7 GHz), 4 dBi (for 2.5 - 2.7 GHz) |
| Directivity | Omni-directional |
| Voltage Standing Wave Ratio (VSWR) | 2.0:1 |
| Impedance | 50 Ohm |
| Cabling & Wiring | Cabling & Wiring |
| Connector Provided | 1 x TNC male |
| Miscellaneous | Miscellaneous |
| Mounting Kit | Included |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 90 days |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -30 °C |
| Max Operating Temperature | 70 °C |
| Compatibility Information | Compatibility Information |
| Designed For | Cisco 3G wireless Enhanced High-Speed WAN Interface Card |
Features - Cisco - 4G-ANTM-OM-CM=
More Details
Product Code
677Q119
EAN Code
0882658396021
Manufacturer
Cisco
