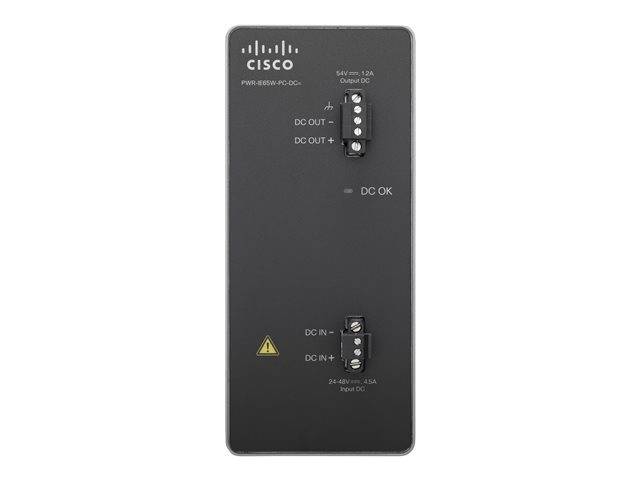

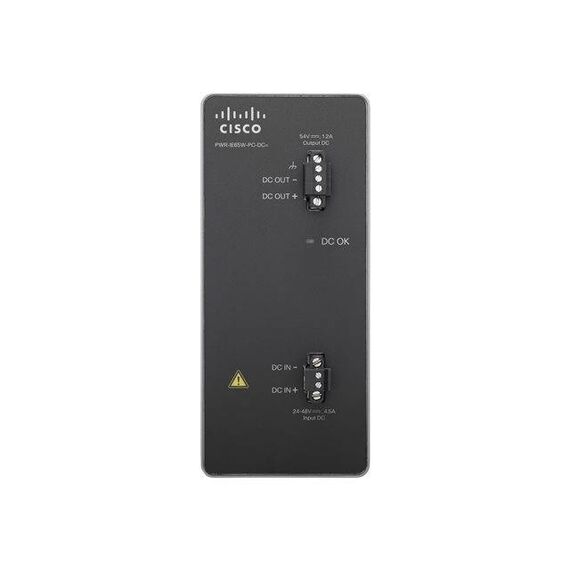

Cisco IE 3000 65W DC-Input Power Supply
The Cisco IE 3000 65W DC-input power supply is a power module for Cisco Industrial Ethernet 3000 Series PoE expansion modules. It is designed for installations that need a DC-input supply for a single supported expansion module, with fanless operation, DIN rail mounting and clear DC OK status indication.
Key Features
Purpose-built for IE 3000 Series PoE expansion modules
Supports one PoE expansion module
DC OK LED for status visibility
DIN rail installation for industrial enclosures
Designed for fanless, ambient-air cooling
Why Choose It
Choose this power module when you need a Cisco-approved DC-input supply for an Industrial Ethernet 3000 Series deployment with PoE expansion. It suits controlled industrial installations where DIN rail mounting and status indication are important.
Technical Specifications
| Manufacturer | Cisco |
| Manufacturer Part Number | PWR-IE65W-PC-DC= |
| Power Output | 65 W |
| Input Voltage | 18-60 VDC |
| Input Current | 4.3 A |
| Maximum PoE Expansion Modules Supported | 1 |
| Maximum PoE Ports Supported | 4 PoE ports or 2 PoE+ ports on the PoE expansion module |
| Supported Expansion Modules | Cisco IEM-3000-4PC and IEM-3000-4PC-4TC |
| Cooling | Fanless; relies on ambient air for cooling |
| Indicator | DC OK LED |
| Hazardous Locations Compliance | ANSI/ISA 12.12.01-2012; UL 60079-0, 5th Ed.; UL 60079-15, 3rd Ed.; CSA C22.2 No. 60079-0; CSA C22.2 No. 60079-15 |
| Warranty | Five-year limited warranty on Cisco industrial Ethernet power supplies |
Singular Expert Insight
The strongest fit for this unit is an Industrial Ethernet 3000 Series setup that needs a compact DC-input supply for PoE expansion. It is most relevant when you want simple DIN rail installation, fanless operation and a clear status indicator in an industrial environment.
Features - Cisco - PWR-IE65W-PC-DC=
More Details
Product Code
677AW42
EAN Code
0882658541285
Manufacturer
Cisco
