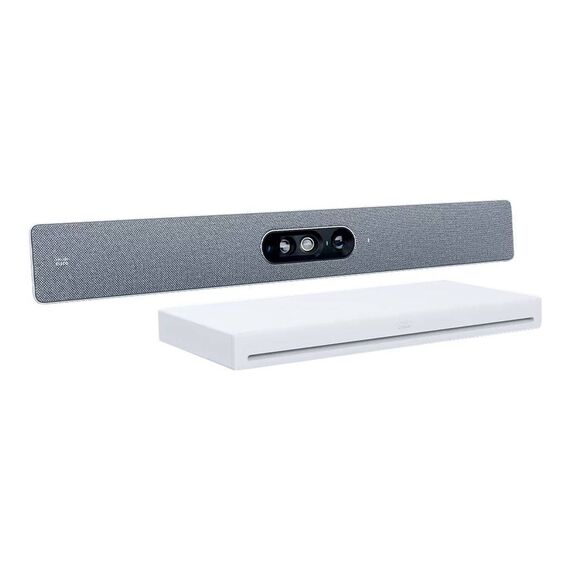

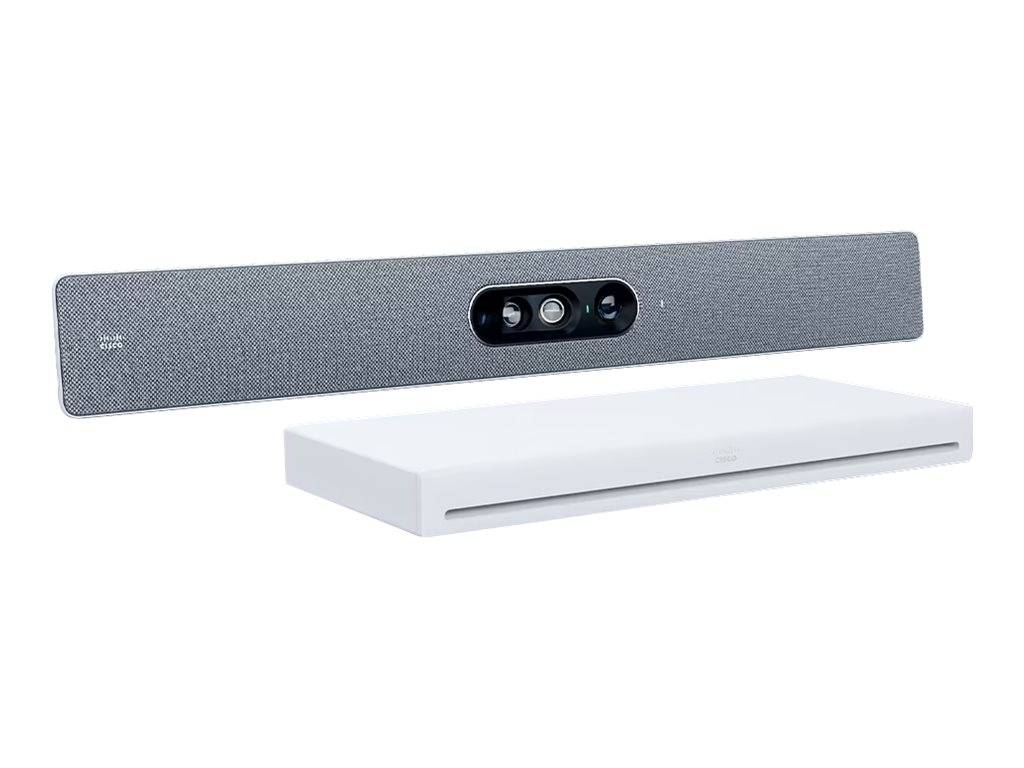

Cisco Webex Room Kit EQ / Video conferencing kit (Cisco Webex Quad Camera, Cisco Webex Codec EQ) / Certified for Microsoft Teams Rooms / first light | CS-KIT-EQ-K9

CS-KIT-EQ-K9
14,233.42
(16,937.77 inc. VAT)
Availability: 58 item(s)
Standard DeliveryStandard delivery within 4 to 8 business days.Express DeliveryExpress delivery within 2 to 3 business days.
Find similar
Delivery
Payment options
Product CodeCF99363 EAN Code0889728530644 ManufacturerCisco

Product Features

  • Equitable meetings
    Powerful, multi-lens camera delivers intelligent camera views and optimized layout composition, such as people Frames for equal view across meeting participants displayed (available in Webex and third-party platforms) and People Focus for intelligent layout composition (available in Webex meetings); automatic, ML-based noise removal reduces unwanted background noises while flexible microphone input and speaker output options help create a more natural meeting experience both for people in the room and remote participants.
  • Stunning presentations
    Triple screen support, dual content sources, single-cable USB passthrough for instant BYOD, software client-based video meetings and content sharing; 4K wireless sharing on Webex, Miracast, and Apple AirPlay; smart presenter tracking when Room Kit EQ is combined with the Cisco PTZ 4K Camera.
  • Multi-platform video conferencing
    The device can be configured to run on RoomOS for native Webex meetings and powerful third-party interoperability with Microsoft Teams, Zoom, and Google Meet; or deployed as a native Microsoft Teams Rooms system with the ability to still join full-featured Webex meetings.
  • Intelligent workspaces
    Presence detection for automatic "wake-up" when someone enters the room; people count for usage metrics and resource allocation; intuitive touch and voice controls for a better workspace experience; built-in environmental sensors in Room Navigator to promote safety and well-being; APIs and macros allow meeting personalization.
  • Flexible integration
    The Codec EQ allows for integrating with multiple cameras, third-party audio systems and intelligent microphones, touch controller, and scheduling display; tight integrations with leading displays to enhance user experience and drive energy savings.
  • Cloud first but not cloud-only
    Built for both cloud and on-premises deployment, protecting your investment. Room Kit EQ can be deployed as a fully managed solution in Control Hub offering a seamless cloud admin, monitoring, troubleshooting, and analytics experience.

Special Features

  • Equitable meetings
  • Stunning presentations
  • Multi-platform video conferencing
  • Intelligent workspaces
  • Flexible integration
  • Cloud first but not cloud-only

Product Specification

Device Type Video conferencing kit
Kit Content Cisco Webex Quad Camera, Cisco Webex Codec EQ
VoIP Protocols H.323, SIP
Voice Codecs G.711, G.722, G.729, G.722.1, AAC-LD, Opus
Video Codecs H.263, H.264, H.265
Quality of Service IEEE 802.1Q (VLAN), Differentiated Services (DiffServ), IEEE 802.1p
IP Address Assignment DHCP
Security IEEE 802.1X, H.235 v3
Network Protocols HTTP, DNS, HTTPS, NTP
Dimensions & Weight Details Camera - Width 95 cm Depth 10.3 cm Height 12 cm Weight 4.8 kg ¦ Codec - Width 47.3 cm Depth 20.2 cm Height 4.4 cm Weight 2.33 kg
Enclosure Colour First light
Modem Modem
Digital Signaling Protocol H.323, SIP, H.460.18, H.460.19, BFCP
Data Compression Protocol G.729, G.711, G.722, H.263, H.264, G.722.1
Features DTMF decoding
Video Input Video Input
Type Digital video camera (colour) - external
Interface Type HDMI
Digital Video Capture Resolution 1920 x 1080, 5056 x 3888
Video Modes 5K/60p
Digital Zoom 5
Features Automatic brightness adjustment, auto white balance, Auto Focus, Acoustic Echo Cancellation (AEC), Miracast connectivity, automatic group framing, speaker tracking, automatic people framing, 60 frame per second, F 2.0 lens aperture, AI-powered, 1/1.7 CMOS image sensor type, focus distance 1 m to infinity, 83° horizontal field of view (wide), 50° horizontal field of view (tele), group view mode, speaker view mode, frames mode, 4 x 20 megapixels image sensor
Audio Input Audio Input
Type 8-microphone array - integrated
Audio Output Audio Output
Type Speaker(s)
Frequency Response 100 - 20000 Hz
Networking Networking
Connectivity Technology Wireless, wired
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
Network / Transport Protocol NTP, DHCP, DNS
Features Quality of Service (QoS), Class of Service (CoS), URI Dialing, Network Timing Protocol (NTP), 2x2 MIMO technology, security slot (Kensington security lock compatible), DNS support, Wireless Screen Sharing, Cisco Expressway technology, Certificate Authority Proxy Function (CAPF), Manufacturer-Installed Certificates (MIC), Locally Significant Certificates (LSC)
Compliant Standards IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, X.509, IEEE 802.3bt
Expansion / Connectivity Expansion / Connectivity
Interfaces 1 x USB-C - 24 pin USB-C ¦ 3 x display / video - HDMI input - 19 pin HDMI Type A ¦ 3 x display / video - HDMI output - 19 pin HDMI Type A ¦ 1 x audio - output - mini-phone stereo 3.5 mm ¦ 1 x audio - output - RCA ¦ 4 x SuperSpeed USB 3.0 - 4 pin USB Type A ¦ 1 x USB - 5 pin Micro-USB Type A ¦ 1 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 4 x network - Ethernet 10Base-T/100Base-TX/1000Base-T (PoE++) - RJ-45
Miscellaneous Miscellaneous
Cables Included 1 x network cable
Mounting Kit Included
Included Accessories Wall mount
Software Certification Certified for Microsoft Teams Rooms
Compliant Standards FCC, RoHS, WEEE, FCC CFR47 Part 15 C, NRTL, Directive 2011/65/EU, Directive 2002/96/EU, EDID compatible, Directive 2014/35/EU, Directive 2014/30/EU, FCC CFR47 Part 15 E, Directive 2014/53/EU, CEC 2.0, FCC 47 CFR Part 15 B Class A
Power Power
Power Device Power adapter - external
Voltage Required AC 100-240 V (50/60 Hz)
Manufacturer Warranty Manufacturer Warranty
Service & Support Limited warranty - 90 days ¦ Limited warranty - advance hardware replacement - 10 days
Environmental Parameters Environmental Parameters
Min Operating Temperature 0 °C
Max Operating Temperature 35 °C
Humidity Range Operating 10 - 90% RH

Features - Cisco - CS-KIT-EQ-K9
