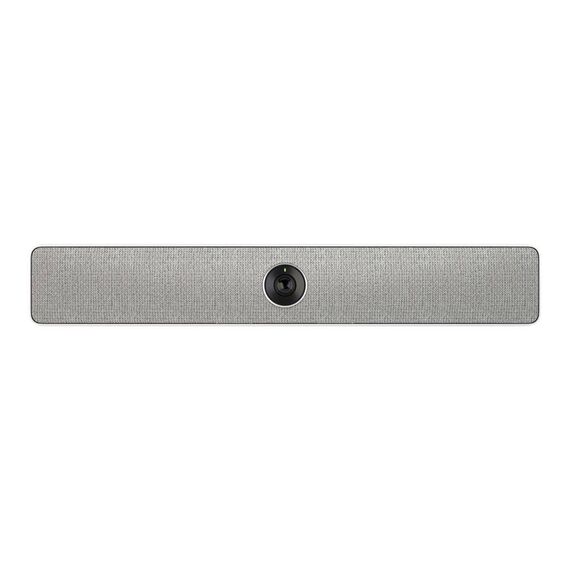

Cisco Webex Room USB / Video conferencing kit | CS-ROOM-USB-K9
CS-ROOM-USB-K9
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Special Features
- Brings intelligent views to smaller rooms with a discreet, integrated camera
- Great audio experience with integrated microphones and speakers
- Automatic noise suppression reduces disruptive sounds coming from the meeting room (e.g., typing, paper rustling)
- End-to-end security
- Add signage, backgrounds, or important company news to your screens during standby
Product Specification
| Device Type | Video conferencing kit |
| VoIP Protocols | H.323 |
| Voice Codecs | G.711, G.722, G.729, G.722.1, AAC-LD, Opus |
| Video Codecs | H.264, H.265, H.239 |
| Quality of Service | IEEE 802.1Q (VLAN), Differentiated Services (DiffServ), IEEE 802.1p |
| Network Protocols | HTTP, DNS, HTTPS, NTP |
| Dimensions & Weight Details | Main system - Width 50 cm Depth 7.7 cm Height 8.1 cm Weight 1.5 kg |
| Modem | Modem |
| Digital Signaling Protocol | SIP, H.245, H.460.18, H.460.19, BFCP |
| Data Compression Protocol | G.711, G.722, H.263, H.264, G.722.1 |
| Video Input | Video Input |
| Type | Digital video camera (colour) - integrated |
| Interface Type | HDMI |
| Digital Video Capture Resolution | 3840 x 2160 |
| Video Modes | 4K/1080p |
| Digital Zoom | 2 |
| Features | Face detection, automatic brightness adjustment, auto white balance, Auto Focus, 120° field of view |
| Video Output | Video Output |
| Type | Codec board - external |
| Supported Display Graphics | HDTV (1920x1080), UHD (3840 x 2160) |
| Digital Video Standard | High-Definition Multimedia Interface (HDMI) |
| Audio Input | Audio Input |
| Type | Microphones - integrated |
| Audio Output | Audio Output |
| Type | Speaker(s) |
| Audio Amplifier | Integrated |
| Output Power / Channel | 24 Watt |
| Frequency Response | 100 - 20000 Hz |
| Networking | Networking |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, Bluetooth 4.0, IEEE 802.11ac |
| Network / Transport Protocol | NTP, DHCP, DNS, HTTP, HTTPs |
| Features | DiffServ support, IPv6 support, Quality of Service (QoS), SSH support, IPv4 support, Class of Service (CoS), automatic gain control (AGC), 802.1x authentication, URI Dialing, CEC 2.0 support |
| Compliant Standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x audio / video - HDMI input - 19 pin HDMI Type A ¦ 2 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 1 x USB 2.0 ¦ 1 x USB-C - USB 2.0 |
| Miscellaneous | Miscellaneous |
| Cables Included | USB-C to USB-A cable ¦ Network cable ¦ HDMI cable |
| Mounting Kit | Included |
| Included Accessories | Remote control, wall mount, privacy cover |
| Compliant Standards | EMC, AES, RoHS, WEEE |
| Power | Power |
| Power Device | Power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 60.5 cm |
| Shipping Depth | 21.6 cm |
| Shipping Height | 32.6 cm |
| Shipping Weight | 3.2 kg |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 90 days |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 10 - 90% |
Features - Cisco - CS-ROOM-USB-K9
More Details
Product Code
677TK20
EAN Code
0889728276610
Manufacturer
Cisco
