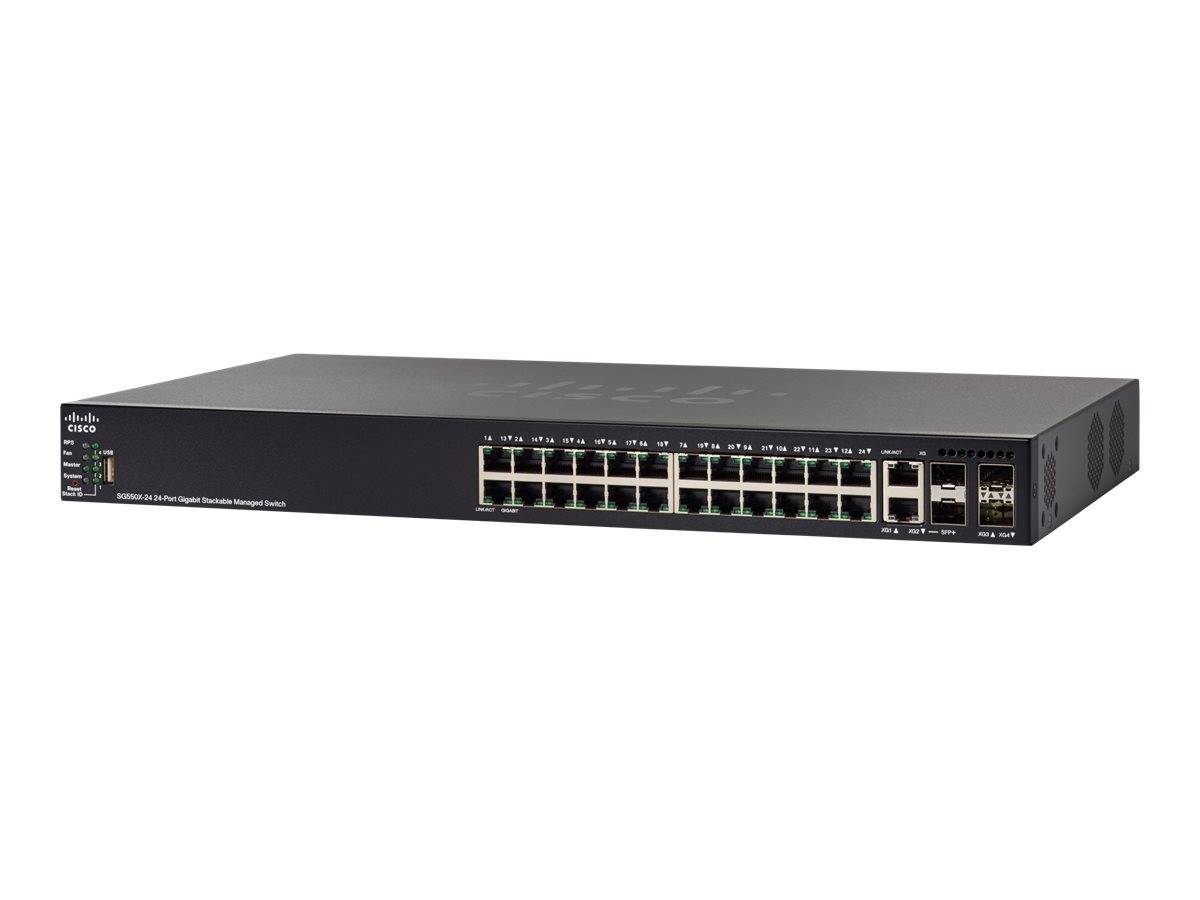

Cisco 550X Series SG550X-24 / Switch / L3 / Managed / 24 x 10/100/1000 + 2 x 10 Gigabit SFP+ (uplink) + 2 x combo 10GBase-T (uplink) / rack-mountable | SG550X-24-K9-EU
SG550X-24-K9-EU
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- ETHERNET PORT CONFIGURATION
24-port 10/100/1000, 4 x 10G uplinks (SFP+) - CONFIGURATION & CONTROL
Stackable (8 units), on-box WebUI, CLI, SNMP, Cisco FindIT Network Manager, PnP, Auto Smartports, auto-discovery, zero-touch deployment - L2+/L3 FEATURES
Static routing, QoS, Voice/Guest VLAN, GVRP, MSTP, IGMP Snooping, Time-based Access Control Lists - L2+/L3 FEATURES
Dynamic routing, RIP, VRRP, Policy-based Routing, IGMP querier, Time-based Access Control Lists, 802.1x, Web-based Authentication, IPv6 First Hop Security, Dynamic ARP Inspection - PEACE OF MIND
Limited-lifetime warranty, next-business-day replacement, one-year technical support, and free software fixes for the term of the warranty
Special Features
- Affordable 10 Gigabit Ethernet
- Superior reliability and resiliency
- Energy efficiency
Product Specification
| Device Type | Switch - 24 ports - L3 - Managed - stackable |
| Enclosure Type | Rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100/1000 + 2 x 10 Gigabit SFP+ (uplink) + 2 x combo 10GBase-T (uplink) |
| Performance | Forwarding performance (64-byte packet size): 95.23 Mpps ¦ Switching capacity: 128 Gbps |
| Capacity | VLANs supported: 4094 ¦ QoS hardware queues: 8 ¦ IPv4 routes (static): 7000 ¦ IPv6 routes (static): 7000 ¦ ACL rules: 3000 ¦ IP router interfaces: 256 |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | 9000 bytes |
| Max Units In A Stack | 8 |
| Routing Protocol | RIP-2, IGMPv2, IGMP, VRRP, IGMPv3, static IPv4 routing, static IPv6 routing, MLDv2, MLD, CIDR |
| Remote Management Protocol | SNMP 1, RMON, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI, SCP |
| Encryption Algorithm | MD5, SSL |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+ |
| Features | Flow control, DHCP support, BOOTP support, ARP support, IGMP snooping, Syslog support, DoS attack prevention, DiffServ support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Virtual Route Redundancy Protocol (VRRP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, Dynamic ARP Inspection (DAI), reset button, STP Root Guard, Uni-Directional Link Detection (UDLD), LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), Port Security, IP-MAC binding, DHCP client, Energy Efficient Ethernet, Management Information Base (MIB), Multicast VLAN Registration (MVR), Generic Attribute Registration Protocol (GARP), Generic VLAN Registration Protocol (GVRP), Denial of Service (DoS), 802.1x authentication, Type of Service (ToS), DiffServ Code Point (DSCP) support, 1.5MB packet buffer, IP source guard, Bridge protocol data unit (BPDU), Internet Control Message Protocol (ICMP) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3az |
| Processor | X ARM: 800 MHz |
| RAM | 512 MB |
| Flash Memory | 256 MB |
| Status Indicators | Port transmission speed, system, RPS (Redundant Power Supply), link/activity, fan |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 24 x 1000Base-T RJ-45 ¦ 4 x 10GBase-X SFP+ uplink ¦ 2 x 10GBase-T RJ-45 uplink ¦ 1 x console RJ-45 ¦ 1 x USB Type A |
| Power | Power |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 33.5 Watt |
| Miscellaneous | Miscellaneous |
| Cables Included | 1 x serial cable |
| Rack Mounting Kit | Included |
| MTBF | 375,790 hours |
| Compliant Standards | UL 60950, FCC Part 15 A, CSA 22.2 |
| Localisation | Europe |
| Dimensions & Weight | Dimensions & Weight |
| Width | 44 cm |
| Depth | 25.7 cm |
| Height | 4.4 cm |
| Weight | 3.27 kg |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - phone consulting - 1 year ¦ Technical support - web support - 1 year |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Min Storage Temperature | -20 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 10 - 90% (non-condensing) |
Features - Cisco - SG550X-24-K9-EU
More Details
Product Code
677KD90
EAN Code
0882658808722
Manufacturer
Cisco
